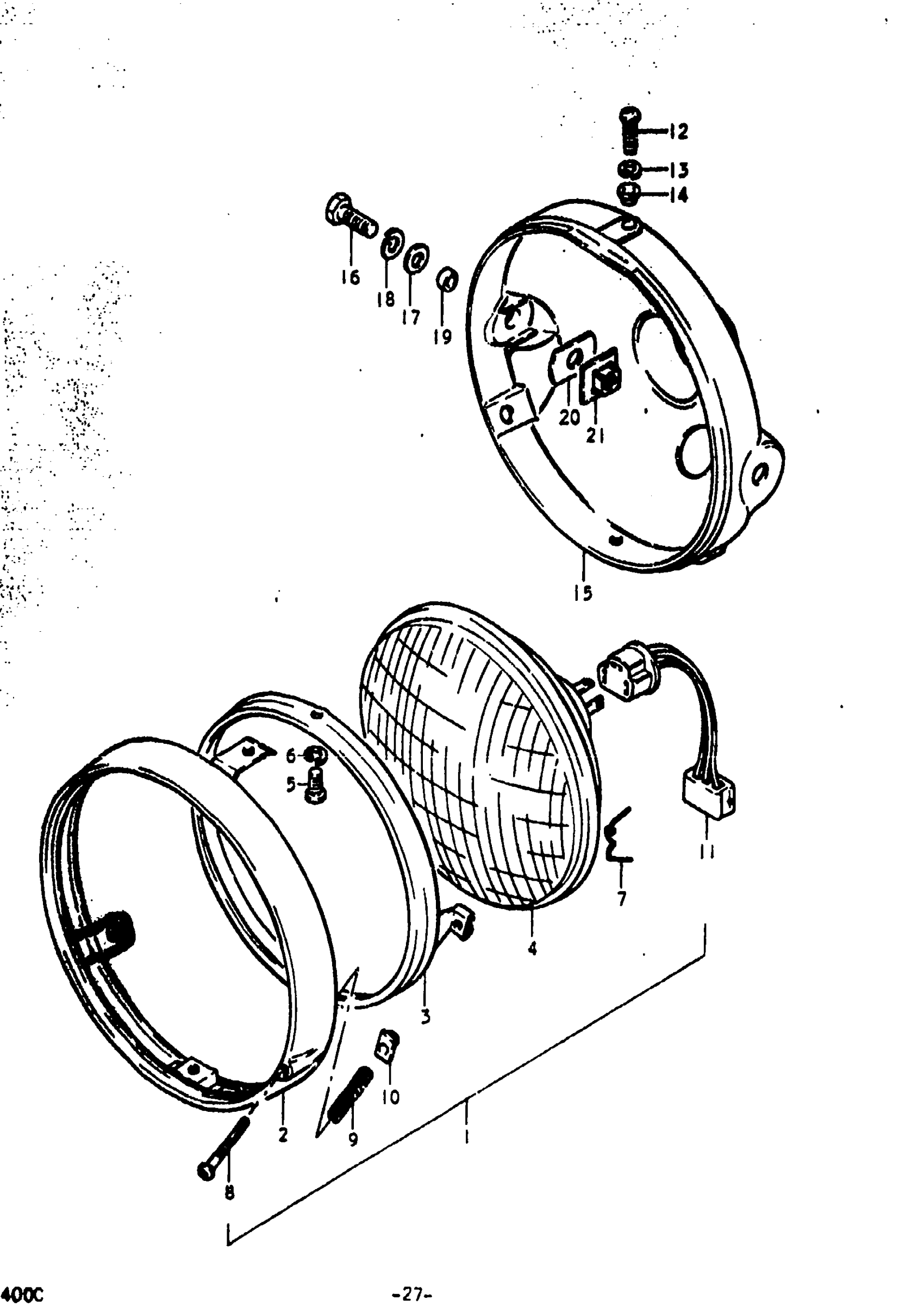

Suzuki GS400X (1978) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | C,XC; Includes Item(s) 2 - 11

35100-44611

Unavailable

2

RIM | C,XC

35111-44610

Unavailable

3

RING | C,XC

35127-33630

Unavailable

4

UNIT | C,XC; 12V, 50/35W

35121-44611

Unavailable

5

SCREW | C,XC

35136-29610

Unavailable

6

LOCK WASHER | C,XC This part replaces 08321-21058.

08321-0105A

$1.84

7

SPRING | C,XC

35172-33630

Unavailable

8

SCREW, ADJUSTING | C,XC

35151-33630

Unavailable

9

SPRING | C,XC

35154-33630

Unavailable

10

NUT | C,XC

35152-15611

$3.25

11

LEAD WIRE, HEADLAMP | C,XC This part replaces 36852-33630.

36853-30500

$11.63

12

SCREW | C,XC This part replaces 09125-05022.

09125-05115

$3.20

13

WASHER | C This part replaces 09162-05003.

09162-05002

$1.49

14

WASHER | C,XC

09169-06021

$2.36

15

HOUSING, HEADLAMP | XC

51811-44000-291

Unavailable

16

BOLT | C,XC

01204-08257

$1.96

17

WASHER | C,XC This part replaces 08322-11088.

08322-01087

$2.13

18

.LOCK WASHER | C,XC This part replaces 08321-21088.

08321-01087

$2.13

19

SPACER | C,XC This part replaces 09180-08030.

09180-08187

$2.65

20

CUSHION | C,XC This part replaces 09329-12002.

09329-12005

$2.32

21

PLATE | C,XC

51860-45000

$4.43
