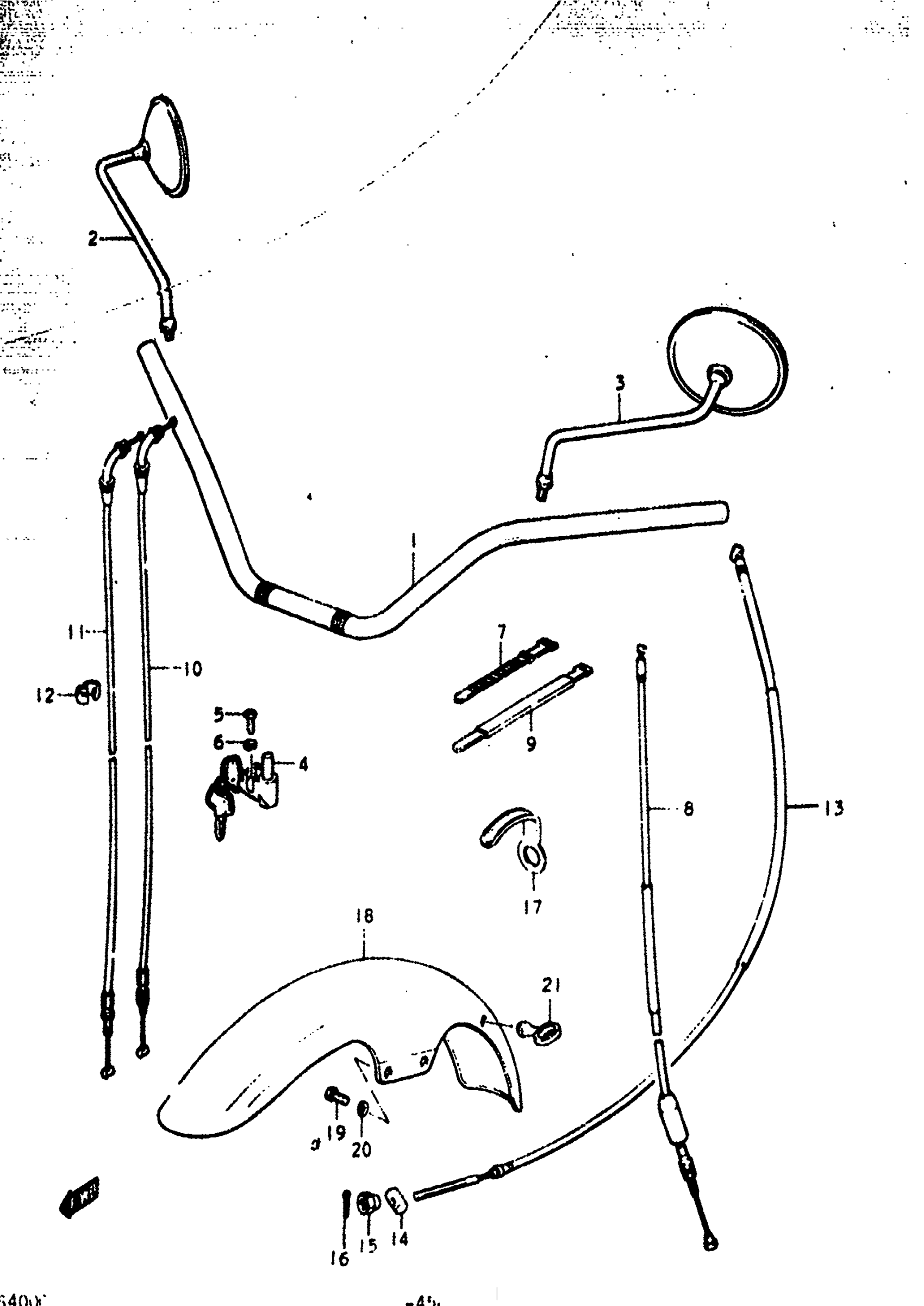

Suzuki GS400X (1978) HANDLEBAR - FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C,XC This part replaces 56111-44010.

56111-44011

Unavailable

2

MIRROR ASSY,RR | C,XC This part replaces 56500-45012.

56500-45014

$64.82

3

MIRROR ASSY,RR | C,XC This part replaces 56600-45012.

56600-45014

$64.82

4

LOCK ASSY, STEERING | C,XC This part replaces 51900-33810.

51900-33811

Unavailable

5

SCREW | C,XC This part replaces 02111-05257.

02112-05257

$1.49

6

LOCK WASHER | C,XC This part replaces 08321-21058.

08321-0105A

$1.84

7

BAND | C,XC; L:120

09407-12402

$3.04

8

CABLE,CLUTCH | C,XC; L:1150 This part replaces 58200-44000.

58200-11401

Unavailable

9

CLAMP | C,XC; L:180 This part replaces 09407-18301.

09407-18302

$2.28

10

CABLE,THROTTLE | C,XC; L:949 This part replaces 58300-44010.

58300-44X01

Unavailable

11

CABLE,THROTTLE | C,XC; L:940 This part replaces 58300-44020.

58300-44211

Unavailable

12

CLIP | C,XC

09408-00002

$2.30

13

CABLE, FRONT BRAKE | XC; L:1170

58110-44000

Unavailable

14

.PIN (13X18) | XC This part replaces 09209-13003.

09209-13018

$3.42

15

.NUT | XC This part replaces 09150-06001.

09150-06010

$3.10

16

.COTTER PIN | XC This part replaces 04111-20158.

04111-2015A

$1.49

17

CLAMP | XC

34991-18100

Unavailable

18

FENDER, FRONT | C,XC This part replaces 53110-44000.

53110-44010

Unavailable

19

PLUG, DRAIN | C,XC This part replaces 01107-08168.

01500-0816B

$2.50

20

.LOCK WASHER | C,XC This part replaces 08321-21088.

08321-01087

$2.13

21

GUIDE, METER CABLE | C,XC This part replaces 58621-21202.

58621-21204

$6.68
