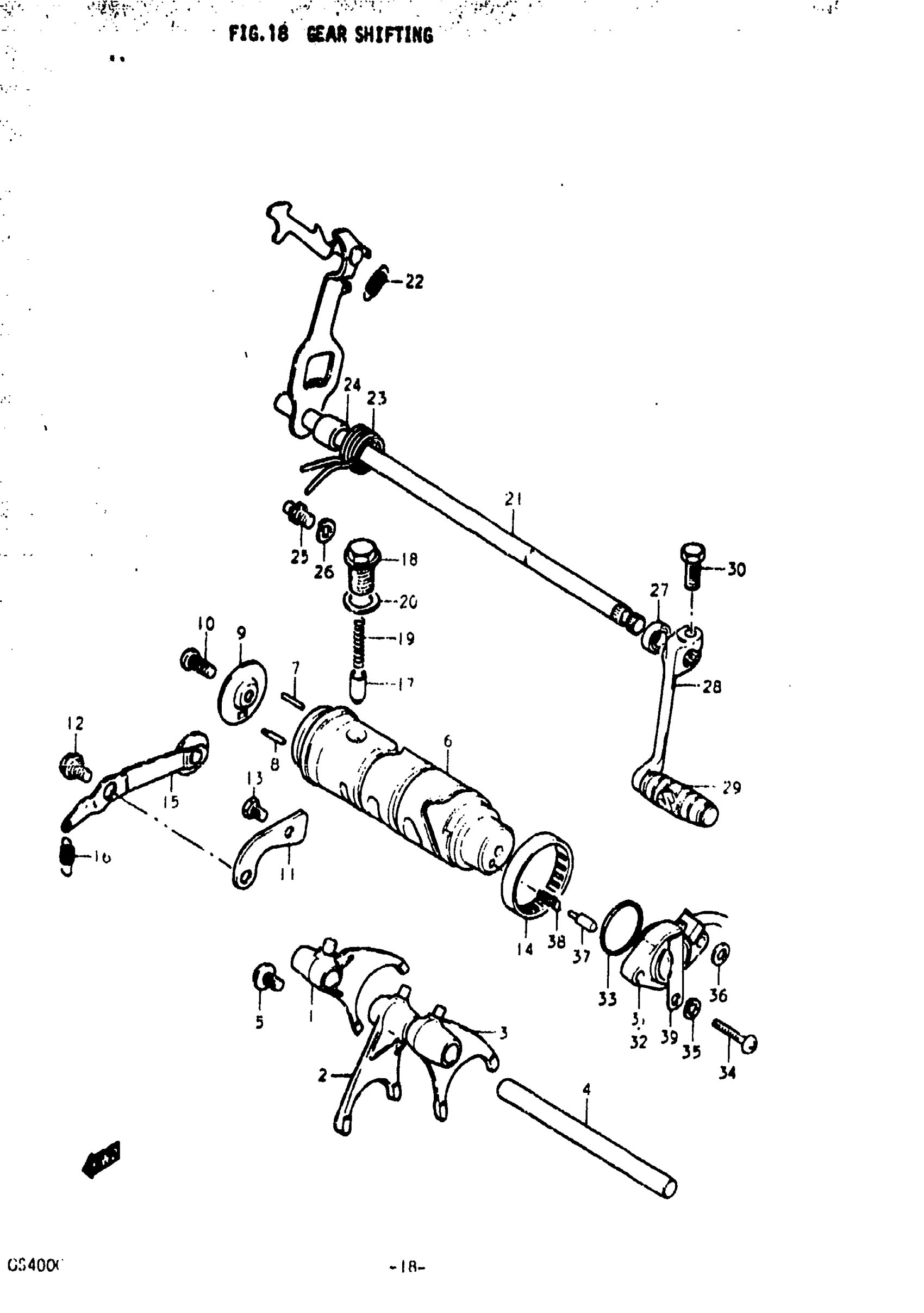

Suzuki GS400X (1978) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1 | C,XC This part replaces 25211-44000.

25211-44001

Unavailable

2

FORK, GEAR SHIFTING NO.2 | C,XC This part replaces 25221-44000.

25221-44001

Unavailable

3

FORK, GEAR SHIFTING NO.3 | C,XC

25231-44000

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 | C,XC This part replaces 25411-31000.

25411-18900

$23.07

5

SCREW | C,XC

02142-06108

$2.45

6

CAM, GEAR SHIFTING | C,XC

25311-44000

Unavailable

7

PIN | C,XC

09261-04001

$1.72

8

PIN | C,XC

09209-04013

Unavailable

9

HOLDER, DRIVE PIN | C,XC

25322-44000

Unavailable

10

SCREW | C,XC This part replaces 02112-06168.

02112-06167

$1.49

11

GUIDE, CAM | C,XC This part replaces 25341-44000.

25341-33300

Unavailable

12

BOLT | C,XC This part replaces 09111-06019.

09111-06054

$3.70

13

BOLT | C,XC This part replaces 01107-06128.

01500-06127

$1.97

14

BEARING | C,XC

09263-40001

$29.53

15

STOPPER, CAM NO.1 | C,XC

25350-44000

Unavailable

16

SPRING | C,XC

09443-09007

$2.56

17

STOPPER, SELECT CAM | C,XC This part replaces 25351-18000.

25351-39300

$10.23

18

HOLDER, STOPPER | C,XC This part replaces 25352-11000.

25352-11010

$7.22

19

SPRING | C,XC

09440-05018

$1.84

20

GASKET | C,XC

09168-14004

$1.83

21

SHAFT, GEAR SHIFTING | C,XC

25510-44000

Unavailable

22

SPRING | C,XC

09443-07013

$2.07

23

SPRING | C,XC

09444-26017

$4.60

24

SPACER | C,XC; 12x20x15.3

09180-17068

Unavailable

25

STOPPER, ARM | C,XC This part replaces 25671-01000.

25671-01011

$4.48

26

.LOCK WASHER | C,XC This part replaces 08321-21088.

08321-01087

$2.13

27

OIL SEAL (12X22X9) | C,XC This part replaces 09285-12002.

09285-12006

$6.32

28

LEVER ASSY, GEAR SHIFTING | C,XC; Includes Item(s) 29

25600-44000

Unavailable

29

.RUBBER,GEAR SHIFT PEDAL | C,XC This part replaces 25652-16500.

25652-16510

$3.74

30

BOLT, REAR | C,XC This part replaces 01107-08208.

01500-08207

$2.53

31

BODY, SWITCH | C This part replaces 37720-45010.

37720-45100

$101.35

32

BODY, GEAR SHIFTING SWITCH | XC

37720-44600

Unavailable

33

O RING (D:2.4,ID:26.2) | C,XC This part replaces 09280-26003.

09280-26005

$2.30

34

SCREW | C,XC This part replaces 02111-05207.

02112-05207

$1.97

35

LOCK WASHER | C,XC This part replaces 08321-21058.

08321-0105A

$1.84

36

WASHER | C,XC This part replaces 08322-21058.

08322-01057

$2.13

37

CONTACT | C,XC

09209-05011

$2.20

38

SPRING | C,XC

09440-04010

$1.54

39

CLAMP, GENERATOR LEAD WIRE | C,XC

31497-44000

Unavailable
