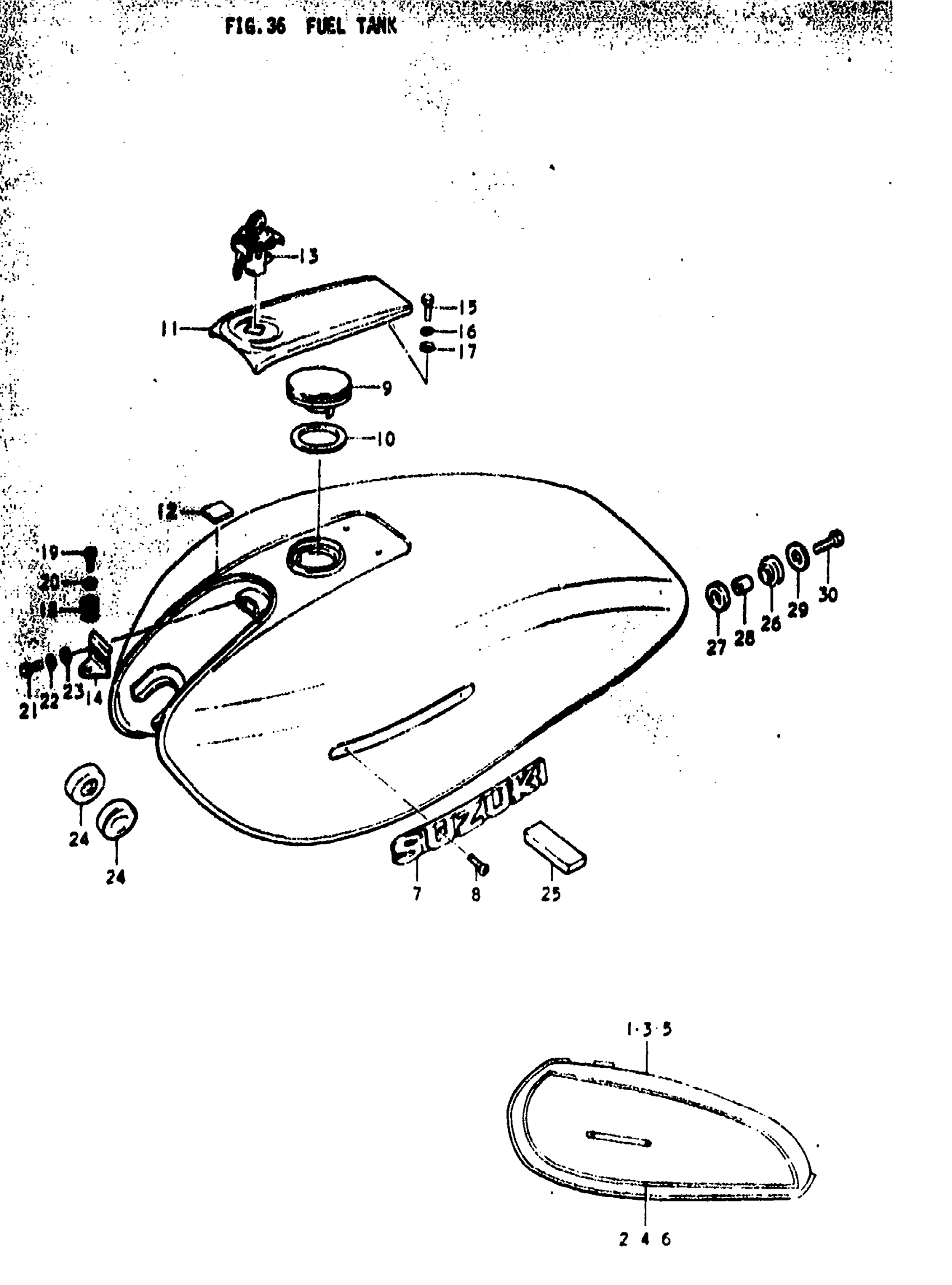

Suzuki GS400X (1978) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL | C; Includes Item(s) 2 This part replaces 44110-44010-03E.

44110-44000-737

Unavailable

2

TAPE SET | C

68100-44810-63W

Unavailable

3

TANK, FUEL | C; Includes Item(s) 4 This part replaces 44110-44010-05N.

44110-44000-737

Unavailable

4

TAPE SET | C

68100-44810-63X

Unavailable

5

TANK, FUEL | XC; Includes Item(s) 6 This part replaces 44110-44010-05J.

44110-44000-737

Unavailable

6

TAPE SET | XC

68100-44810-63Y

Unavailable

7

EMBLIM | C

68111-45010

$24.36

7

EMBLEM | XC

68111-45000

$25.03

8

SCREW | C,XC This part replaces 09127-03002.

02122-0306B

$2.26

9

CAP FUEL TANK | C,XC This part replaces 44210-23300.

44200-23810

$49.39

10

GASKET | C,XC

85413-70000

$4.40

11

COVER, FUEL TANK FRONT | C,XC This part replaces 44270-44002.

44270-44003

Unavailable

12

CUSHION | C,XC This part replaces 44276-37001.

44276-37002

$3.12

13

LOCK ASSY, FRONT COVER | C,XC

44280-37010

$58.13

14

TANK FR COVER H | C,XC This part replaces 44290-37001.

44290-3700V

Unavailable

15

BOLT | C,XC This part replaces 01112-05108.

01500-0510B

$1.80

16

LOCK WASHER | C,XC This part replaces 08321-21058.

08321-0105A

$1.84

17

WASHER | C,XC This part replaces 08322-21058.

08322-01057

$2.13

18

SPRING | C,XC

09446-17001

$2.84

19

SCREW | C,XC This part replaces 02112-05108.

02112-05107

$1.49

20

LOCK WASHER | C,XC This part replaces 08321-21058.

08321-0105A

$1.84

21

BOLT | C,XC This part replaces 01112-05108.

01500-0510B

$1.80

22

LOCK WASHER | C,XC This part replaces 08321-21058.

08321-0105A

$1.84

23

WASHER | C,XC This part replaces 08322-11058.

08322-01057

$2.13

24

CUSHION | C,XC This part replaces 09329-10007.

09329-10026

$2.23

25

CUSHION FUEL TA | C,XC This part replaces 09329-01005.

09329-01008

$4.77

26

CUSHION, REAR NO. 2 | C,XC

09320-12013

$2.60

27

CUSHION, REAR NO. 3 | C,XC

09320-12017

$2.18

28

SPACER | C,XC

09180-08067

$2.41

29

WASHER, EXHAUST SUPPORT | C,XC; 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

30

BOLT | C,XC This part replaces 01107-08308.

01500-08307

$3.04
