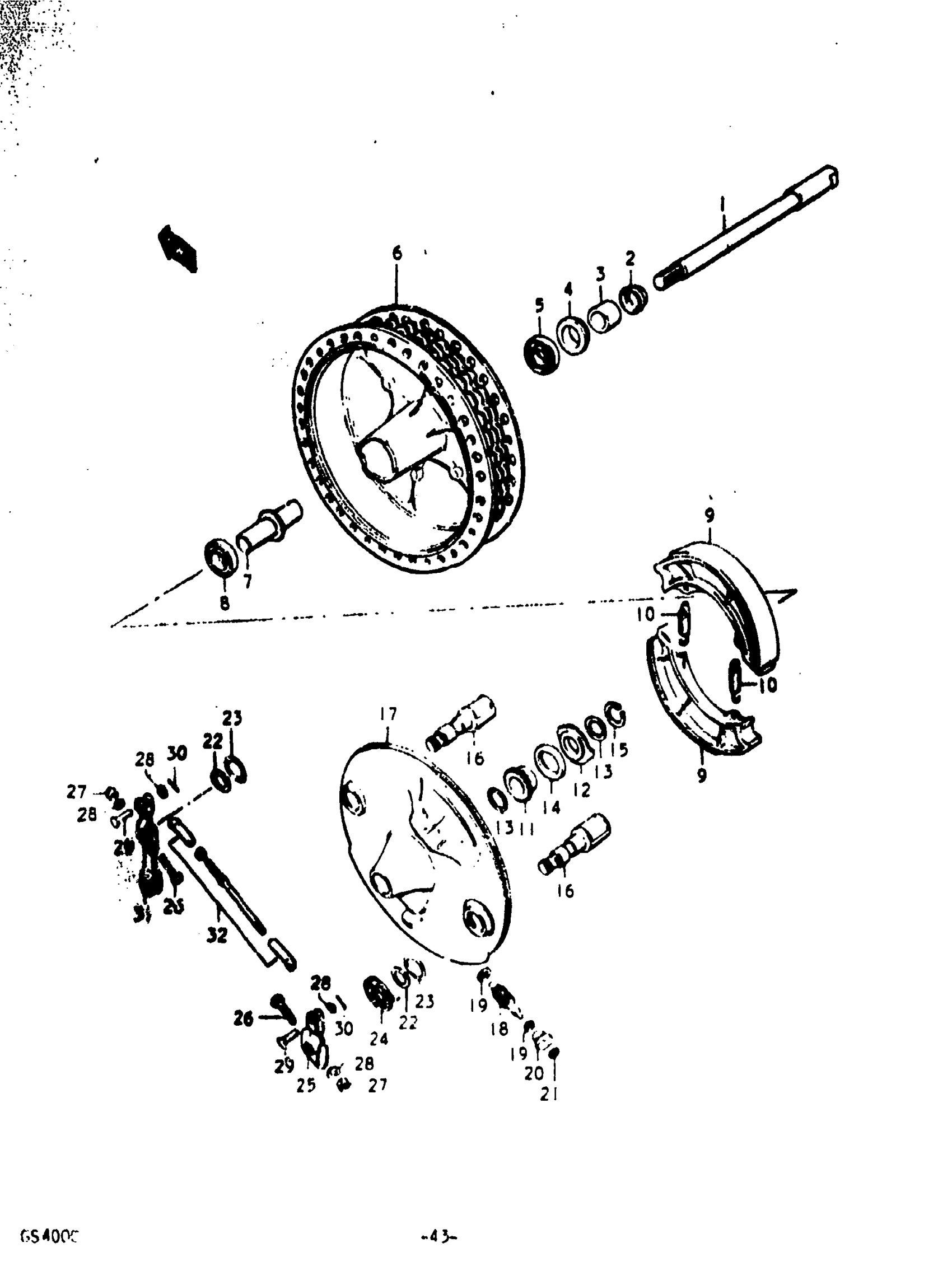

Suzuki GS400X (1978) FRONT HUB (GS400XC) Diagram

#

Description
Price

1

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

2

COVER, DUST

54892-11000

Unavailable

3

SPACER | 15x22x25.4

09180-15001

Unavailable

4

OIL SEAL | 2Wx33x6

09284-22001

Unavailable

5

BEARING

08113-60020

$16.01

6

DRUM, HUB

54110-15000

Unavailable

7

SPACER, BEARING

54730-11000

Unavailable

8

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

9

SHOE SET,BRAKE This part replaces 54410-15000.

54400-15820

Unavailable

10

SPRING, BRAKE SHOE

55420-30000

$4.48

11

GEAR, SPEEDOMETER (NT:24) This part replaces 54611-36000.

54611-36001

Unavailable

12

DRIVER This part replaces 54660-11030.

54660-11031

$12.67

13

WASHER | 22.5x27x1

09160-22001

$2.47

14

SEAL,OIL(26X38X | 26x38x4 This part replaces 09285-26001.

09285-26005

Unavailable

15

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

16

CAM, BRAKE This part replaces 54440-11003.

64440-38A00

Unavailable

17

PANEL

54210-15002

Unavailable

18

PINION, SPEEDOMETER

54621-11000

Unavailable

19

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

20

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

21

OIL SEAL | 4.8x10x3

09289-06001

$4.58

22

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

23

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

24

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

25

LEVER, BRAKE CAM SECOND

54461-11000

Unavailable

26

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

27

.NUT This part replaces 08310-11068.

08310-00067

$2.13

28

WASHER This part replaces 08322-21068.

08322-01067

$2.13

29

PIN

09200-06001

Unavailable

30

PIN This part replaces 04111-12108.

04111-1210A

$1.50

31

LEVER, BRAKE CAM FIRST

54450-11000

Unavailable

32

BRAKE LEVER ROD SET

54400-18840

Unavailable
