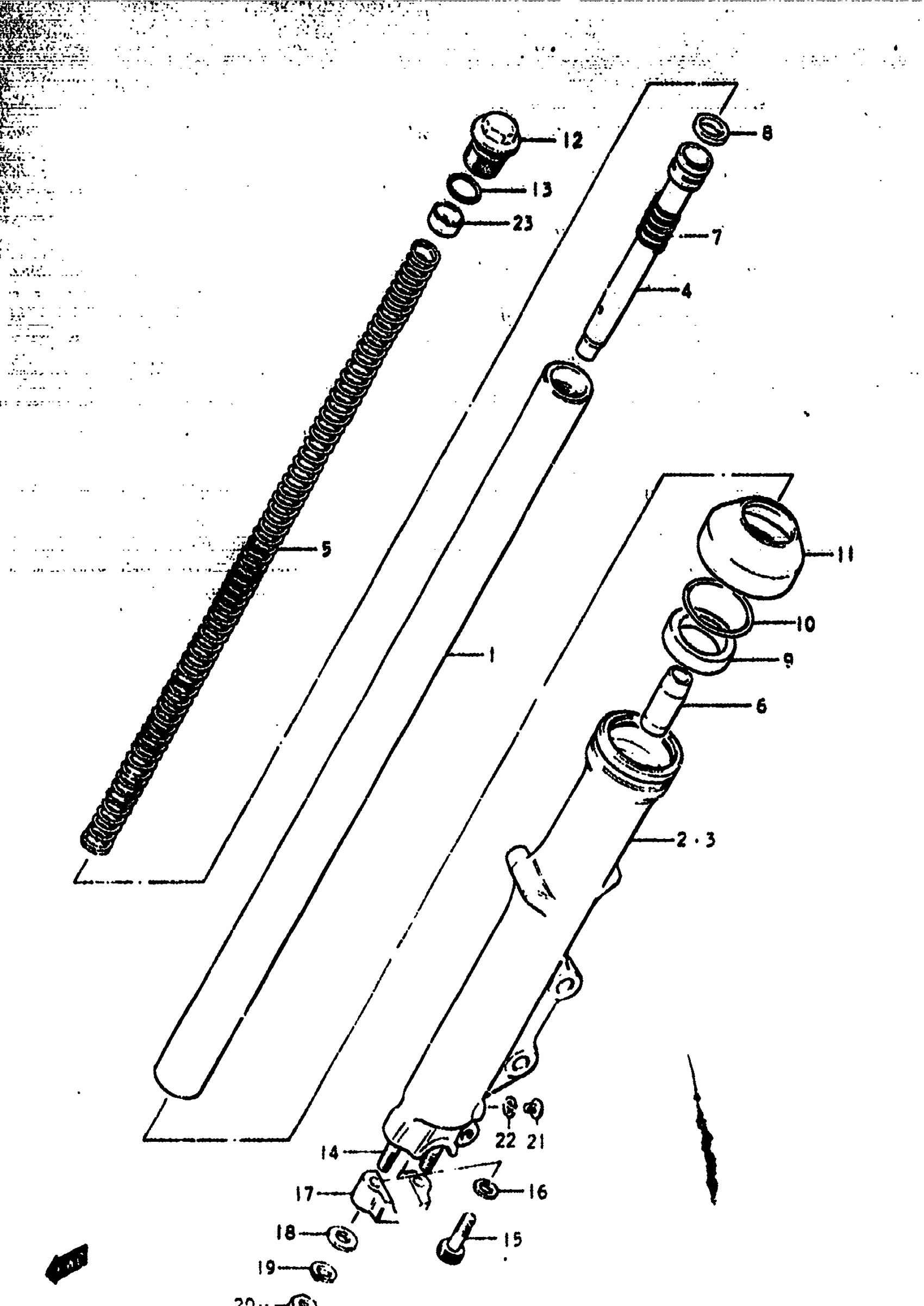

Suzuki GS400X (1978) FRONT FORK Diagram

#

Description
Price

0

DUMPER ASSY, FRONT FORK RH | C,XC

51103-44031

Unavailable

0

DUMPER ASSY, FRONT FORK LH | C,XC; Includes Item(s) 1 - 23 This part replaces 51104-44030.

51104-44032

Unavailable

1

INNER TUBE | C,XC

51110-44030

Unavailable

2

OUTER TUBE, LH | C,XC This part replaces 51141-44030.

51140-44031

Unavailable

3

OUTER TUBE, RH | C,XC This part replaces 51131-44031.

51130-44033

Unavailable

4

CYLINDER | C,XC This part replaces 51146-44031.

51146-38300

Unavailable

5

NO DESCRIPTION AVAILABLE | C,XC This part replaces 51171-44030.

51171-11500

Unavailable

6

PIECE, OM LOCK | C,XC

51195-44030

Unavailable

7

SPRING | C,XC

51177-36030

Unavailable

8

RING, PISTON | C,XC

51196-33130

$8.12

9

OIL SEAL | C,XC This part replaces 51153-44030.

51153-02B00

$20.06

10

RING, OIL SEAL STOPPER | C,XC This part replaces 51156-33130.

51156-02B00

$5.36

11

DUST SEAL | C,XC This part replaces 51571-33131.

51571-37310

$20.15

12

BOLT | C,XC This part replaces 51351-33131.

51351-33130

Unavailable

13

O RING | C,XC

51181-31030

$4.37

14

BOLT,STUD | C,XC This part replaces 01421-08258.

01421-0825A

$2.03

15

BOLT | C,XC This part replaces 51147-31030.

51147-48130

$4.34

16

O RING | C,XC This part replaces 51148-31030.

51148-36011

$3.56

17

HOLDER, AXLE | C,XC

51132-31030

Unavailable

18

WASHER | C,XC This part replaces 08322-21088.

08322-01087

$2.13

19

.LOCK WASHER | C,XC This part replaces 08321-21088.

08321-01087

$2.13

20

NUT | C,XC This part replaces 08310-12088.

08310-00087

$2.13

21

SCREW | C,XC This part replaces 02111-04067.

02112-0406B

$1.55

22

GASKET | C,XC

51183-33030

Unavailable

23

SPACER, SPRING | C,XC

51176-44030

Unavailable
