Partiron

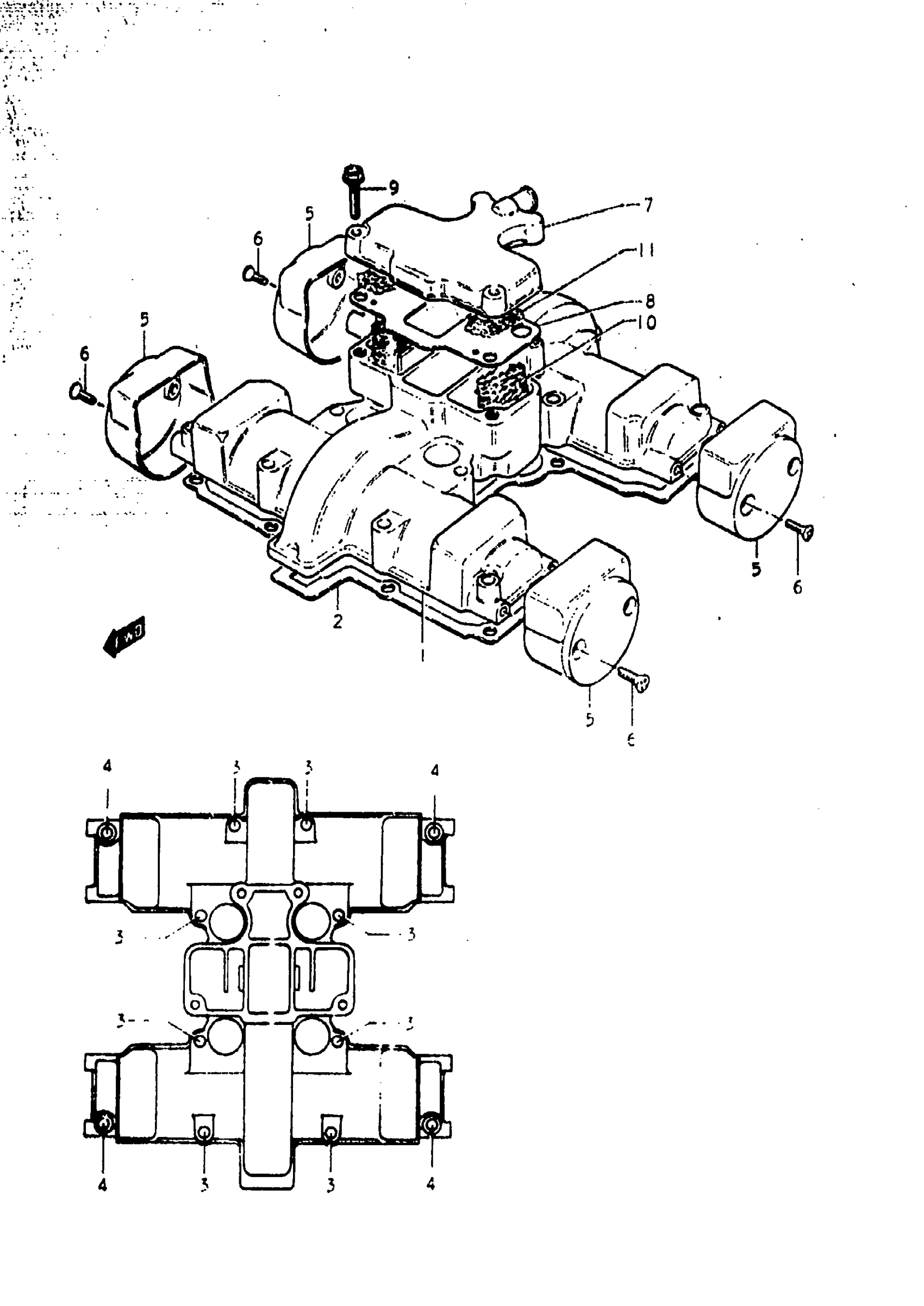

Suzuki GS400X (1978) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD | C,XC

11171-44000

Unavailable

2

GASKET,CYL HEAD | C,XC This part replaces 11173-44001.

11173-44005

$39.62

3

BOLT | C,XC This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT | C,XC This part replaces 01517-06308.

01550-06307

$2.69

5

CAP, CYLINDER HEAD COVER | C,XC

11174-44000

Unavailable

6

SCREW | C,XC This part replaces 02132-05128.

02122-05127

$1.93

7

NO DESCRIPTION AVAILABLE | C,XC This part replaces 11176-45000.

11176-45011

Unavailable

8

GASKET,BRTHR CV | C,XC This part replaces 11177-45000.

11177-45000-H17

Unavailable

9

BOLT | C,XC This part replaces 01517-06258.

01550-06257

$2.30

10

SEPARATOR,OIL B | C,XC; 34x110 This part replaces 11186-45000.

11186-45001

Unavailable

11

SEPARATOR,OIL B | C,XC; 35x68 This part replaces 11187-45000.

11187-45001

Unavailable
