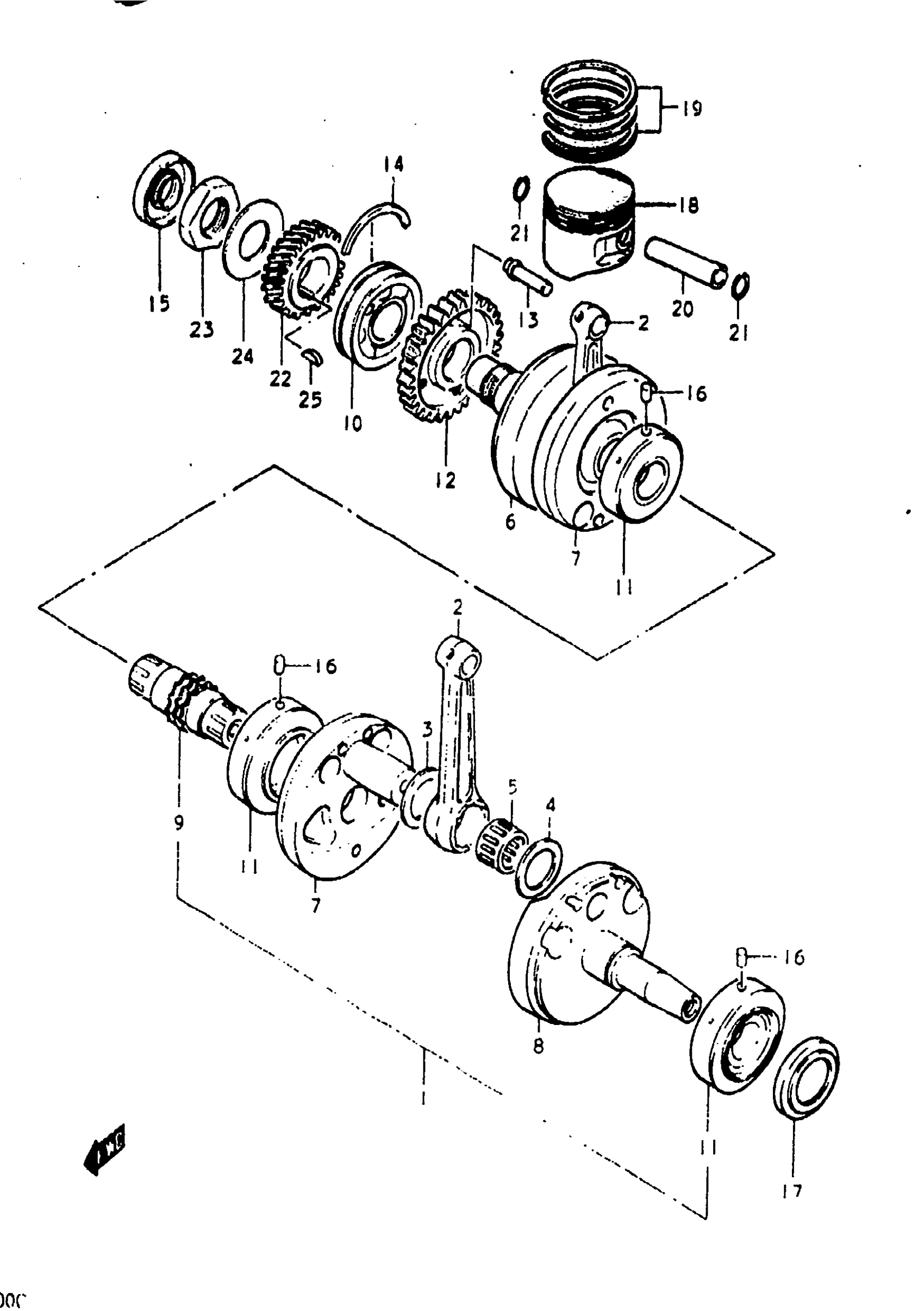

Suzuki GS400X (1978) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | C,XC; Includes Item(s) 2 - 13

12200-44003

Unavailable

2

ROD, CONNECTING | C,XC

12161-44001

Unavailable

3

WASHER | C,XC; 28x48x2

09160-28009

Unavailable

4

WASHER | C,XC; 28x46x1

09160-28010

Unavailable

5

BEARING | C,XC

09263-28010

Unavailable

6

CRANKSHAFT, RH | C,XC

12220-44001

Unavailable

7

WEB, CRANK | C,XC

12230-44002

Unavailable

8

CRANKSHAFT, LH | C,XC

12261-44001

Unavailable

9

SHAFT, TINING CHAIN DRIVE | C,XC

12281-44000

Unavailable

10

BEARING | C,XC

09262-30033

Unavailable

11

BEARING | C,XC This part replaces 09264-32002.

09264-32009

$201.55

12

GEAR, CRANK BALANCER DRIVE | C,XC; NT:46

12661-44001

Unavailable

13

PIN | C,XC

09209-10014

Unavailable

14

C RING | C,XC

09390-72004

Unavailable

15

OIL SEAL, RH | C,XC

09283-25062

Unavailable

16

PIN | C,XC

04221-07129

$1.86

17

OIL SEAL, STARTER CLUTCH GEAR | C; 48x60x8 This part replaces 09289-48001.

09289-48002

$10.77

18

PISTON (STD) | C,XC This part replaces 12111-45001.

12111-45002

Unavailable

18

NO DESCRIPTION AVAILABLE | C,XC; OS:0.5 This part replaces 12111-45701.

12103-45820-050

Unavailable

18

NO DESCRIPTION AVAILABLE | C,XC; OS:1.0 This part replaces 12111-45711.

12103-45820-100

Unavailable

19

PISTON RING SET (STD) | C,XC This part replaces 12100-45811.

12140-45013

Unavailable

19

PISTON RING SET (OS:0.5) | C,XC; OS:0.5 This part replaces 12100-45821.

12140-45013-050

Unavailable

19

PISTON RING SET (OS:1.0) | C,XC; OS:1.0 This part replaces 12100-45831.

12140-45013-100

Unavailable

20

PIN, PISTON | C,XC

12151-29001

$13.92

21

SNAP RING | C,XC This part replaces 09381-16002.

09381-16001

$1.67

22

GEAR, PRIMARY DRIVE | C,XC; NT:28

21111-44000

Unavailable

23

NUT | C,XC This part replaces 09140-28001.

09140-28003

$6.15

24

WASHER | C,XC

09164-28001

Unavailable

25

KEY | C,XC

08341-31059

$2.48
