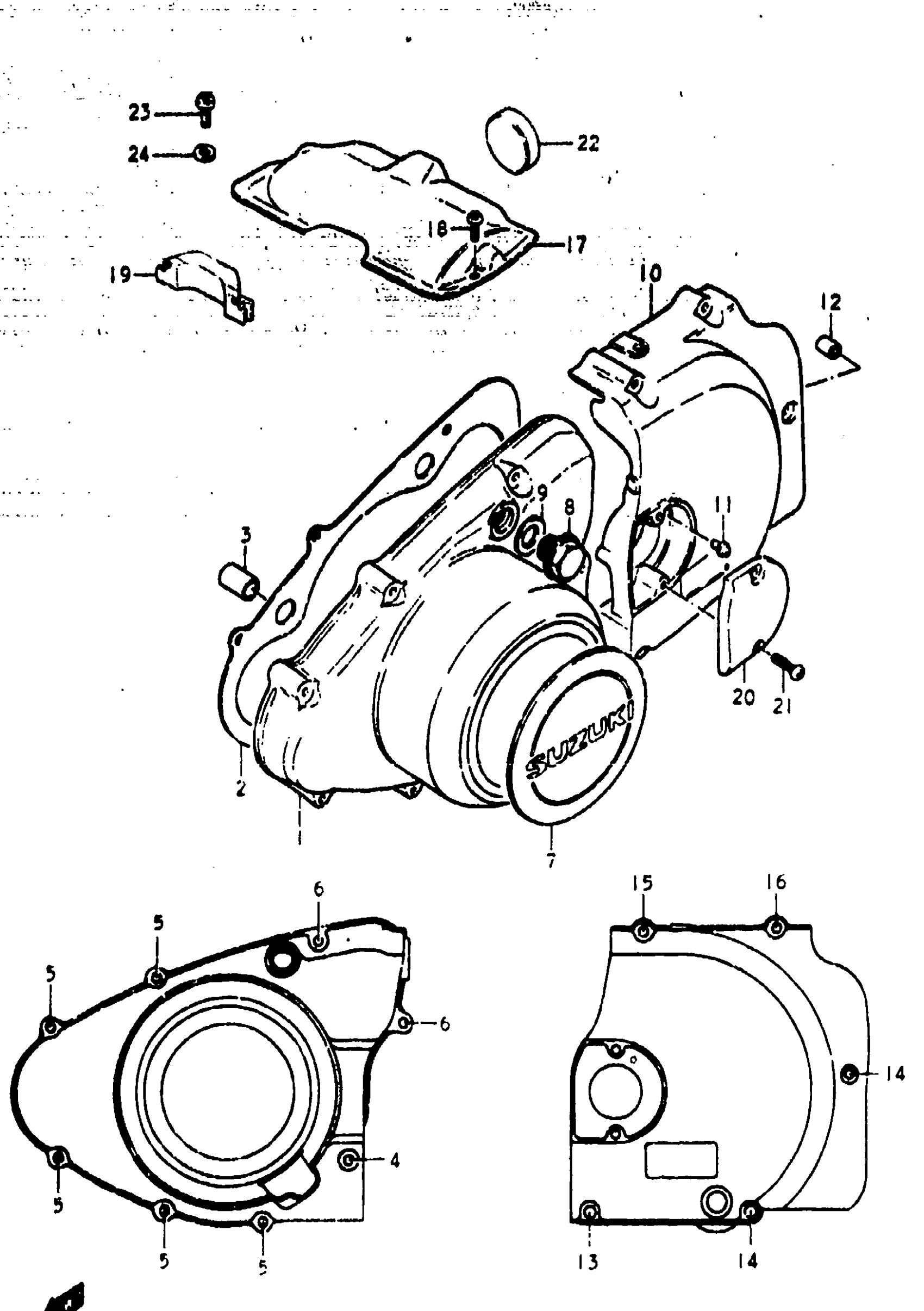

Suzuki GS400X (1978) CRANKCASE LH COVER Diagram

#

Description
Price

1

COVER, GENERATOR | C,XC

11351-44000

Unavailable

2

GASKET,MAGNETO | C,XC This part replaces 11483-44000.

11483-44001

Unavailable

3

PIN | C,XC This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X40) | C,XC This part replaces 02112-06408.

02112-06407

$1.78

5

SCREW | C,XC This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW | C,XC

02112-06307

$1.97

7

EMBLEM | C,XC This part replaces 68233-45000.

68233-45200

$18.50

8

PLUG | C,XC This part replaces 09247-14012.

09247-14026

$3.76

9

GASKET | C,XC

09168-14004

$1.83

10

ENGINE SPROCKET COVER SET | C,XC; Includes Item(s) 11

11300-44820

Unavailable

11

NIPPLE, GREASE | C,XC

08351-11009

$7.51

12

PIN | C,XC

04211-09129

$1.65

13

SCREW | C,XC

02112-06657

$2.62

14

SCREW | C,XC This part replaces 02112-06608.

02112-06607

$2.57

15

6X50 CROSS SCRE | C,XC This part replaces 02112-06508.

02112-06507

$1.99

16

SCREW | C,XC

02112-06307

$1.97

17

NO DESCRIPTION AVAILABLE | C,XC This part replaces 11382-44001.

11382-44002

Unavailable

18

SCREW | C,XC This part replaces 02112-05088.

02112-05087

$1.49

19

GROMMET | C

11498-44000

Unavailable

20

CAP, CLUTCH RELEASE | C,XC

11387-44000

Unavailable

21

SCREW | C,XC This part replaces 02112-05168.

02112-05167

$1.97

22

PLUG | XC This part replaces 09241-30001.

09241-30003

$5.97

23

SCREW | XC This part replaces 02112-06108.

02112-06107

$1.49

24

GASKET | XC

09168-06001

$1.49
