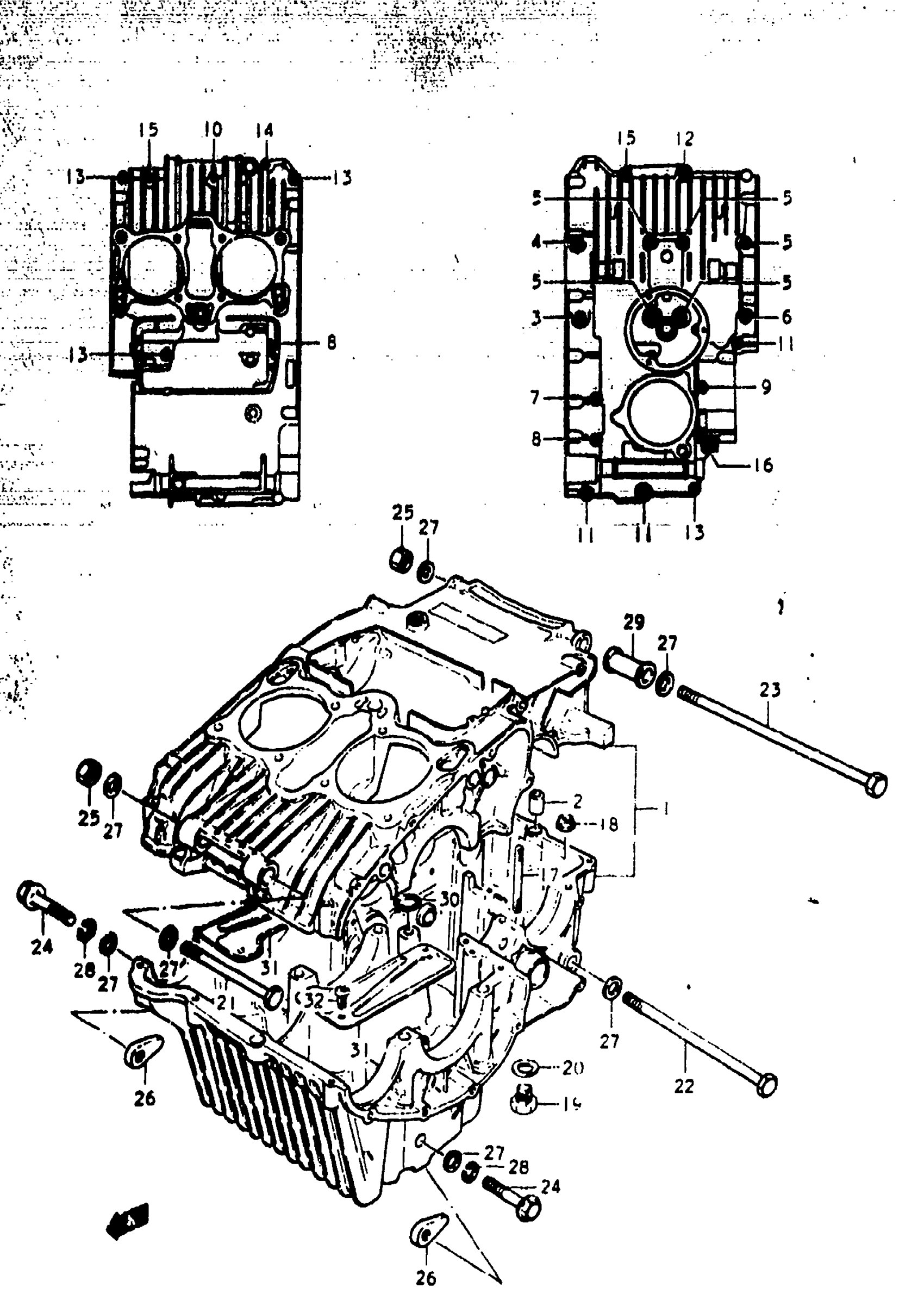

Suzuki GS400X (1978) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | C,XC; Includes Item(s) 2 - 18

11300-44812

Unavailable

2

PIN | C,XC This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT, UPPER | C,XC; 8x115 This part replaces 09103-08025.

09103-08098

$3.29

4

BOLT | C,XC This part replaces 01517-08958.

01550-08957

$5.37

5

BOLT | C,XC This part replaces 01517-08908.

01550-08907

$5.18

6

BOLT | C,XC This part replaces 01517-08858.

01550-0885B

Unavailable

7

BOLT (6X115) | C,XC; 6x115 This part replaces 09103-06027.

09103-06052

$4.68

8

BOLT | C,XC This part replaces 01517-06908.

01550-06907

$4.60

9

BOLT | C,XC This part replaces 01517-06708.

01550-06707

$4.30

10

BOLT | C,XC This part replaces 01517-06658.

01550-06657

$4.17

11

BOLT | C,XC This part replaces 01517-06608.

01550-06607

$4.17

12

BOLT (CHROME) | C,XC This part replaces 01517-06458.

01550-06457

$2.69

13

BOLT | C,XC This part replaces 01517-06408.

01550-06407

$2.69

14

BOLT | C,XC This part replaces 01517-06358.

01550-06357

$2.77

15

BOLT | C,XC This part replaces 01517-06308.

01550-06307

$2.69

16

BOLT, MUF SPRT,RR | C,XC This part replaces 01517-08458.

01550-08457

$4.00

17

BOLT,STUD | C,XC This part replaces 01421-06408.

01421-0640A

$2.38

18

NUT | C,XC This part replaces 09159-06017.

08319-31067

$2.03

19

PLUG (MAGNETO) | C,XC This part replaces 09247-14001.

09247-14002

$5.24

20

GASKET | C,XC

09168-14004

$1.83

21

BOLT 10X125 | C,XC; 10x125 This part replaces 09100-10051.

09100-10274

$7.15

22

BOLT | C,XC; 10x160 This part replaces 09100-10092.

41189-17X00

Unavailable

23

BOLT, ENGINE MOUNTING | C,XC; 10x265

09100-10110

Unavailable

24

BOLT | C,XC This part replaces 01517-10458.

01550-1045B

$4.77

25

NUT | C,XC

09159-10011

$3.23

26

NUT | C,XC

09159-10020

$5.18

27

WASHER | C,XC This part replaces 08322-11108.

08322-01107

$2.15

28

LOCK WASHER | C,XC This part replaces 08321-21108.

08321-01107

$1.84

29

SPACER (L:50) | C,XC; L:50 This part replaces 09180-10046.

11610-44010

Unavailable

30

O RING, OIL GALLERY | C,XC This part replaces 09280-12005.

09280-12012

$4.64

31

PLATE, OIL SEPARATOR | C,XC

11521-44000

Unavailable

32

SCREW | C,XC This part replaces 02112-06088.

02112-06087

$1.49
