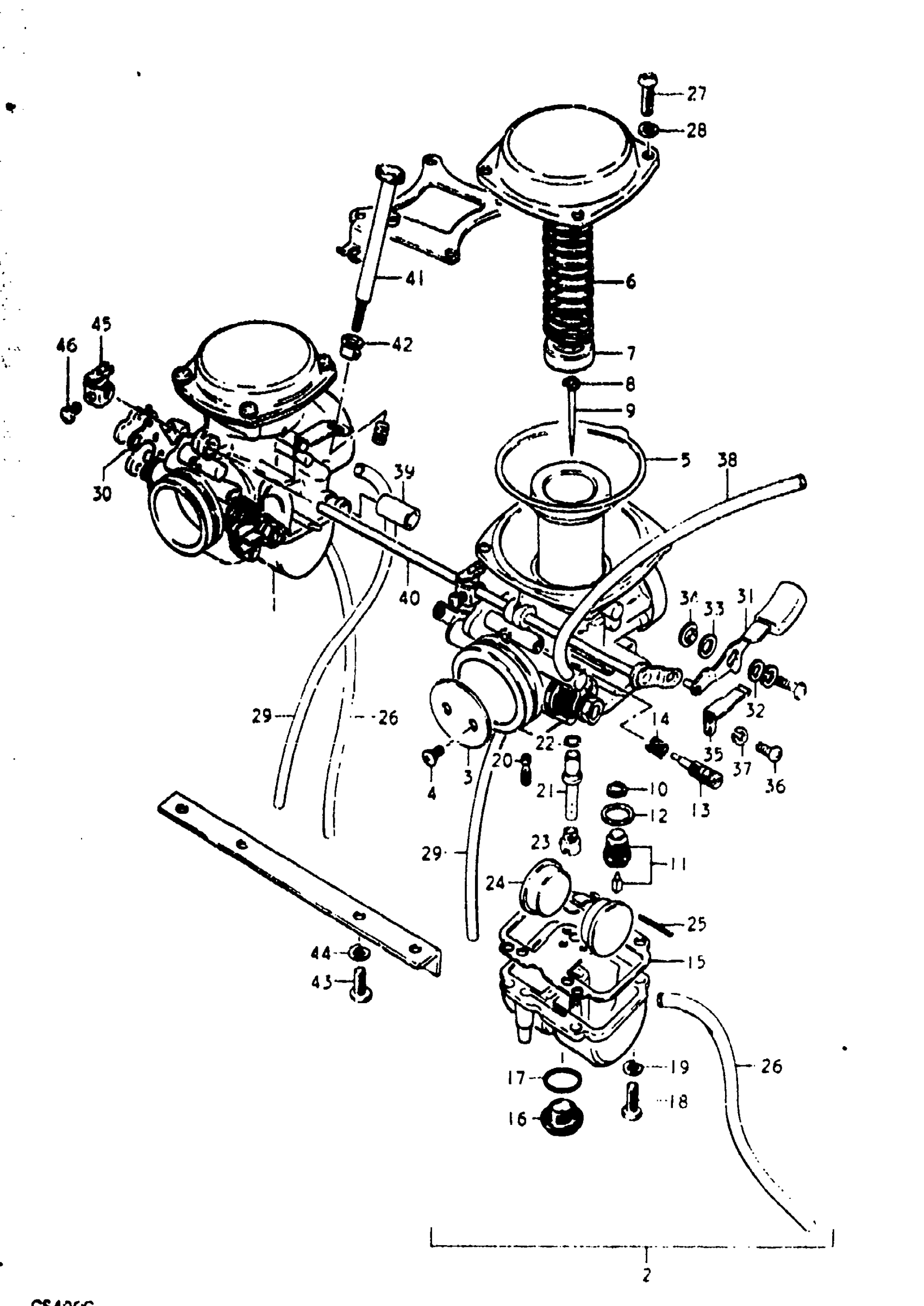

Suzuki GS400X (1978) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | C

13200-44020

Unavailable

0

CARBURETOR ASSY | XC; Includes Item(s) 1 - 46

13200-44990

Unavailable

1

CARBURETOR ASSY, RH | C,XC

13201-44020

Unavailable

2

CARBURETOR ASSY, LH | C

13202-44020

Unavailable

2

CARBURETOR ASSY, LH | XC

13202-44990

Unavailable

3

VALVE, THROTTLE | C,XC; #135

13551-44010

Unavailable

4

SCREW | C,XC This part replaces 02122-03088.

02122-0308A

Unavailable

5

DIAPHRAGM | C,XC This part replaces 13500-44010.

13500-44110

Unavailable

6

SPRING | C,XC

13503-44010

Unavailable

7

PLATE | C,XC

13398-31210

Unavailable

8

E RING | C,XC This part replaces 13394-44010.

13394-31210

$4.64

9

NEECLE, JE+ | C,XC; 4F: 3-3

13383-44010

Unavailable

10

FILTER | C,XC This part replaces 13376-65010.

13376-19F00

$10.28

11

VALVE, NEEDLE | C,XC

13370-44010

Unavailable

12

GASKET | C,XC

13392-16600

$1.94

13

SCREW, PILOT AIR | C,XC

13269-44012

Unavailable

14

SPRING | C,XC

13268-44012

Unavailable

15

GASKET, FLOOT CHAMBER | C,XC

13251-44012

Unavailable

16

PLUG, DRAIN | C,XC

13247-32210

$15.23

17

O RING | C,XC This part replaces 13246-44010.

13249-41310

$4.40

18

SCREW | C,XC This part replaces 02112-04128.

02112-0412A

$1.49

19

LOCK WASHER | C,XC This part replaces 08321-21048.

08321-0104A

$1.84

20

JET, PILOT | C,XC; #20

09492-20004

Unavailable

21

JET, NEEDLE | C,XC; Y-O

09494-00181

Unavailable

22

O RING, NOZZLE | C,XC This part replaces 13295-31210.

09280-03003

$1.91

23

JET, MAIN (110) | C,XC; #110 This part replaces 09491-22010.

09491-22013

$11.38

24

FLOAT | C,XC

13252-31210

Unavailable

25

.PIN, FLOAT | C,XC

13254-01010

$3.62

26

HOSE(4.5X8.5X60 | C,XC This part replaces 13683-44012.

09355-45001-600

$9.48

27

SCREW | C,XC This part replaces 02112-05168.

02112-05167

$1.97

28

LOCK WASHER | C,XC This part replaces 08321-21058.

08321-0105A

$1.84

29

HOSE (3.5X6.5X6OO) | C,XC This part replaces 13683-44021.

13683-45070

$11.80

30

GASKET | C,XC

13436-44010

Unavailable

31

LEVER, STARTER | C,XC; LH CARBURETOR This part replaces 13413-44010.

13413-44020

Unavailable

32

WASHER | C,XC; LH CARBURETOR

13615-31630

Unavailable

33

WASHER | C,XC; LH CARBURETOR

13615-44010

Unavailable

34

RING | C,XC; LH CARBURETOR

13432-31210

Unavailable

35

PLATE, SPRING | C,XC; LH CARBURETOR

13426-44010

Unavailable

36

SCREW | C,XC; LH CARBURETOR This part replaces 02111-04067.

02112-0406B

$1.55

37

LOCK WASHER | C,XC; LH CARBURETOR This part replaces 08321-21068.

08321-01067

$2.13

38

HOSE(4.5X8.5X60 | C,XC; LH CARBURETOR This part replaces 13683-31610.

09355-45001-600

$9.48

39

HOSE | C,XC This part replaces 13683-31600.

13683-10201

Unavailable

40

SHAFT, STARTER | C,XC

13410-44010

Unavailable

41

ADJUSTER, THROTTLE | C,XC

13267-44010

Unavailable

42

BUSHING | C,XC

13276-31210

Unavailable

43

SCREW | C,XC This part replaces 02112-06128.

02112-06127

$1.84

44

LOCK WASHER | C,XC This part replaces 08321-21068.

08321-01067

$2.13

45

LEVER | C,XC

13422-44010

Unavailable

46

SCREW | C,XC

13605-31210

$7.37
