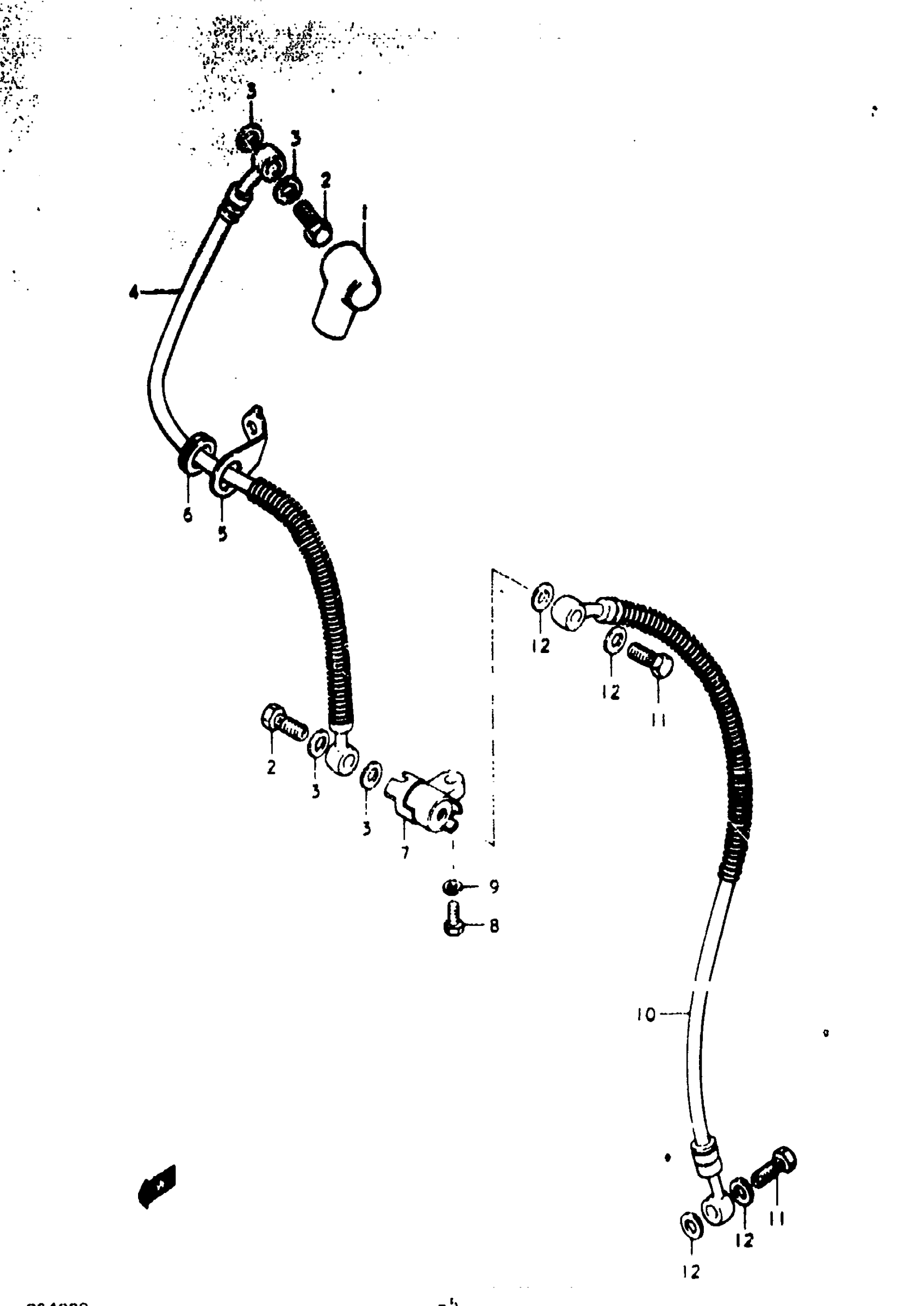

Suzuki GS400X (1978) BRAKE HOSE (GS400C) Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER This part replaces 59711-18400.

59711-49001

$7.51

2

UNION This part replaces 09360-10003.

09360-10017

$3.42

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO.1 This part replaces 59480-44000.

59480-37013

Unavailable

5

GUIDE, HOSE

59243-18401

Unavailable

6

GROMMET This part replaces 09308-14007.

09308-14009

Unavailable

7

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

Unavailable

8

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

HOSE, BRAKE NO. 2 This part replaces 59240-44000.

59240-44001

Unavailable

11

UNION This part replaces 09360-10003.

09360-10017

$3.42

12

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
