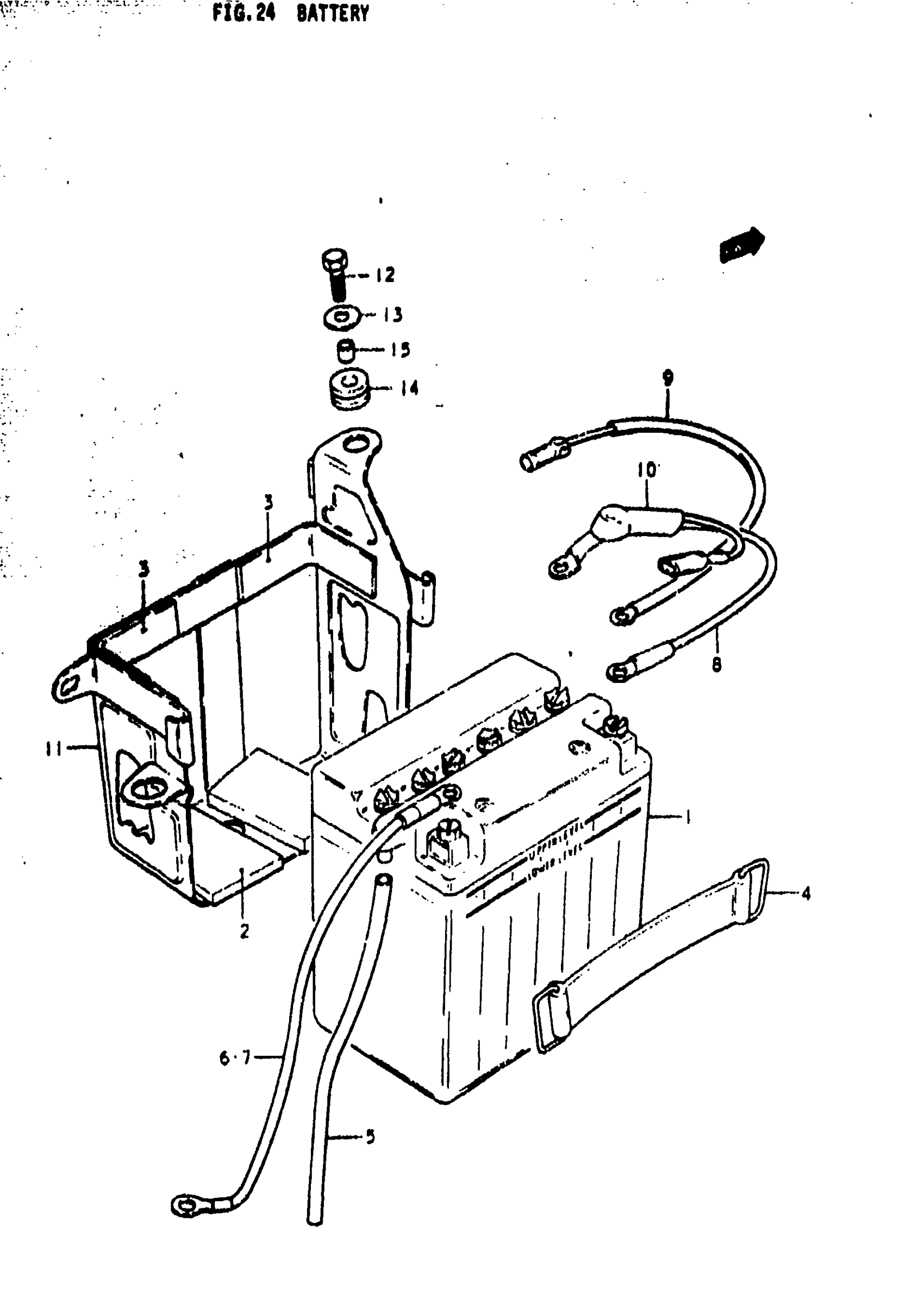

Suzuki GS400X (1978) BATTERY Diagram

#

Description
Price

1

BATTERY | C; 12V, 10AH

33610-44010

Unavailable

1

YB7-A BATTERY(Y | XC; 12V, 7AH This part replaces 33610-33120.

33610-10311

$100.82

2

NO DESCRIPTION AVAILABLE | C,XC This part replaces 33651-25001.

94268-24A00

Unavailable

3

CUSHION, REAR FENDER REAR | C,XC This part replaces 33652-29100.

33651-37000

$4.48

4

BAND | C

09462-00007

$4.11

4

BAND | XC

09462-00043

$4.11

5

HOSE,BATTERY EX | C,XC This part replaces 33680-31003.

33680-16A11

$6.78

6

WIRE, BATT (-) | C This part replaces 33850-44000.

33860-44501

Unavailable

7

LEAD WIRE, ENGINE (-) | XC This part replaces 36852-44600.

36851-02331

Unavailable

8

LEAD WIRE, (+) | C

33820-08200

Unavailable

9

NO DESCRIPTION AVAILABLE | XC This part replaces 36852-44610.

36852-44611

Unavailable

10

CAP, TERMINAL | C

33624-45000

$4.58

11

HOLDER, BATTERY | C

41540-44001

Unavailable

11

HOLDER, BATTERY | XC

41540-44600

Unavailable

12

BOLT | C,XC This part replaces 01107-06208.

01500-06207

$2.28

13

WASHER | C,XC; 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

14

CUSHION (8X18X10) | C,XC This part replaces 09320-08001.

09320-08527

$2.06

15

SPACER (6.5X9X9) | C,XC; 6.1x9x9 This part replaces 09180-06011.

09180-06263

$2.03
