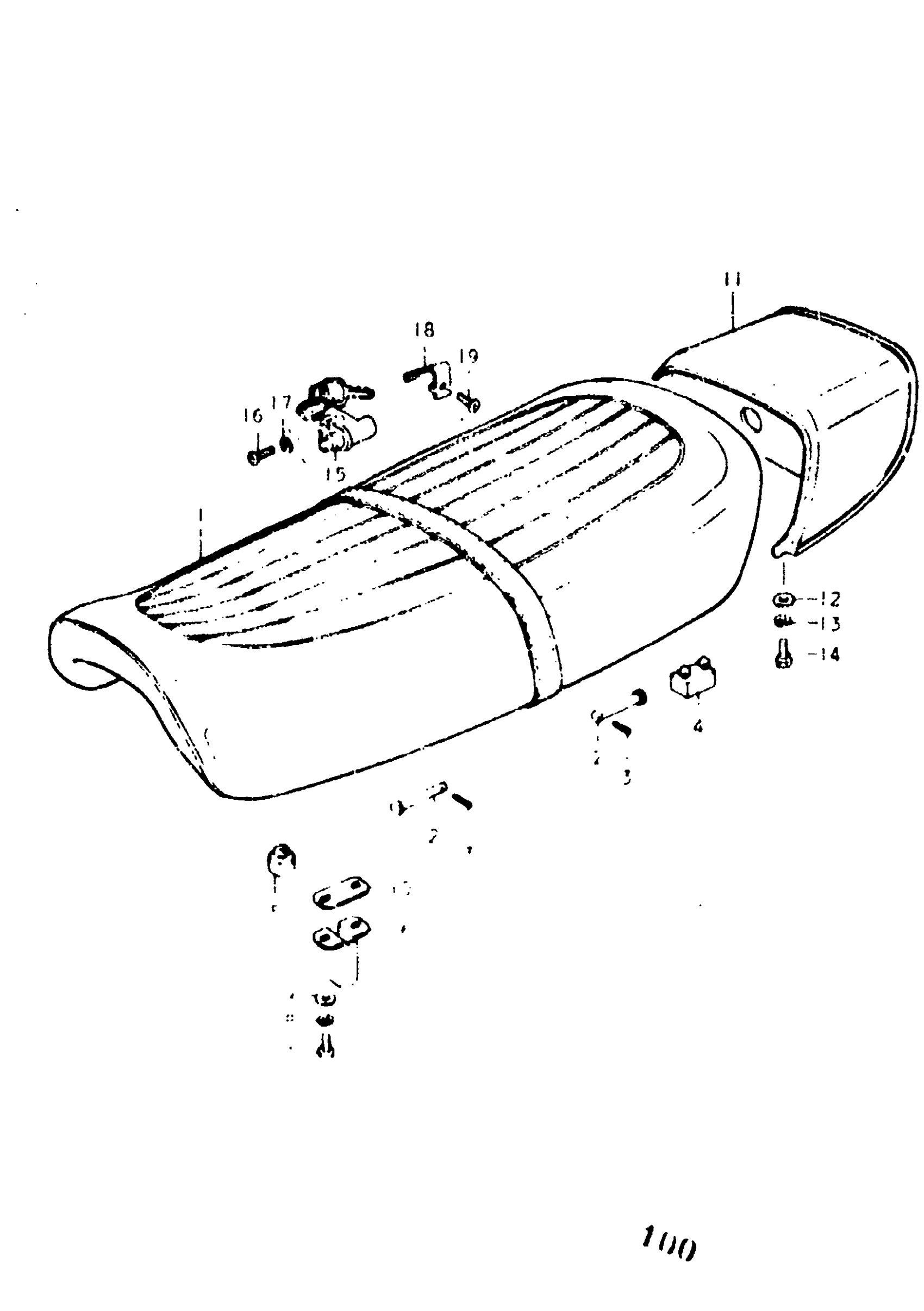

Suzuki GS400X (1977) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B,XB This part replaces 45100-44000-865.

45100-44010-48H

Unavailable

2

PIN | B,XB

09200-06018

$2.06

3

.COTTER PIN | B,XB This part replaces 04111-20158.

04111-2015A

$1.49

4

CUSHION | B,XB

09321-08006

$2.90

5

CUSHION | B,XB

09321-10002

$2.22

6

STRIKER, SEAT LOCK | B,XB

45213-45000

Unavailable

7

SCREW | B,XB This part replaces 02112-06128.

02112-06127

$1.84

8

LOCK WASHER | B,XB This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER | B,XB This part replaces 08322-21068.

08322-01067

$2.13

10

SHIM | B,XB

45217-45001

Unavailable

11

COVER SEAT TAIL | B This part replaces 45510-44000-737.

45510-44001

Unavailable

11

COVER SEAT TAIL | B This part replaces 45510-44000-00T.

45510-44001

Unavailable

11

COVER SEAT TAIL | XB This part replaces 45510-44000-01J.

45510-44001

Unavailable

12

WASHER | B,XB

09169-06016

$1.65

13

LOCK WASHER | B,XB This part replaces 08321-21068.

08321-01067

$2.13

14

BOLT, CANISTER | B,XB This part replaces 01112-06168.

01500-06167

$1.97

15

LOCK SET, SEAT | B This part replaces 95700-45811.

95700-45813

Unavailable

15

LOCK SET, SEAT | XB This part replaces 95700-45812.

95700-45813

Unavailable

16

SCREW | B,XB This part replaces 02111-05127.

02112-05127

$1.97

17

LOCK WASHER | B,XB This part replaces 08321-21058.

08321-0105A

$1.84

18

SPRING, HELMET HOLDER | B,XB

95722-45000

Unavailable

19

BOLT | B,XB

01112-05088

Unavailable
