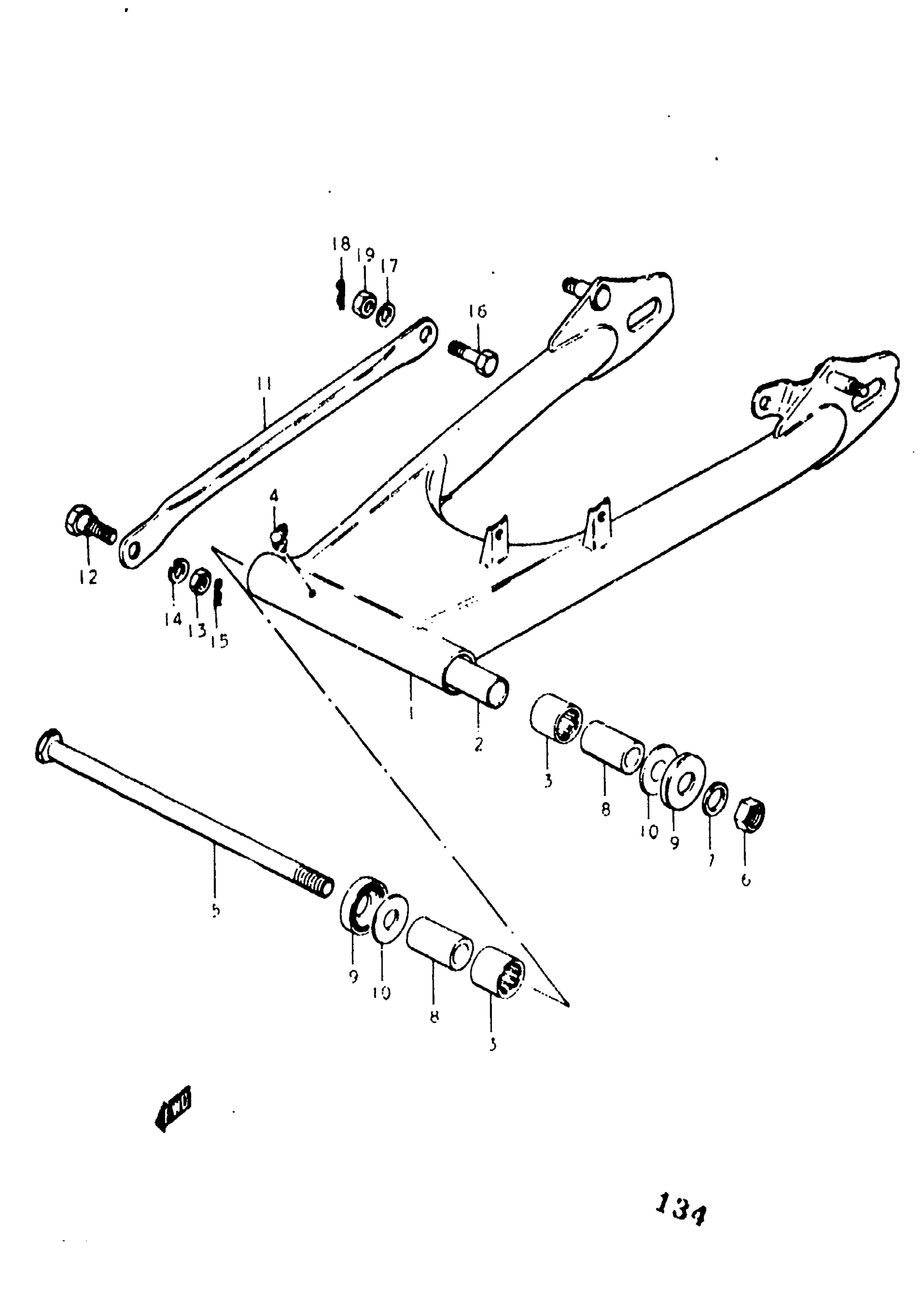

Suzuki GS400X (1977) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B,XB; Includes Item(s) 2 - 4 This part replaces 61100-44810-019.

61100-44813-019

Unavailable

2

SPACER | B,XB

61280-44000

Unavailable

3

BEARING | B,XB

09263-22017

$22.58

4

NIPPLE, GREASE | B,XB This part replaces 08351-31008.

08351-3100A

$4.45

5

SHAFT, PIVOT | B,XB This part replaces 61211-33001.

61211-33002

Unavailable

6

NUT | B,XB This part replaces 08319-11148.

08319-2114A

$3.96

7

WASHER | B,XB This part replaces 08322-11148.

08322-01147

$1.91

8

SPACER | B,XB

61251-45000

Unavailable

9

DUST SEAL | B,XB This part replaces 61262-45001.

61262-45002

$7.97

10

WASHER | B,XB

09160-14020

$2.19

11

NO DESCRIPTION AVAILABLE | B,XB This part replaces 64311-31001.

64311-31001-13L

Unavailable

12

BOLT, FRONT | B,XB

09111-10010

Unavailable

13

NUT | B,XB This part replaces 08312-32108.

08310-00107

$2.19

14

LOCK WASHER | B,XB This part replaces 08321-21108.

08321-01107

$1.84

15

CLIP | B,XB This part replaces 09385-10001.

09385-10005

$1.56

16

BOLT, REAR | B,XB

09101-10003

Unavailable

17

LOCK WASHER | B,XB This part replaces 08321-21108.

08321-01107

$1.84

18

CLIP | B,XB This part replaces 09385-10001.

09385-10005

$1.56

19

NUT | B,XB This part replaces 08311-11108.

08310-00107

$2.19
