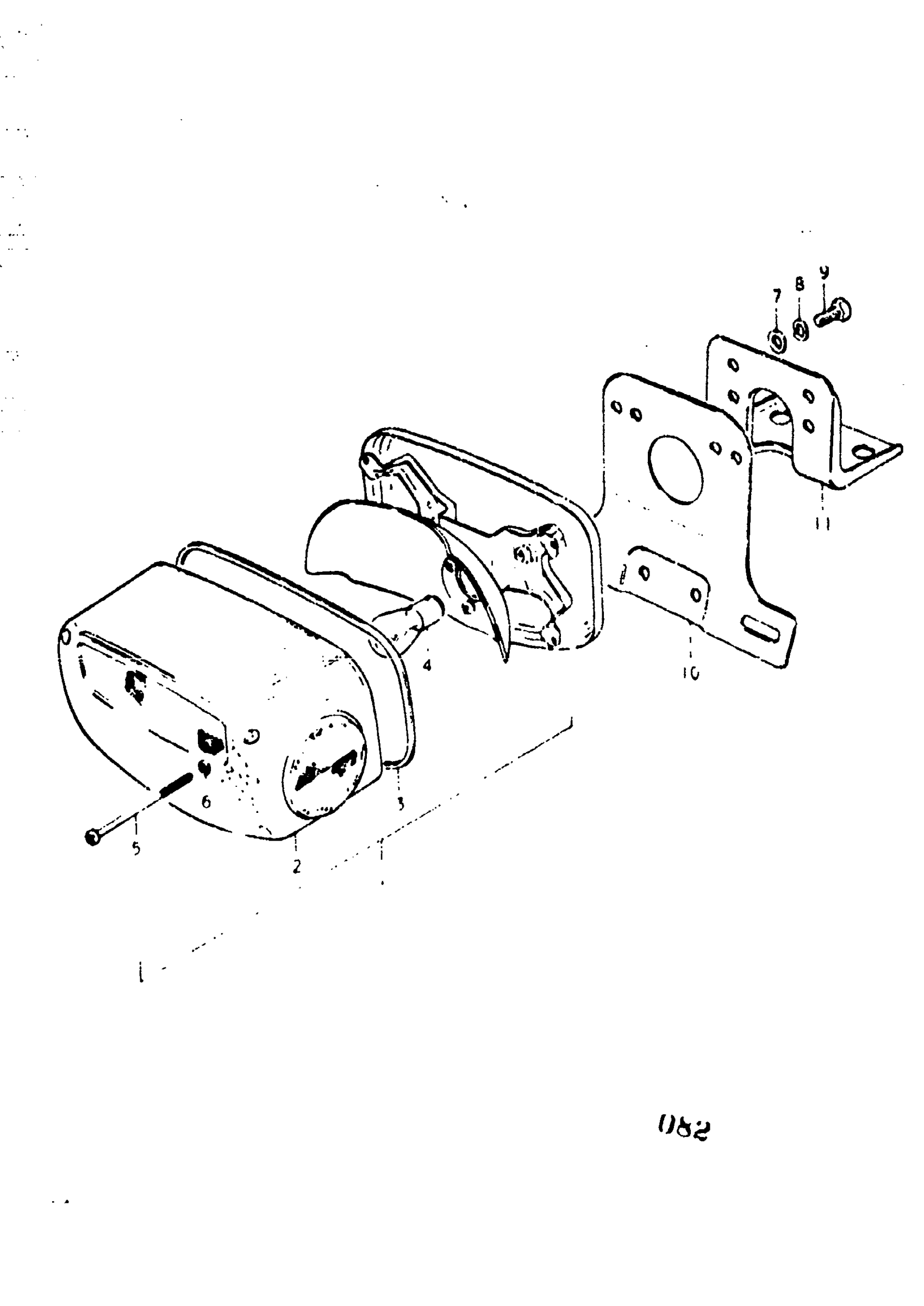

Suzuki GS400X (1977) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | B,XB; Includes Item(s) 2 - 6 This part replaces 35710-45010.

35710-45011

Unavailable

2

LENS,RR COMBI L | B,XB This part replaces 35712-45010.

35712-45013

Unavailable

3

GASKET | B,XB

35713-45010

Unavailable

4

BULB | B,XB; 12V, 23/8W

09471-12035

$4.49

5

SCREW 4X55 | B,XB This part replaces 02111-04558.

02112-04558

$1.65

6

GASKET | B,XB

35627-43010

$2.28

7

WASHER | B,XB This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER | B,XB This part replaces 08321-21068.

08321-01067

$2.13

9

BOLT | B,XB This part replaces 01112-06128.

01500-06127

$1.97

10

PLATE, LICENCE | B,XB

35927-45000

Unavailable

11

BRACKET, LICENSE PLATE | B,XB This part replaces 35928-45000.

35928-45001

Unavailable
