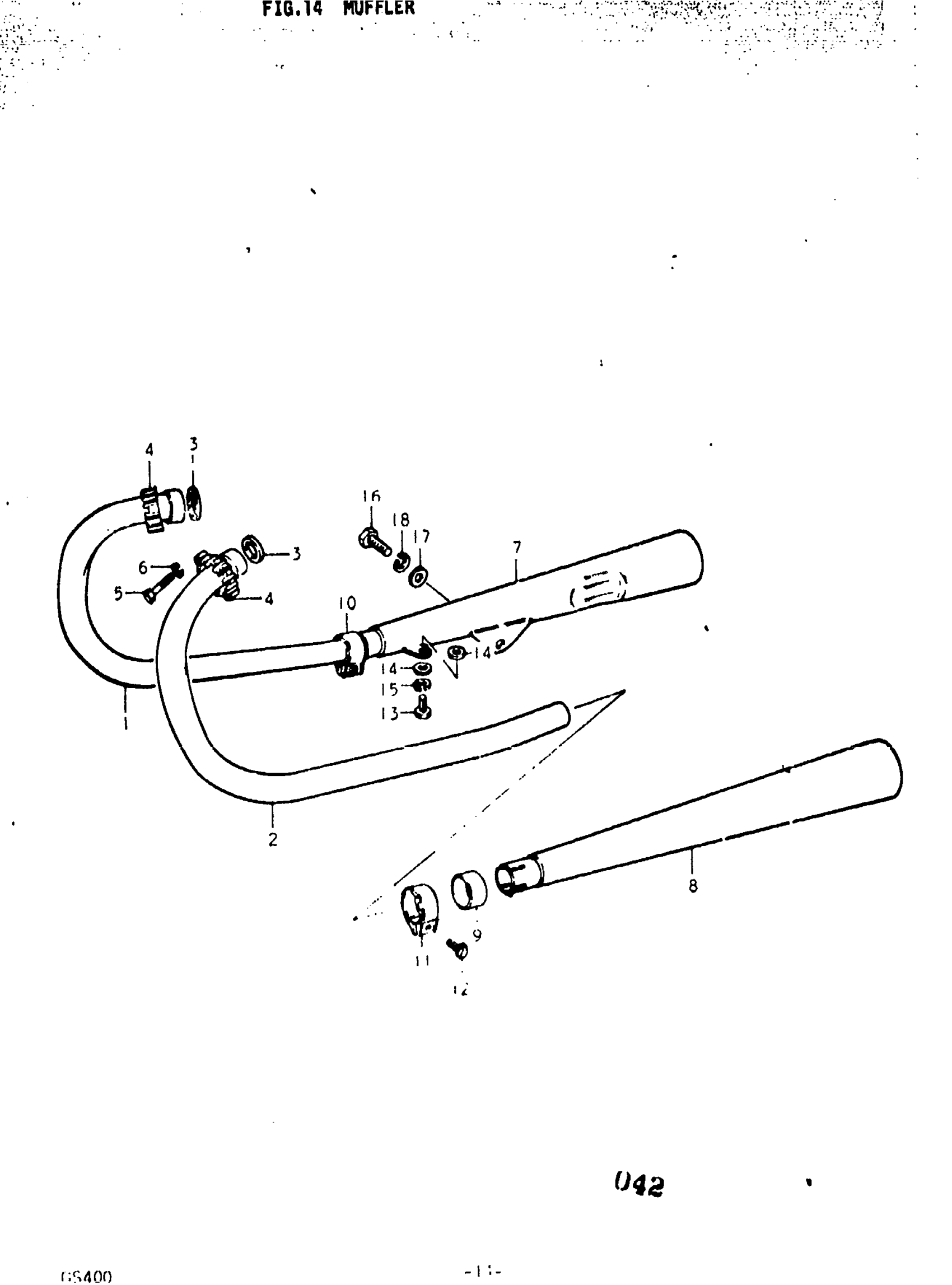

Suzuki GS400X (1977) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH | B,XB

14150-44001

Unavailable

2

PIPE, EXHAUST LH | B,XB

14160-44001

Unavailable

3

GASKET, EXHAUST PIPE | B,XB This part replaces 14181-11010.

14181-01D00

$7.11

4

CLAMP | B,XB

14182-44000

Unavailable

5

BOLT | B,XB This part replaces 01122-08357.

01500-0835B

$3.04

6

.LOCK WASHER | B,XB This part replaces 08321-21088.

08321-01087

$2.13

7

NO DESCRIPTION AVAILABLE | B,XB This part replaces 14310-44001.

14305-44003-H01

Unavailable

8

NO DESCRIPTION AVAILABLE | B,XB This part replaces 14340-44001.

14306-44003-H01

Unavailable

9

CONNECTOR,MUFFL | B,XB This part replaces 14771-44011.

14771-44030

Unavailable

10

CLAMP, RH | B,XB

14459-44000

Unavailable

11

CLAMP, LH | B,XB

14469-44000

Unavailable

12

BOLT | B,XB This part replaces 01512-08258.

01550-08257

$2.81

13

PLUG, DRAIN | B,XB This part replaces 01122-08168.

01500-0816B

$2.50

14

WASHER (8.5X20X1.6) | B,XB This part replaces 09160-08010.

09160-08054

$1.49

15

.LOCK WASHER | B,XB This part replaces 08321-21088.

08321-01087

$2.13

16

BOLT | B,XB This part replaces 01122-10258.

01500-10257

$3.85

17

WASHER | B,XB This part replaces 08322-21108.

08322-01107

$2.15

18

LOCK WASHER | B,XB This part replaces 08321-21108.

08321-01107

$1.84
