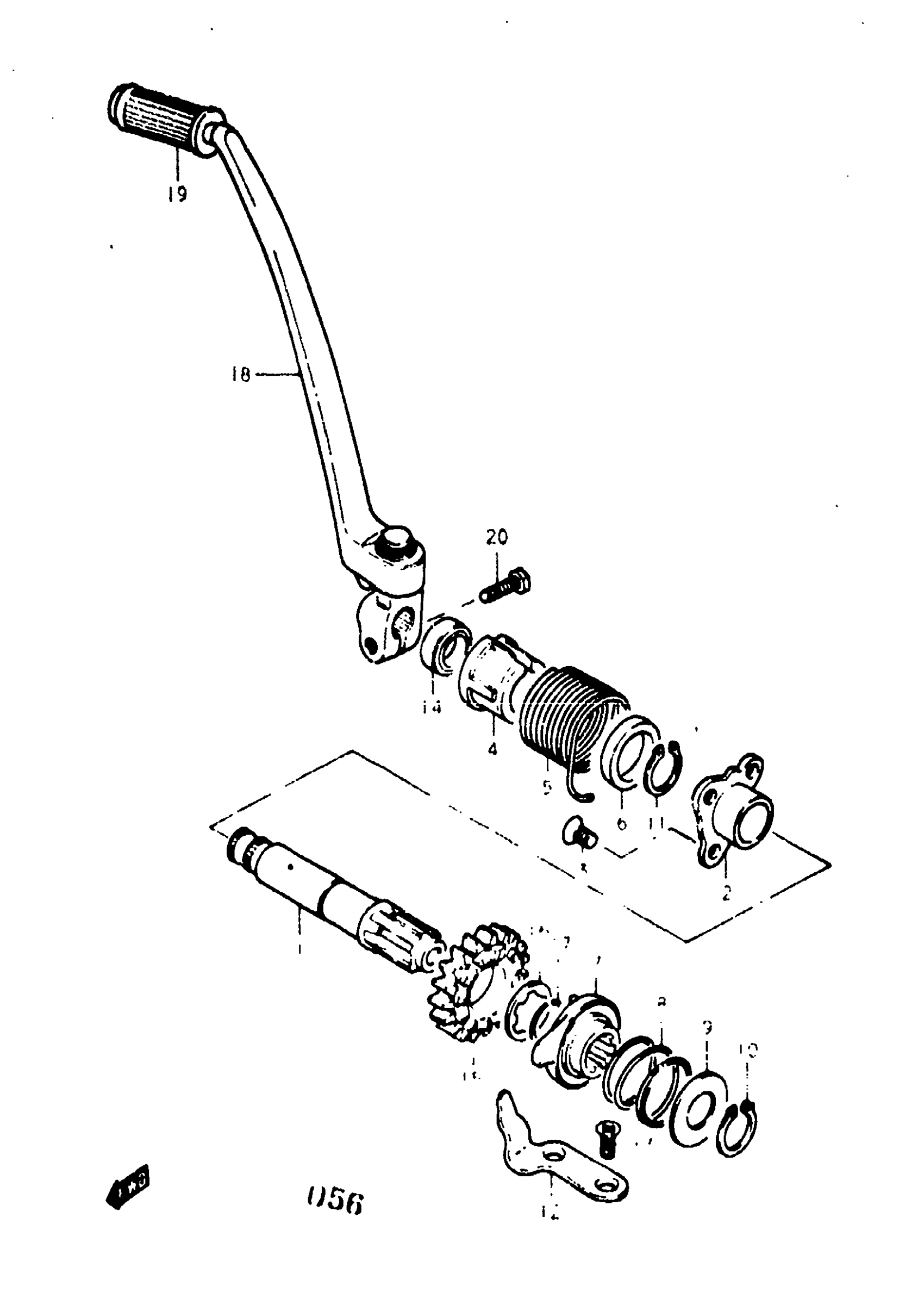

Suzuki GS400X (1977) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | B,XB

26210-44000

Unavailable

2

HOLDER, SHAFT | B,XB

26215-44000

Unavailable

3

SCREW | B,XB This part replaces 02122-06128.

02122-06127

$1.84

4

GUIDE, SPRING | B,XB

26221-30000

Unavailable

5

SPRING | B,XB

09448-45010

Unavailable

6

SPACER | B,XB

09180-27001

Unavailable

7

STARTER, KICK | B,XB This part replaces 26231-30000.

26231-22A10

$63.88

8

SPRING | B,XB

09440-32002

$2.27

9

PLATE | B,XB

08212-17342

Unavailable

10

CIRCLIP, LH | B,XB

09380-17001

$1.98

11

CIRCLIP, KICK START DRIVE GEAR | B,XB This part replaces 08331-11209.

08331-3120A

$2.03

12

GUIDE, STARTER | B,XB

26232-44000

Unavailable

13

SCREW | B,XB This part replaces 02122-06168.

02122-06167

$1.49

14

DUST SEAL, INNER | B,XB This part replaces 09285-20002.

09283-20031

$5.24

15

GEAR, KICK STARTER DRIVE | B,XB; NT:19

26240-45000

Unavailable

16

WASHER | B,XB

09167-22007

Unavailable

17

CIRCLIP | B,XB

09380-22003

$1.92

18

LEVER ASSY, KICK STARTER | B,XB; Includes Item(s) 19 This part replaces 26300-44000.

26300-44001

Unavailable

19

RUBBER,KICK STA | B,XB This part replaces 26352-01000.

26352-01020

$3.25

20

BOLT | B,XB This part replaces 01122-08258.

01500-08257

$2.50
