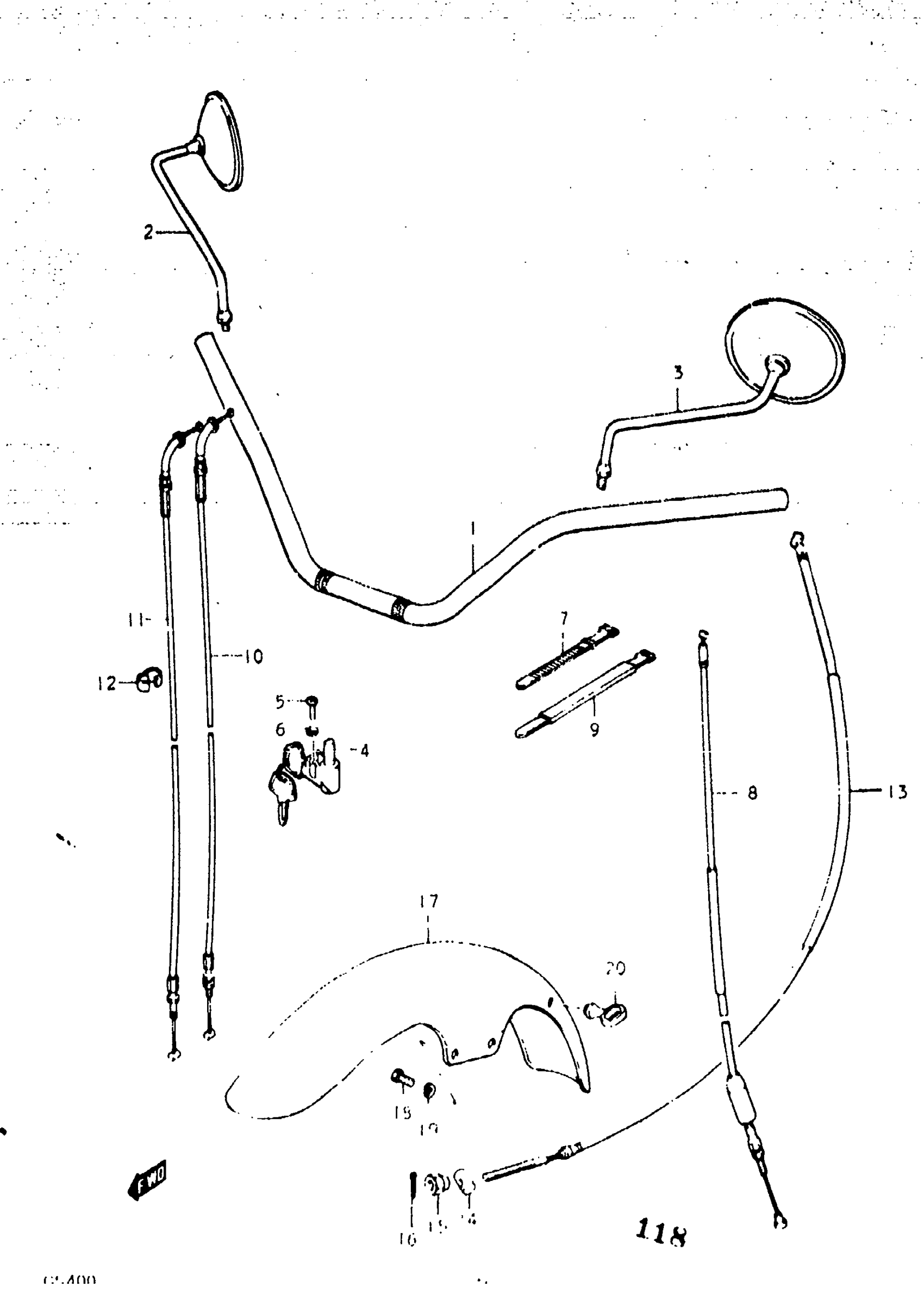

Suzuki GS400X (1977) HANDLEBAR - FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B,XB This part replaces 56111-44610.

56111-44011

Unavailable

2

MIRROR ASSY,RR | B This part replaces 56500-45010.

56500-45014

$64.82

2

MIRROR ASSY,RR | XB This part replaces 56500-45011.

56500-45014

$64.82

3

MIRROR ASSY,RR | B This part replaces 56600-45010.

56600-45014

$64.82

3

MIRROR ASSY,RR | XB This part replaces 56600-45011.

56600-45014

$64.82

4

LOCK ASSY, STEERING | B,XB This part replaces 51900-33810.

51900-33811

Unavailable

5

SCREW | B,XB This part replaces 02111-05257.

02112-05257

$1.49

6

LOCK WASHER | B,XB This part replaces 08321-21058.

08321-0105A

$1.84

7

BAND | B,XB

09407-12402

$3.04

8

CABLE,CLUTCH | B,XB This part replaces 58200-44000.

58200-11401

Unavailable

9

CLAMP | B,XB This part replaces 09407-18301.

09407-18302

$2.28

10

CABLE, THROTTLE NO.1 | B,XB; L:1115

58300-44000

Unavailable

11

CABLE, THROTTLE NO.2 | B,XB; L:1040

58300-44600

Unavailable

12

CLIP | B,XB

09408-00002

$2.30

13

CABLE, FRONT BRAKE | XB This part replaces 58100-30002.

58110-30002

Unavailable

14

.PIN (13X18) | XB This part replaces 09209-13003.

09209-13018

$3.42

15

.NUT | XB This part replaces 09150-06001.

09150-06010

$3.10

16

.COTTER PIN | XB This part replaces 04111-20158.

04111-2015A

$1.49

17

FENDER, FRONT | B,XB This part replaces 53110-44000.

53110-44010

Unavailable

18

PLUG, DRAIN | B,XB This part replaces 01122-08168.

01500-0816B

$2.50

19

.LOCK WASHER | B,XB This part replaces 08321-21088.

08321-01087

$2.13

20

GUIDE, METER CABLE | B,XB This part replaces 58621-21202.

58621-21204

$6.68
