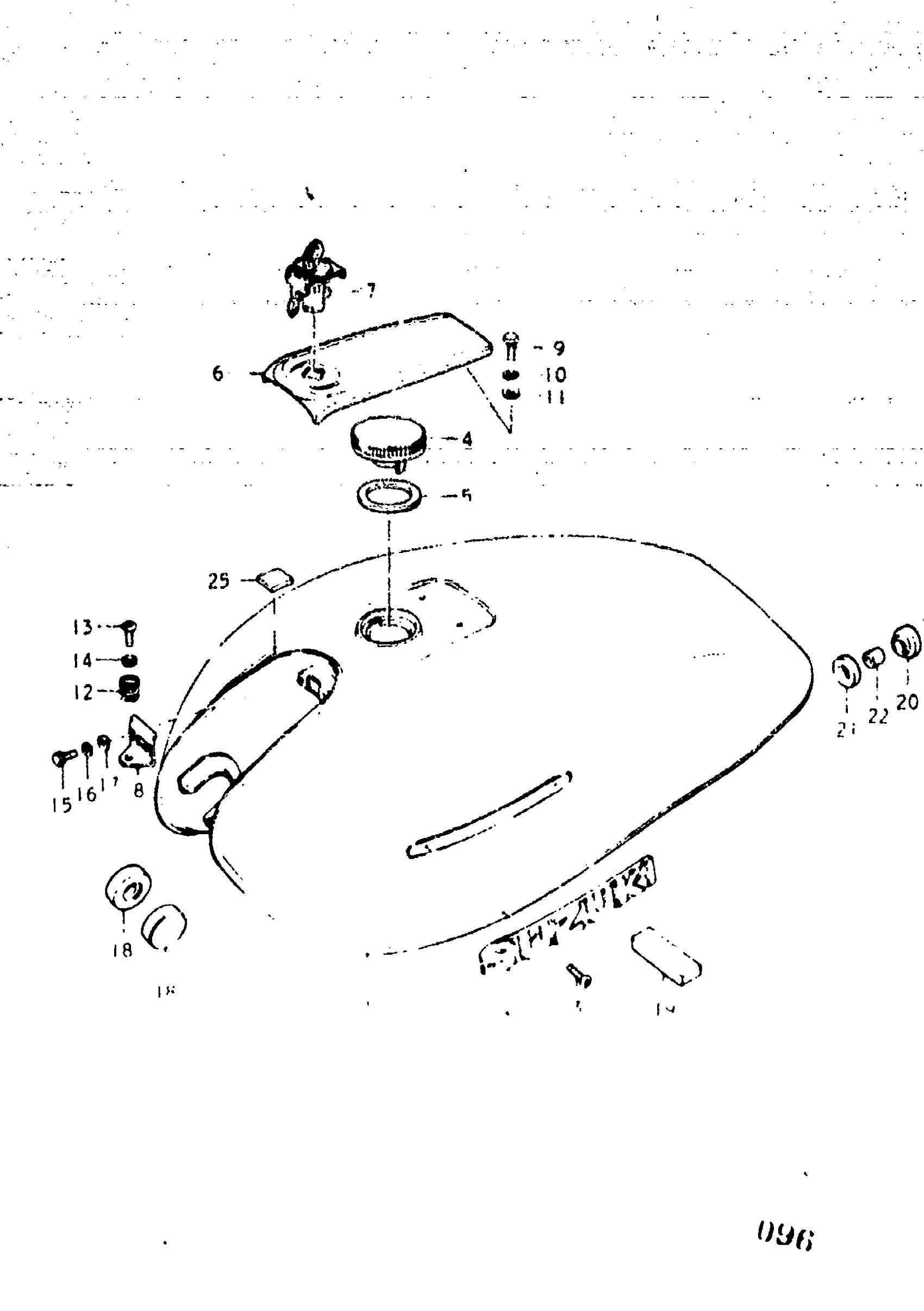

Suzuki GS400X (1977) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL | B

44110-44000-737

Unavailable

1

TANK, FUEL | B This part replaces 44110-44000-00T.

44110-44000-737

Unavailable

1

TANK, FUEL | XB This part replaces 44110-44000-01J.

44110-44000-737

Unavailable

2

EMBLEM | B,XB

68111-45000

$25.03

3

SCREW | B,XB This part replaces 09127-03002.

02122-0306B

$2.26

4

CAP FUEL TANK | B,XB This part replaces 44210-23300.

44200-23810

$49.39

5

GASKET | B,XB

85413-70000

$4.40

6

COVER, FUEL TANK FRONT | B This part replaces 44270-44000.

44270-44003

Unavailable

6

COVER, FUEL TANK FRONT | XB This part replaces 44270-44001.

44270-44003

Unavailable

7

LOCK ASSY, FRONT COVER | B,XB

44280-37010

$58.13

8

TANK FR COVER H | B,XB This part replaces 44290-37001.

44290-3700V

Unavailable

9

BOLT | B,XB This part replaces 01112-05108.

01500-0510B

$1.80

10

LOCK WASHER | B,XB This part replaces 08321-21058.

08321-0105A

$1.84

11

WASHER | B,XB This part replaces 08322-21058.

08322-01057

$2.13

12

SPRING | B,XB

09446-17001

$2.84

13

SCREW | B,XB This part replaces 02111-05108.

02112-05107

$1.49

14

LOCK WASHER | B,XB This part replaces 08321-21058.

08321-0105A

$1.84

15

BOLT | B,XB This part replaces 01112-05108.

01500-0510B

$1.80

16

LOCK WASHER | B,XB This part replaces 08321-21058.

08321-0105A

$1.84

17

WASHER | B,XB This part replaces 08322-11058.

08322-01057

$2.13

18

CUSHION | B,XB This part replaces 09329-10007.

09329-10026

$2.23

19

CUSHION, REAR | B,XB

44541-33000

Unavailable

20

CUSHION | B,XB

09320-12013

$2.60

21

CUSHION | B,XB

09320-12017

$2.18

22

SPACER | B,XB

09180-08067

$2.41

23

WASHER, EXHAUST SUPPORT | B,XB This part replaces 09160-08002.

09160-08135

$2.35

24

BOLT | B,XB This part replaces 01122-08308.

01500-08307

$3.04

25

CUSHION | B,XB This part replaces 44276-37001.

44276-37002

$3.12
