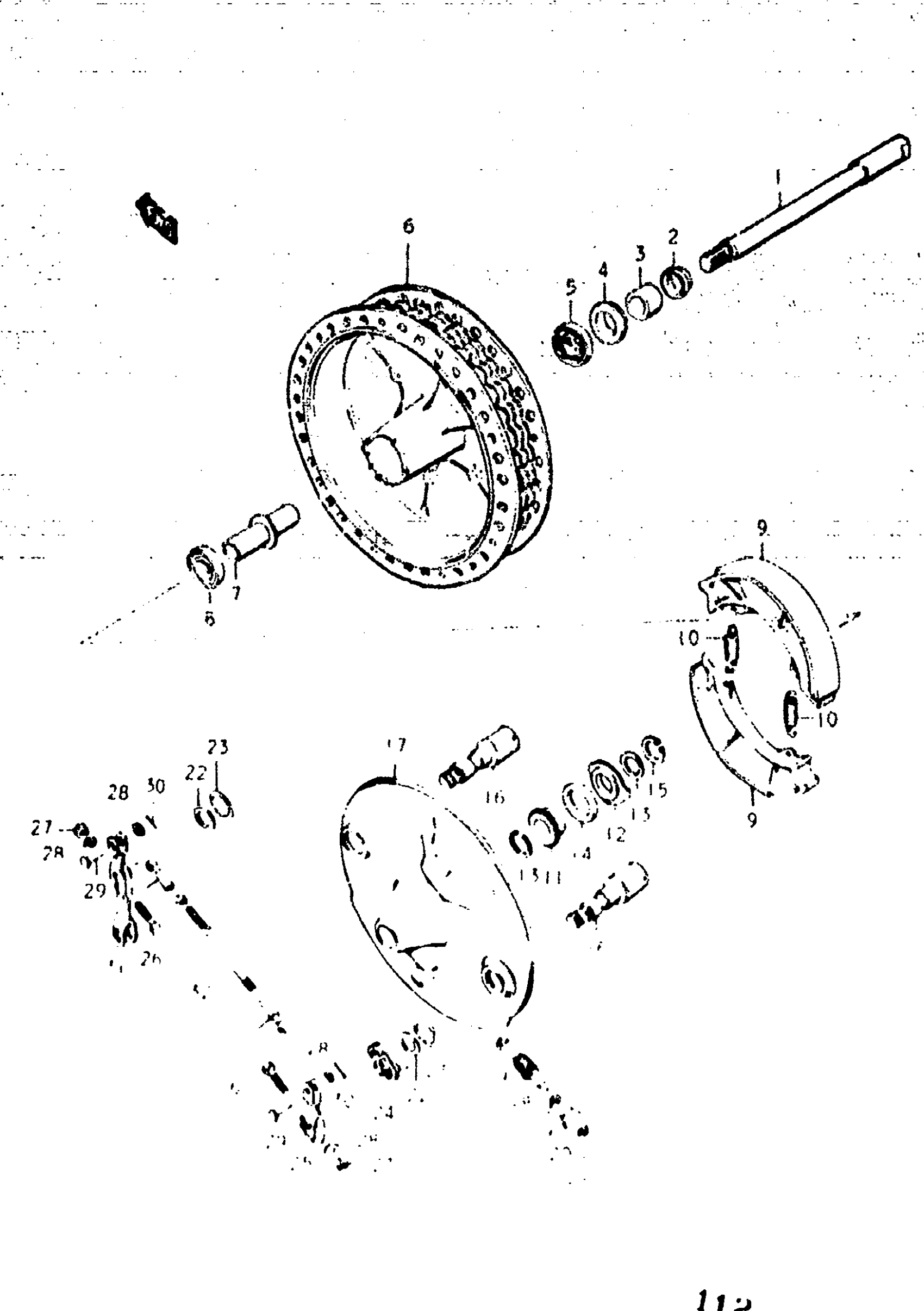

Suzuki GS400X (1977) FRONT HUB (GS400XB) Diagram

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

COVER, DUST

54892-11000

Unavailable

SPACER | 15x22x25.4

09180-15001

Unavailable

OIL SEAL | 22x33x6

09284-22001

Unavailable

BEARING

08113-60020

$16.01

DRUM, HUB

54110-15000

Unavailable

SPACER, BEARING

54730-11000

Unavailable

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

SHOE SET,BRAKE This part replaces 54410-15000.

54400-15820

Unavailable

SPRING, BRAKE SHOE

55420-30000

$4.48

GEAR, SPEEDOMETER (NT:24) This part replaces 54611-36000.

54611-36001

Unavailable

DRIVER This part replaces 54660-11030.

54660-11031

$12.67

WASHER | 22.5x27x1

09160-22001

$2.47

SEAL,OIL(26X38X | 26x38x4 This part replaces 09285-26001.

09285-26005

Unavailable

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

CAM, BRAKE This part replaces 54440-11003.

64440-38A00

Unavailable

PANEL

54210-15002

Unavailable

PINION, SPEEDOMETER

54621-11000

Unavailable

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

OIL SEAL | 1.8x10x

09289-06001

$4.58

WASHER | 15x24x1.0 This part replaces 09160-15001.

09160-15048

$2.56

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

LEVER, BRAKE CAM SECOND

54461-11000

Unavailable

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

.NUT This part replaces 08311-11068.

08310-00067

$2.13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

PIN

09200-06001

Unavailable

PIN This part replaces 04111-12108.

04111-1210A

$1.50

LEVER, BRAKE AM FIRST

54450-11000

Unavailable

BRAKE LEVER ROD SET This part replaces 54400-11835.

54400-18840

Unavailable
