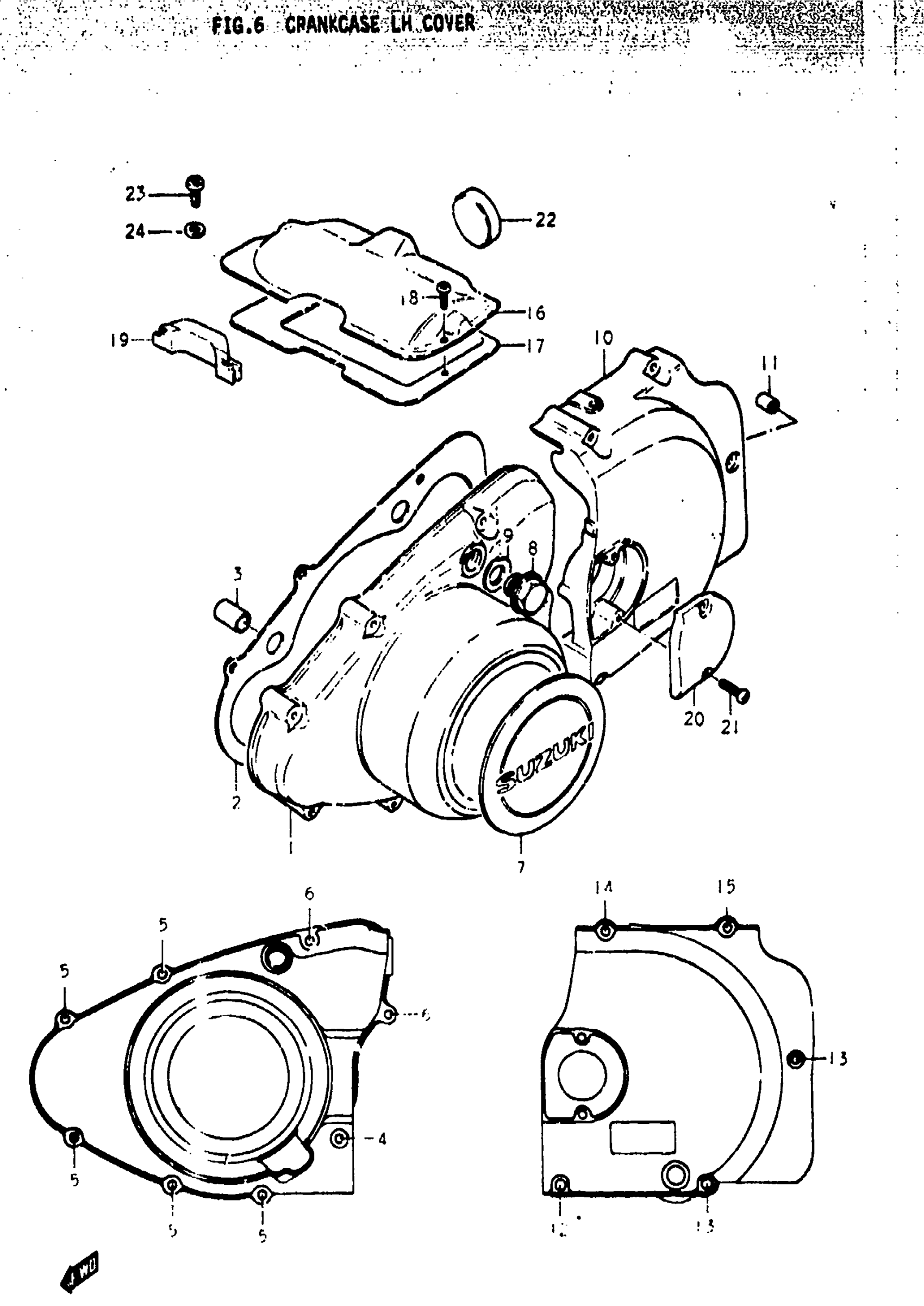

Suzuki GS400X (1977) CRANKCASE LH COVER Diagram

#

Description
Price

1

COVER, GENERATOR | B,XB

11351-44000

Unavailable

2

GASKET,MAGNETO | B,XB This part replaces 11483-44000.

11483-44001

Unavailable

3

PIN | B,XB This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X40) | B,XB This part replaces 02112-06408.

02112-06407

$1.78

5

SCREW | B,XB This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW | B,XB

02112-06307

$1.97

7

EMBLEM | B,XB This part replaces 68233-45000.

68233-45200

$18.50

8

PLUG | B,XB This part replaces 09247-14012.

09247-14026

$3.76

9

GASKET | B,XB

09168-14004

$1.83

10

COVER, ENGINE SPROCKET | B,XB This part replaces 11361-44000.

11300-44820

Unavailable

11

PIN | B,XB

04211-09129

$1.65

12

SCREW | B,XB

02112-06657

$2.62

13

SCREW | B,XB This part replaces 02112-06608.

02112-06607

$2.57

14

6X50 CROSS SCRE | B,XB This part replaces 02112-06508.

02112-06507

$1.99

15

SCREW | B,XB

02112-06307

$1.97

16

NO DESCRIPTION AVAILABLE | B,XB This part replaces 11382-44000.

11382-44002

Unavailable

17

GASKET | B,XB

11493-44000

Unavailable

18

SCREW | B,XB This part replaces 02111-05087.

02112-05087

$1.49

19

GROMMET | B

11498-44000

Unavailable

20

CAP, CLUTCH RELEASE | B,XB

11387-44000

Unavailable

21

SCREW | B,XB This part replaces 02112-05168.

02112-05167

$1.97

22

PLUG | XB This part replaces 09241-30001.

09241-30003

$5.97

23

SCREW | XB This part replaces 02112-06108.

02112-06107

$1.49

24

GASKET | XB

09168-06001

$1.49
