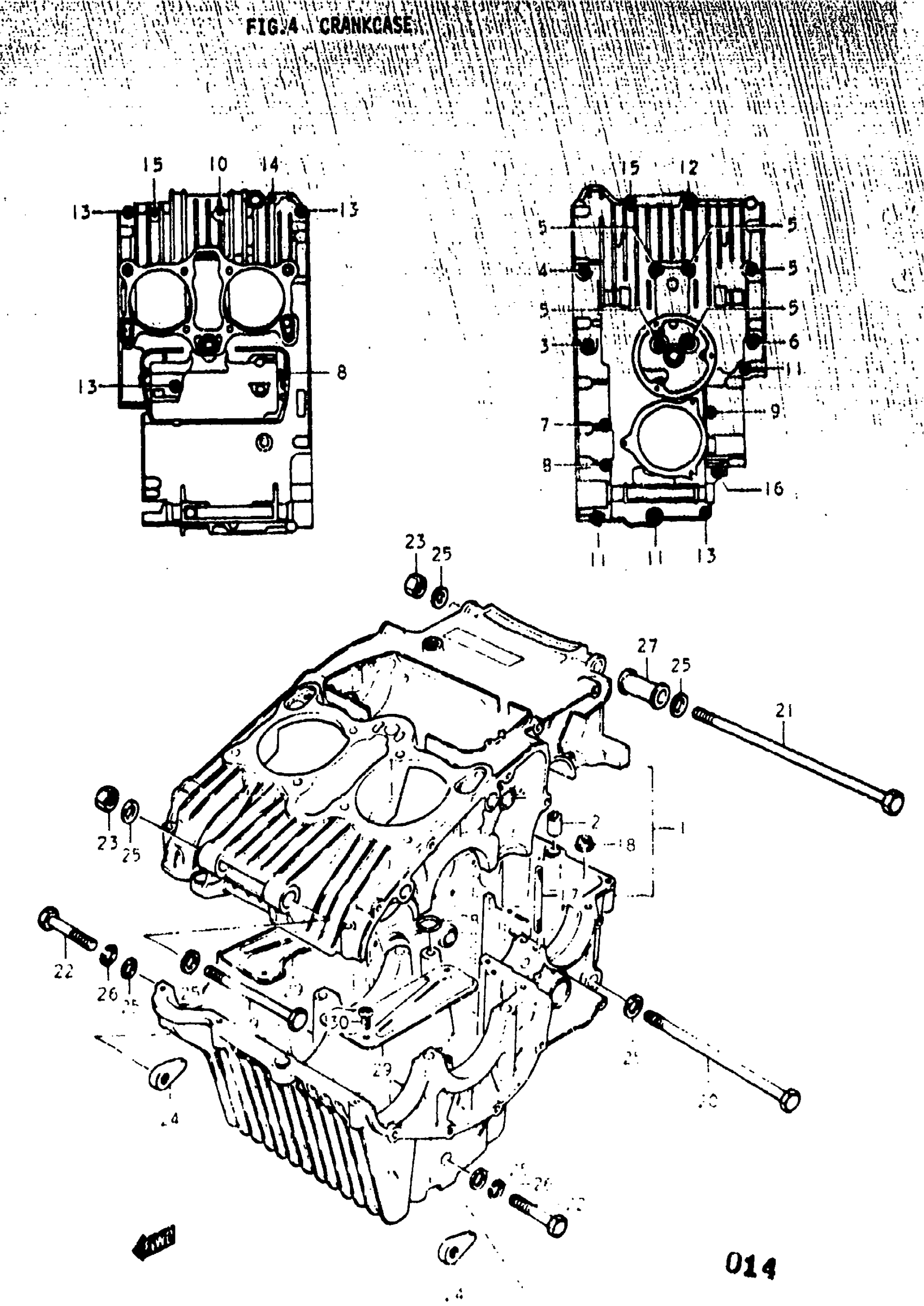

Suzuki GS400X (1977) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | B,XB; Includes Item(s) 2 - 18 This part replaces 11300-44810.

11300-44812

Unavailable

2

PIN | B,XB This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT, UPPER | B,XB; 8x115 This part replaces 09103-08025.

09103-08098

$3.29

4

BOLT | B,XB; 8x95 This part replaces 09103-08013.

01550-08957

$5.37

5

BOLT | B,XB; 8x90 This part replaces 09103-08018.

01550-08907

$5.18

6

BOLT | B,XB; 8x85 This part replaces 09103-08022.

01550-0885B

Unavailable

7

BOLT (6X115) | B,XB; 6x115 This part replaces 09103-06027.

09103-06052

$4.68

8

BOLT | B,XB; 6x90 This part replaces 09103-06019.

01550-06907

$4.60

9

BOLT | B,XB; 6x70 This part replaces 09103-06022.

01550-06707

$4.30

10

BOLT | B,XB; 6x65 This part replaces 09103-06017.

01550-06657

$4.17

11

BOLT | B,XB; 6x60 This part replaces 09103-06021.

01550-06607

$4.17

12

BOLT (CHROME) | B,XB This part replaces 01512-06458.

01550-06457

$2.69

13

BOLT | B,XB This part replaces 01512-06408.

01550-06407

$2.69

14

BOLT | B,XB This part replaces 01512-06358.

01550-06357

$2.77

15

BOLT | B,XB This part replaces 01512-06308.

01550-06307

$2.69

16

BOLT, MUF SPRT,RR | B,XB This part replaces 01512-08458.

01550-08457

$4.00

17

BOLT,STUD | B,XB This part replaces 01421-06408.

01421-0640A

$2.38

18

NUT | B,XB This part replaces 09159-06017.

08319-31067

$2.03

19

BOLT 10X125 | B,XB; 10x125 This part replaces 09100-10051.

09100-10274

$7.15

20

BOLT | B,XB; 10x160 This part replaces 09100-10092.

41189-17X00

Unavailable

21

BOLT, ENGINE MOUNTING | B,XB; 10x265

09100-10110

Unavailable

22

BOLT | B,XB; 10x45 This part replaces 01122-10458.

01500-1045A

$3.04

23

NUT | B,XB

09159-10011

$3.23

24

NUT | B,XB

09159-10020

$5.18

25

WASHER | B,XB This part replaces 08322-11108.

08322-01107

$2.15

26

LOCK WASHER | B,XB This part replaces 08321-21108.

08321-01107

$1.84

27

SPACER (L:50) | B,XB; L:50 This part replaces 09180-10046.

11610-44010

Unavailable

28

O RING, OIL GALLERY | B,XB This part replaces 09280-12005.

09280-12012

$4.64

29

PLATE, OIL SEPARATOR | B,XB

11521-44000

Unavailable

30

SCREW | B,XB This part replaces 02112-06128.

02112-06127

$1.84
