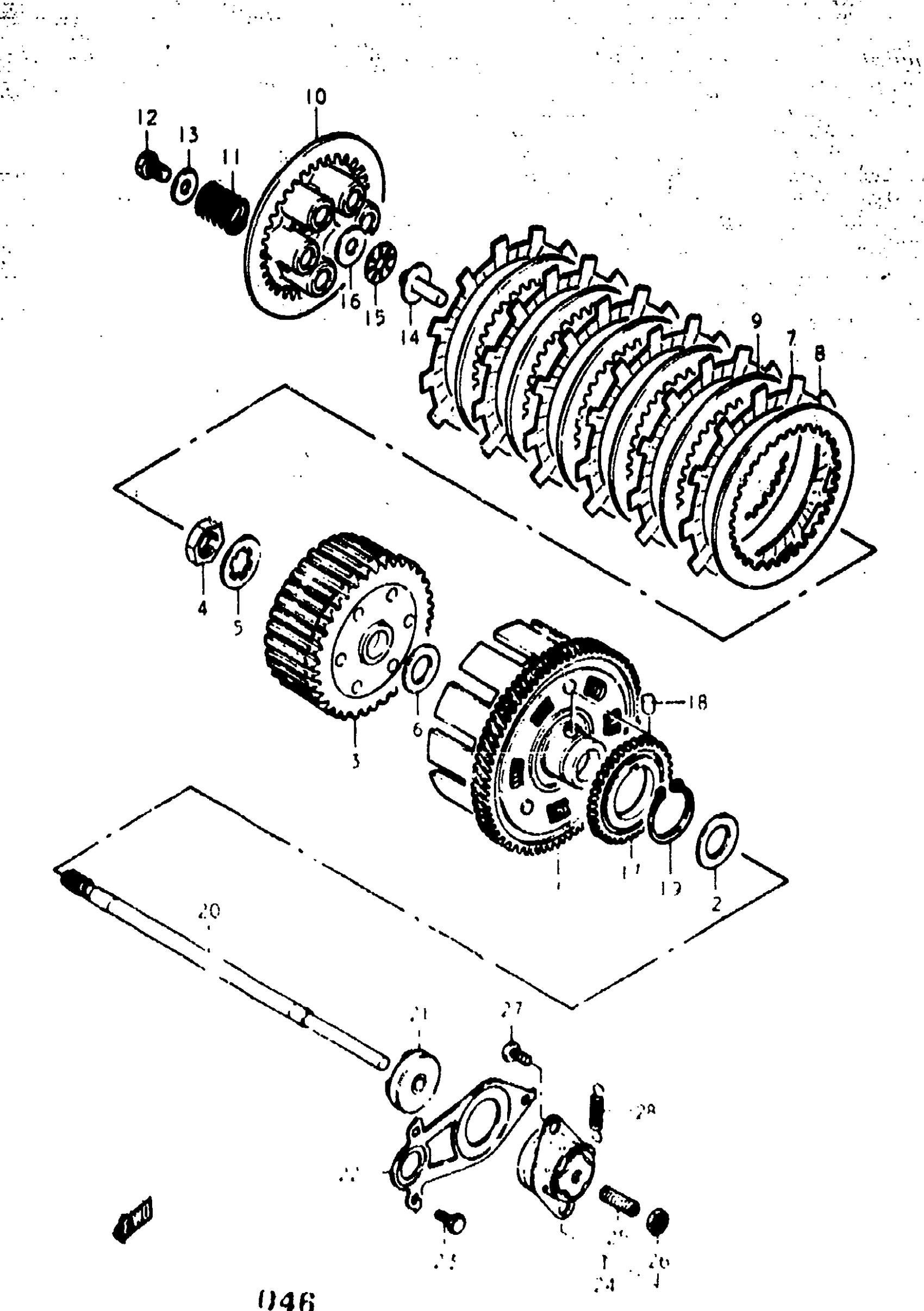

Suzuki GS400X (1977) CLUTCH Diagram

GEAR, PRIMARY DRIVEN | B,XB; NT:76

21200-44000

Unavailable

WASHER, RR FINAL DRIVE | B,XB This part replaces 08211-25381.

09181-25223

$3.21

HUB, SLEEVE | B,XB

21411-44001

Unavailable

NUT | B,XB This part replaces 09140-20002.

09140-20001

$3.37

LOCK WASHER | B,XB This part replaces 09167-20006.

09167-20009

$2.03

WASHER | B,XB

09160-20028

Unavailable

PLATE, DRIVE | B,XB This part replaces 21441-45000.

21441-45001

$24.07

PLATE, DRIVEN NO.1 | B,XB

21451-31000

$10.40

PLATE,CLUTCH DRIVEN (T:1.6) | B,XB This part replaces 21451-45000.

21451-28C31

$11.81

PLATE, PRESSURE | B,XB This part replaces 21462-16500.

21462-14301

$59.33

SPRING | B,XB

09440-19004

$2.50

BOLT, CANISTER | B,XB This part replaces 01112-06168.

01500-06167

$1.97

WASHER (6.5X20X1.6) | B,XB; 15.5x24x2.3 This part replaces 09160-06020.

09160-06066

$1.89

PIECE, PUSH | B,XB This part replaces 23121-44001.

23121-44100

$25.75

BEARING | B,XB

09263-15003

$8.29

WASHER, CLUTCH PUSH | B,XB; 15x28x1 This part replaces 09160-15015.

09160-15045

$3.89

GEAR, OIL PUMP DRIVE (NT:38) | B,XB; NT:38 This part replaces 16321-44000.

16321-44001

Unavailable

PIN | B,XB

04221-06069

Unavailable

CLIP | B,XB This part replaces 08331-31389.

08331-31383

$3.42

ROD, PUSH | B,XB This part replaces 23100-44001.

23100-44101

Unavailable

SEAL, CLUTCH PUSH ROD | B,XB This part replaces 09283-06001.

09285-06011

$8.24

HOLDER, OIL SEAL | B,XB

23117-44000

Unavailable

BOLT | B,XB This part replaces 01112-06128.

01500-06127

$1.97

NO DESCRIPTION AVAILABLE | B,XB; Includes Item(s) 25 - 26 This part replaces 23200-44000.

23200-44002

Unavailable

SCREW | B,XB This part replaces 09134-06001.

09134-06010

$3.12

.NUT | B,XB This part replaces 08311-31068.

08310-00067

$2.13

SCREW | B,XB This part replaces 02112-06128.

02112-06127

$1.84

SPRING | B,XB

09443-08001

$2.92
