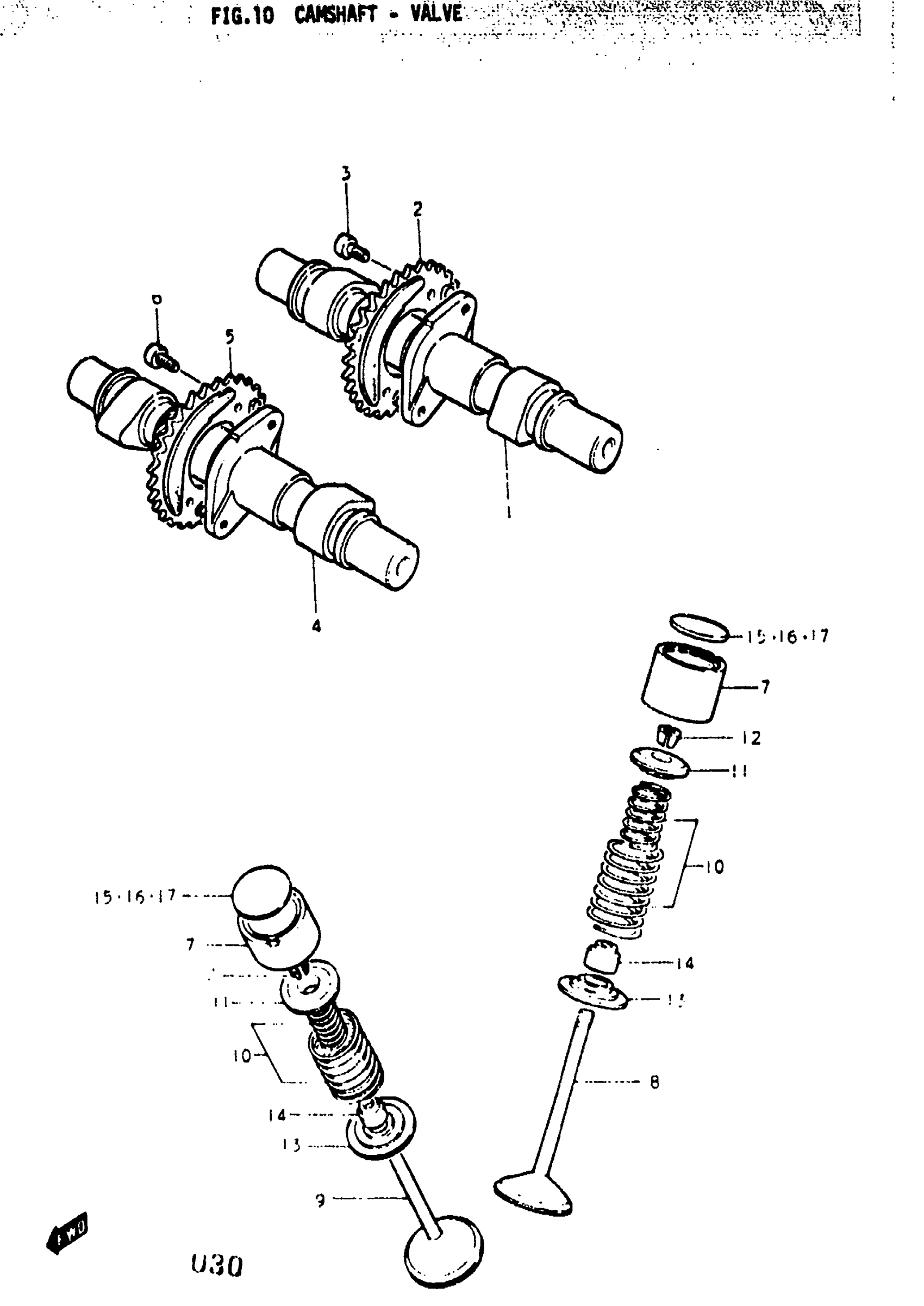

Suzuki GS400X (1977) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE | B,XB This part replaces 12711-44000.

12711-44101

Unavailable

2

SPROCKET, INTAKE (NT:30) | B,XB; NT:30 This part replaces 12740-45040.

12740-45042

Unavailable

3

BOLT, NO.3 | B,XB This part replaces 09106-06024.

07130-0610B

$3.21

4

NO DESCRIPTION AVAILABLE | B,XB This part replaces 12721-44000.

12721-44011

Unavailable

5

SPROCKET (NT:30) | B,XB; NT:30 This part replaces 12750-45040.

12750-45041

Unavailable

6

BOLT, NO.3 | B,XB This part replaces 09106-06024.

07130-0610B

$3.21

7

TAPPET | B,XB This part replaces 12891-45000.

12891-45001

$56.05

8

VALVE, INTAKE | B,XB This part replaces 12911-45010.

12911-45030

Unavailable

9

VALVE, EXHAUST | B,XB This part replaces 12912-45010.

12912-45021

Unavailable

10

SPRING SET,VALV | B,XB This part replaces 12900-45810.

12920-45011

$18.48

11

RETAINER, VALVE SPRING | B,XB This part replaces 12931-45000.

12931-45001

$8.12

12

COTTER, VALVE | B,XB This part replaces 12932-45000.

12932-45010

$2.37

13

SEAT, SPRING | B,XB This part replaces 12933-45000.

12933-45001

$6.27

14

OIL SEAL, INTAKE | B,XB

09289-07002

$7.98

15

SHIM, TAPPET (T:2.15) | B,XB; (0~4) T:2.15 This part replaces 12892-45000.

12892-45000-215

$21.65

15

SHIM, TAPPET (T:2.20) | B,XB; (0~4) T:2.20 This part replaces 12892-45001.

12892-45000-220

$21.65

15

SHIM, TAPPET (T:2.25) | B,XB; (0~4) T:2.25 This part replaces 12892-45002.

12892-45000-225

$21.65

15

SHIM, TAPPET (T:2.30) | B,XB; (0~4) T:2.30 This part replaces 12892-45003.

12892-45000-230

$21.65

15

SHIM, TAPPET (T:2.35) | B,XB; (0~4) T:2.35 This part replaces 12892-45004.

12892-45000-235

$21.65

15

SHIM, TAPPET (T:2.40) | B,XB; (0~4) T:2.40 This part replaces 12892-45005.

12892-45000-240

$21.65

15

SHIM, TAPPET (T:2.45) | B,XB; (0~4) T:2.45 This part replaces 12892-45006.

12892-45000-245

$20.88

15

SHIM, TAPPET (T:2.50) | B,XB; (0~4) T:2.50 This part replaces 12892-45007.

12892-45000-250

$20.88

15

SHIM, TAPPET (T:2.55) | B,XB; (0~4) T:2.55 This part replaces 12892-45008.

12892-45000-255

$20.88

16

SHIM, TAPPET (T:2.60) | B,XB; (0~4) T:2.60 This part replaces 12892-45009.

12892-45000-260

$17.42

16

SHIM, TAPPET (T:2.65) | B,XB; (0~4) T:2.65 This part replaces 12892-45010.

12892-45000-265

$17.75

16

SHIM, TAPPET (T:2.70) | B,XB; (0~4) T:2.70 This part replaces 12892-45011.

12892-45000-270

$17.75

16

SHIM, TAPPET (T:2.75) | B,XB; (0~4) T:2.75 This part replaces 12892-45012.

12892-45000-275

$21.65

16

SHIM, TAPPET (T:2.80) | B,XB; (0~4) T:2.80 This part replaces 12892-45013.

12892-45000-280

$17.75

16

SHIM, TAPPET (T:2.85) | B,XB; (0~4) T:2.85 This part replaces 12892-45014.

12892-45000-285

$21.65

16

SHIM, TAPPET (T:2.90) | B,XB; (0~4) T:2.90 This part replaces 12892-45015.

12892-45000-290

$21.65

16

SHIM, TAPPET (T:2.95) | B,XB; (0~4) T:2.95 This part replaces 12892-45016.

12892-45000-295

$21.65

16

SHIM, TAPPET (T:3.00) | B,XB; (0~4) T:3.00 This part replaces 12892-45017.

12892-45000-300

Unavailable

17

SHIM, TAPPET (T:3.05) | B,XB; (0~4) T:3.05 This part replaces 12892-45018.

12892-45000-305

$21.65

17

SHIM, TAPPET (T:3.10) | B,XB; (0~4) T:3.10 This part replaces 12892-45019.

12892-45000-310

$21.65

18

SHIM SET | B,XB This part replaces 12800-45810.

12800-45811

Unavailable
