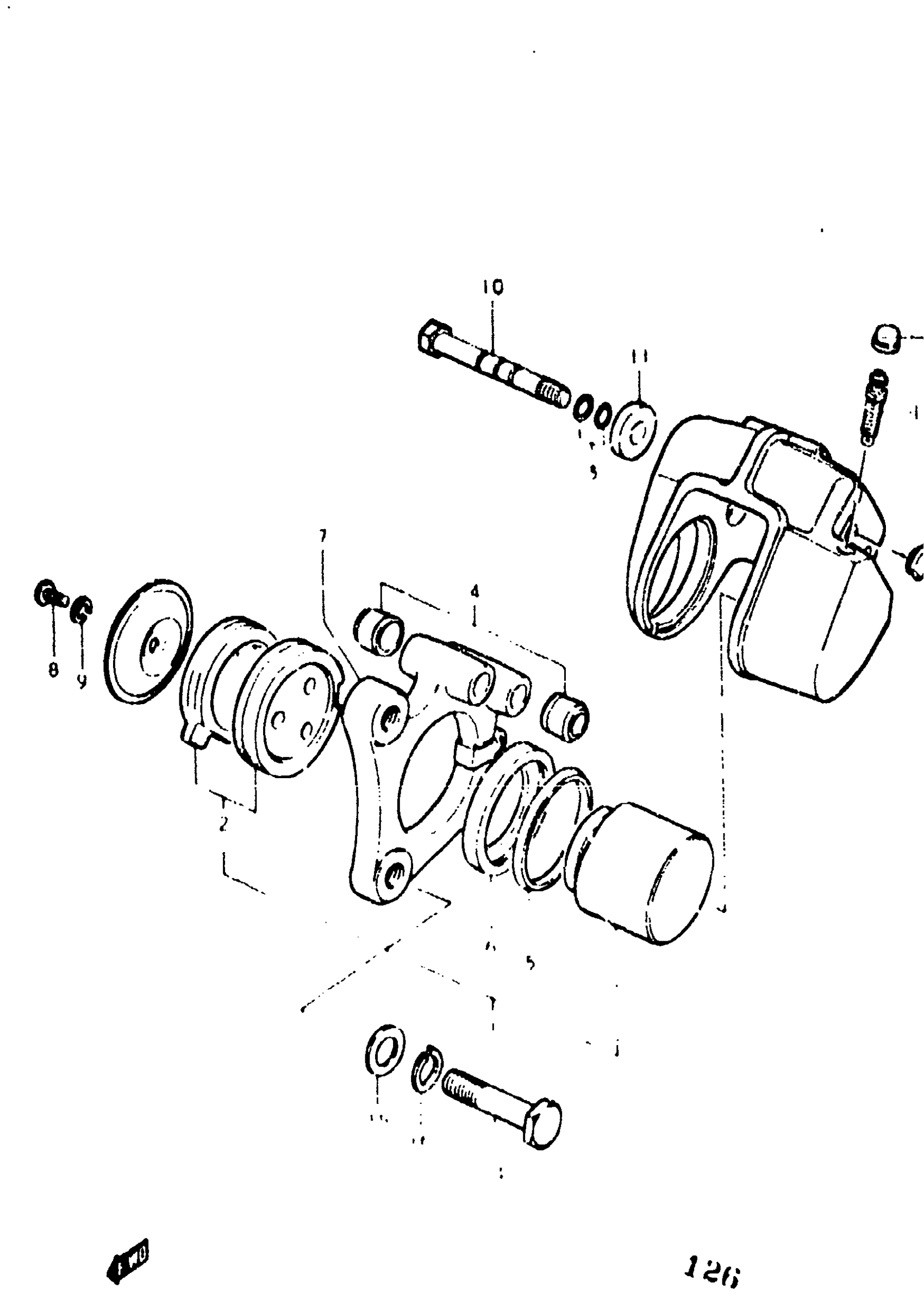

Suzuki GS400X (1977) CALIPERS (GS400B) Diagram

#

Description
Price

0

CARIPERS ASSY | Includes Item(s) 1 - 13 This part replaces 59300-45000.

59300-45002

Unavailable

1

PISTON SET This part replaces 59100-45810.

59100-45813

Unavailable

2

PAD SET This part replaces 59100-45820.

59302-45830

Unavailable

3

O RING

59111-18410

Unavailable

4

DUST COVER, AXLE

59312-45000

Unavailable

5

PISTON SEAL This part replaces 55136-66310.

69107-38B00

$9.79

6

BOOT, PISTON

59308-45000

Unavailable

7

HOLDER, CARIPERS

59350-45000

Unavailable

8

SCREW This part replaces 02112-06128.

02112-06127

$1.84

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

AXLE, CARIPERS

59305-45000

Unavailable

11

WASHER, AXLE

59371-45000

Unavailable

12

BREATHER

59121-18410

$8.73

13

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

14

BOLT (10X38) This part replaces 09104-10007.

09104-10029

$3.55

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
