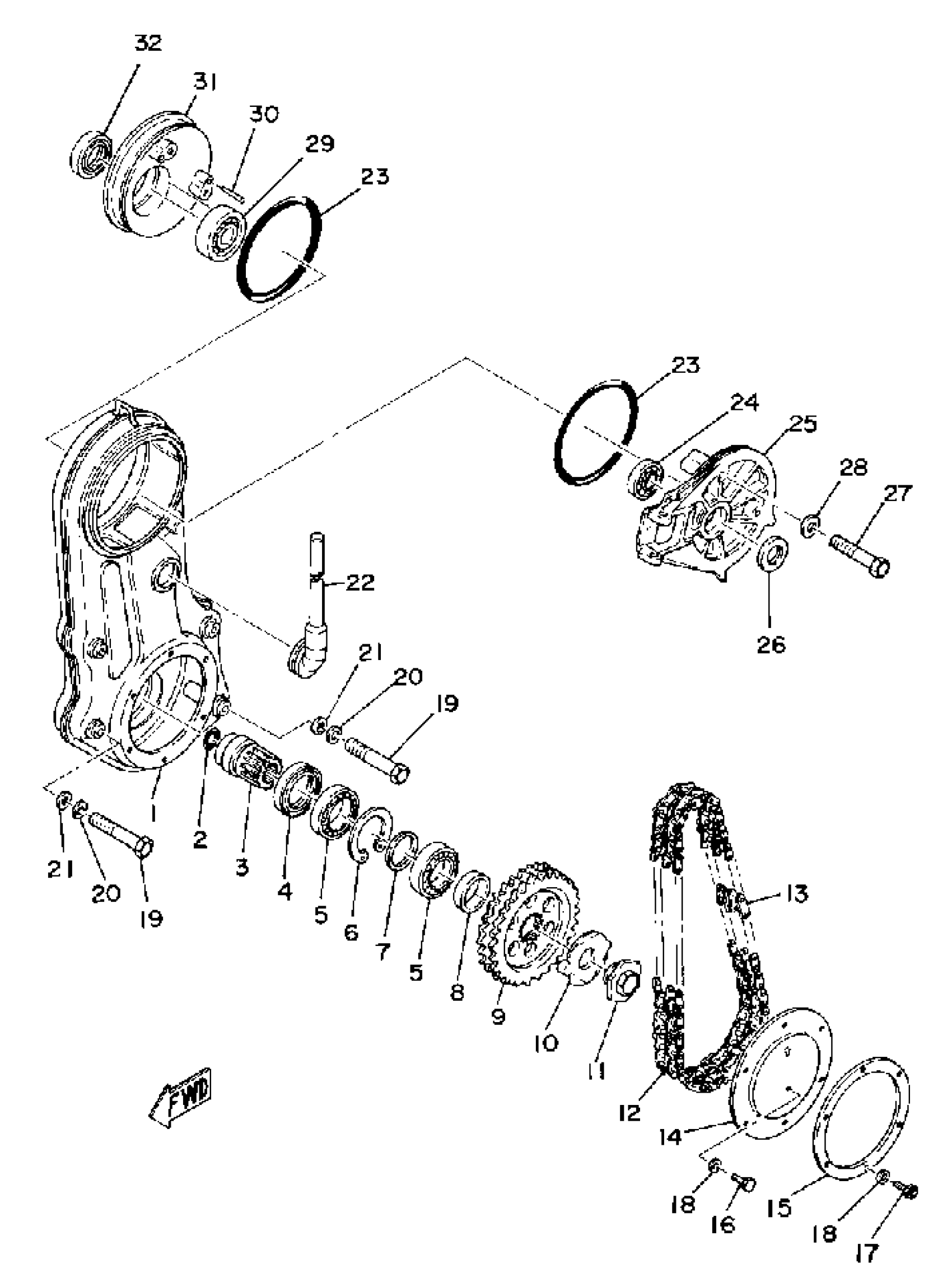

Find the part on the Track Drive diagram for your 1977 Yamaha GS340A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GS340A Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(841-47541-00-35)

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL 1

(841-47571-00-00)

1
Out of stock

4

OIL SEAL, SD-TYPE

93102-40080-00

1
Out of stock

5

BEARING

93306-90702-00

1
Out of stock

6

CIRCLIP, R-TYPE

93420-55028-00

1
Out of stock

7

SPACER

90560-35050-00

1
Out of stock

8

COLLAR

90387-35206-00

1
Out of stock

9

SPROCKET, CHN DRVN

(802-47548-40-00)

1
Out of stock

9

SPROCKET, CHN DRVN

802-47548-50-00

1
Out of stock

9

SPROCKET, CHN DRVN

(802-47548-60-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(835-47548-20-00)

1
Out of stock

10

WASHER, LOCK

90215-24029-00

1
Out of stock

11

BOLT

90109-24203-00

1
Out of stock

11

CHAIN

94804-25068-00

1
Out of stock

13

. JOINT CHAIN

94904-25001-00

1
Out of stock

14

CAP, HOUSING

(8E3-47543-00-00)

1
Out of stock

15

GASKET

8E3-47544-00-00

1
Out of stock

16

BOLT

97380-05008-00

1
Out of stock

17

SCREW, HEXAGON

(90153-05017-00)

1
Out of stock

18

WASHER, SEAL

90210-05005-00

1
Out of stock

19

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

22

CAP 2

(861-47559-00-00)

1
Out of stock

23

O-RING

93211-13109-00

1
Out of stock

24

—

$31.64

In stock

25

HOUSING, SEC SHAFT

(818-47561-00-00)

1
Out of stock

26

OIL SEAL (22X32X5-818)

93102-22087-00

—

$10.68

In stock

27

BOLT (663)

97013-08060-00

—

$3.25

In stock

28

WASHER (821)

90210-08002-00

—

$5.68

In stock

29

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—

$58.51

In stock

30

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

31

HOUSING, SEC SHAFT

810-47562-00-00

1
Out of stock

32

OIL SEAL (30X47X7-810)

93102-30083-00

—

$11.08

In stock
