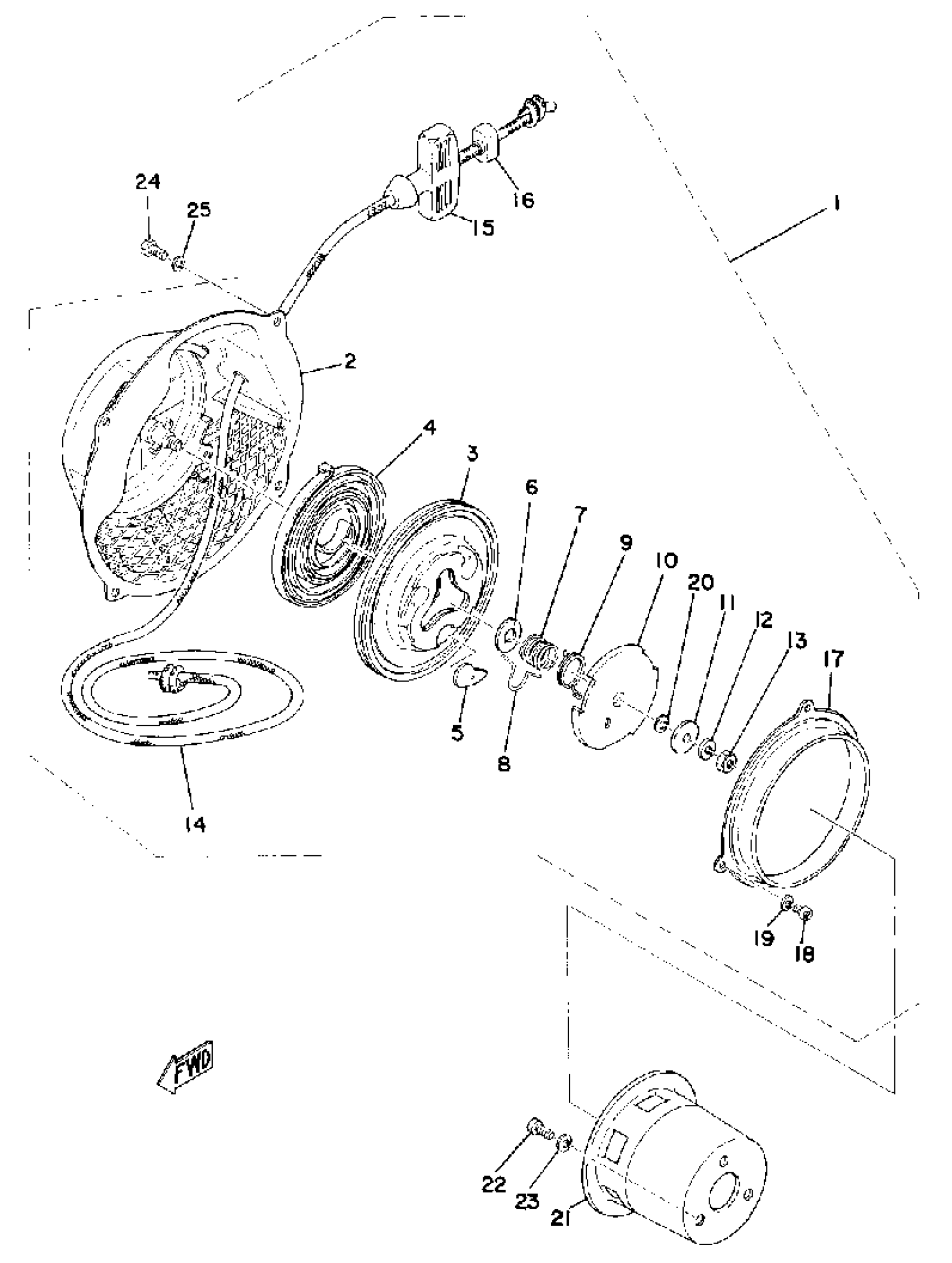

Yamaha GS340A 1977 STARTER Diagram

#

Description
Price

1

STARTER ASSEMBLY

(821-15710-00-00)

Unavailable

2

CASE, STARTER

(821-15711-00-00)

Unavailable

3

. DRUM, SHEAVE

857-15714-00-00

Unavailable

4

SPRING, STARTER

8F3-15713-01-00

$48.99

5

. PAWL, DRIVE

616-15741-01-00

Unavailable

6

WASHER, FLAT

(802-15726-00-00)

Unavailable

7

SPRING,DRIVE PLATE

626-15715-01-00

Unavailable

8

. SPRING, RETURN

811-15784-00-00

Unavailable

9

. SPRING, RETURN

811-15734-00-00

Unavailable

10

. PLATE, DRIVE

811-15716-00-00

Unavailable

11

WASHER,FLAT

807-15726-01-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

. NUT

95380-08700-00

Unavailable

14

ROPE, STARTER

(807-15751-00-00)

Unavailable

15

. HANDLE, STARTER

807-15755-00-00

Unavailable

16

. CONNECTOR 1

619-15756-00-00

Unavailable

17

COVER, SHEAVE

(811-15782-00-00)

Unavailable

18

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

19

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

20

SHIM

(811-15722-00-00)

Unavailable

21

PULLEY, STARTER

(811-15723-00-00)

Unavailable

22

BOLT(JA9)

90101-08691-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

24

BOLT, HEXAGON

97017-06016-00

Unavailable

25

WASHER, SPRING

92907-06100-00

Unavailable
