FUEL TANK

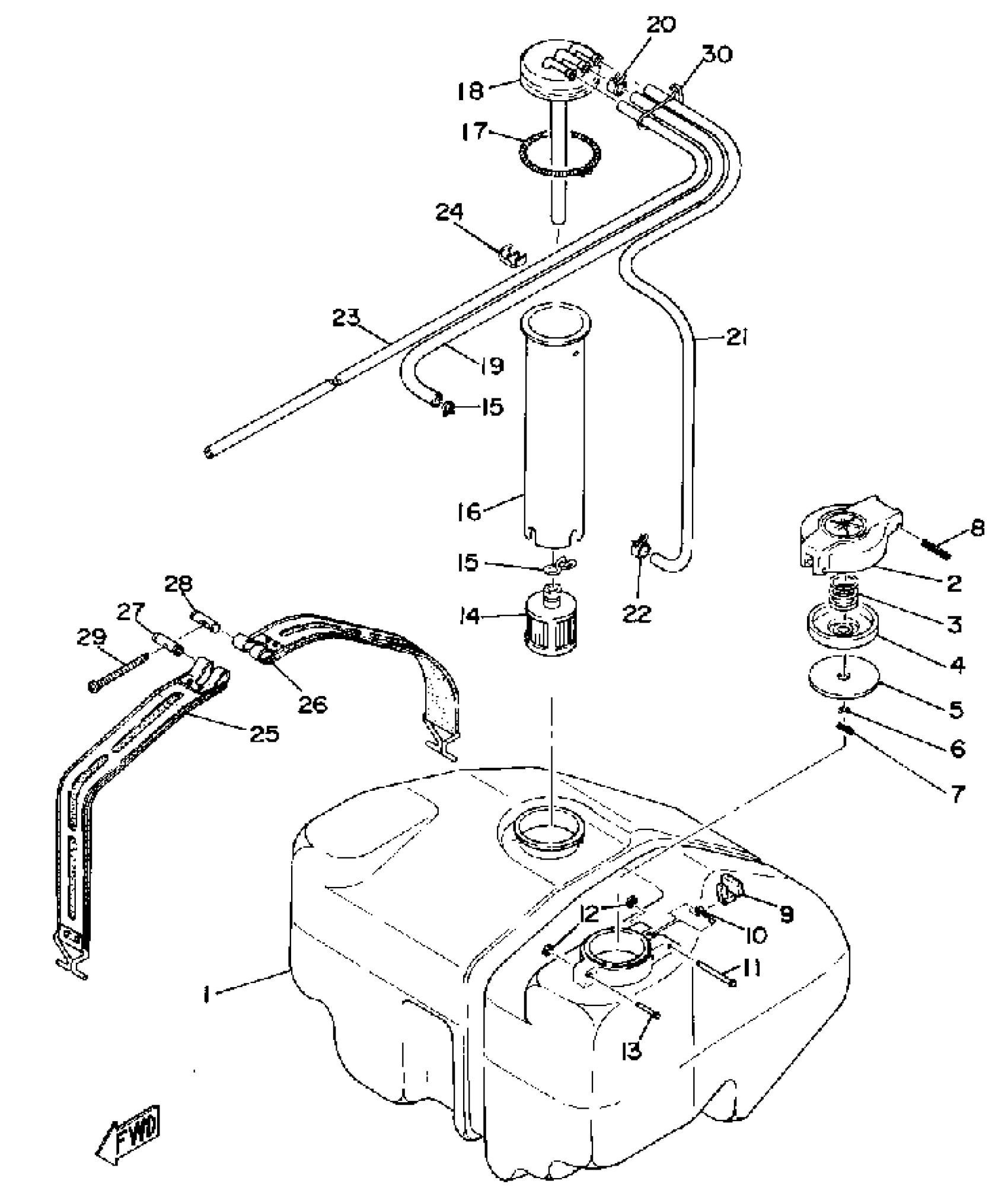

Yamaha GS340A 1977 FUEL TANK Diagram
#
1
FUEL TANK
865-24111-00-00
Unavailable
2
BODY, CAP
8A5-24611-00-00
Unavailable
3
SPRING, CAP
90501-20130-00
$8.49
4
DISK,CAP
813-24613-01-00
$20.99
5
GASKET, CAP
256-24612-00-00
Unavailable
6
O-RING (256)
93210-04122-00
$8.49
7
PIN, SPRING
91690-30016-00
Unavailable
8
PIN, SPRING
91609-25032-00
$2.49
9
HOOK
83M-24628-00-00
$24.99
10
SPRING, TORSION (813-24637-00)
90508-08003-00
Unavailable
11
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
12
CIRCLIP (604)
93430-02001-00
$8.49
13
PIN (813)
90249-03017-00
$7.49
14
FILTER ASSY
8H5-24560-00-00
Unavailable
15
CLIP (8J7)
90467-11009-00
$10.49
16
PIPE, SUCTION 2
865-24336-00-00
Unavailable
17
SPRING, TENSION (8R4)
90506-06261-00
Unavailable
18
PIPE, SUCTION 1
(865-24335-00-00)
Unavailable
19
HOSE
(90446-11035-00)
Unavailable
20
CLIP
90467-11028-00
Unavailable
21
HOSE
(90446-09129-00)
Unavailable
22
CLIP (8A1)
90467-09026-00
Unavailable
23
HOSE
90446-09057-00
Unavailable
24
CLIP (867)
90468-15020-00
Unavailable
25
BAND, TNK FITTING 1
865-24173-00-00
Unavailable
26
BAND, TNK FITTING 2
(865-24199-00-00)
Unavailable
27
CLAMP
806-24135-00-00
Unavailable
28
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
Unavailable
29
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
Unavailable
30
CLAMP
(90465-11025-00)
Unavailable
