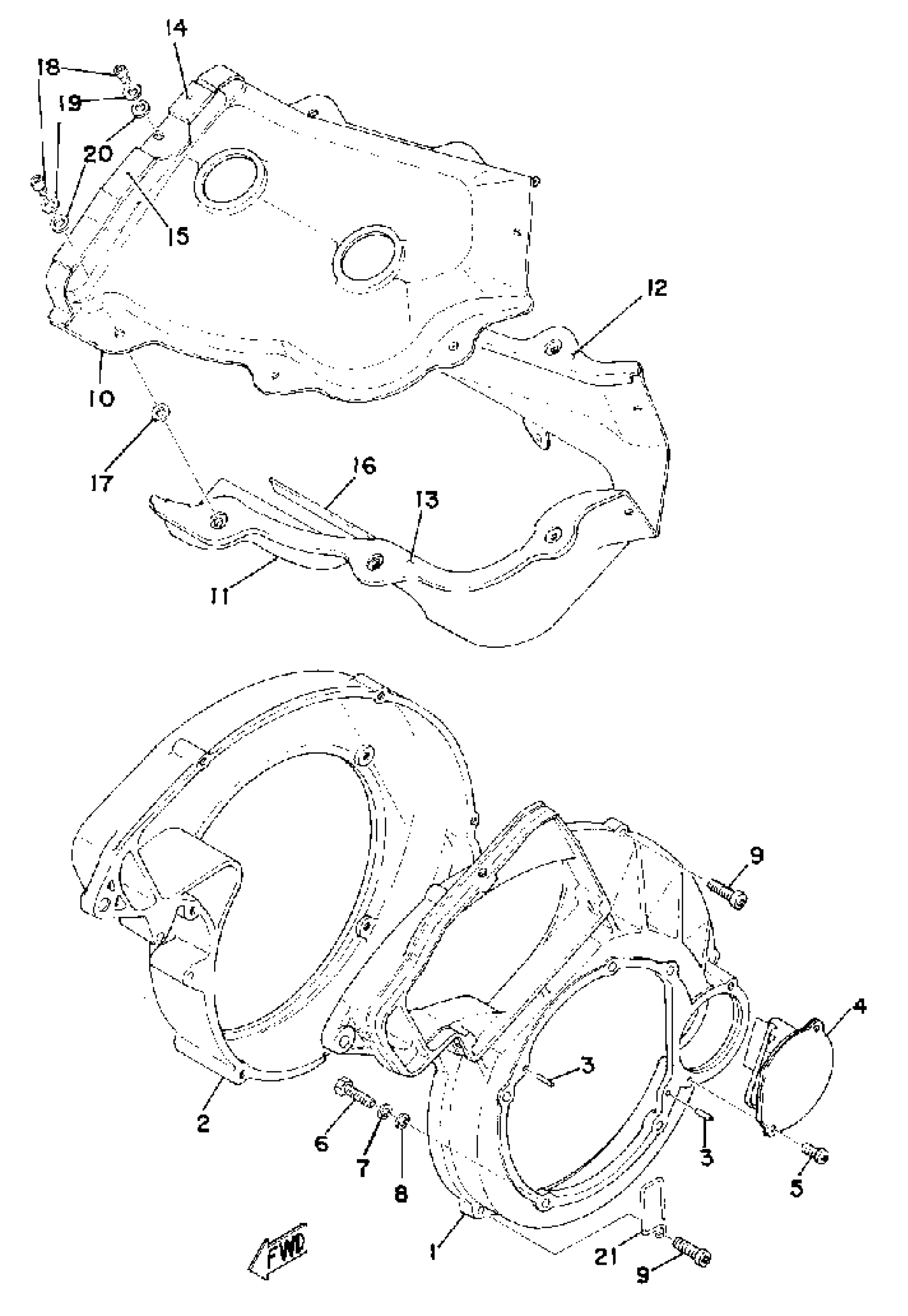

Yamaha GS340A 1977 FAN CASE - AIR SHROUD Diagram

#

Description

Price

1

CASE, FAN

(838-12621-00-00)

Unavailable

2

CASE, FAN 2

838-12622-00-00

Unavailable

3

PIN,DOWEL (168)

93604-12037-00

$8.49

4

PLATE

(893-12633-00-00)

Unavailable

5

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

AIR SHROUD, CYLINDER 1

(8A0-12651-00-00)

Unavailable

11

AIR SHROUD, CYLINDER 1

840-12651-00-00

Unavailable

12

DAMPER, AIR SHRD 1

(8A1-12658-00-00)

Unavailable

13

DAMPER, AIR SHRD 2

(8A1-12659-00-00)

Unavailable

14

DAMPER, AIR SHRD 3

(8A1-12668-00-00)

Unavailable

15

DAMPER, AIR SHRD 4

(8A1-12669-00-00)

Unavailable

16

DAMPER, SHROUD 5

(8A1-12678-00-00)

Unavailable

17

WASHER, PLATE

(90201-08568-00)

Unavailable

18

SCREW, PAN

98517-06012-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

WASHER(6TA)

92907-06600-00

Unavailable

21

CLAMP, OIL PIPE

(841-24369-00-00)

Unavailable
