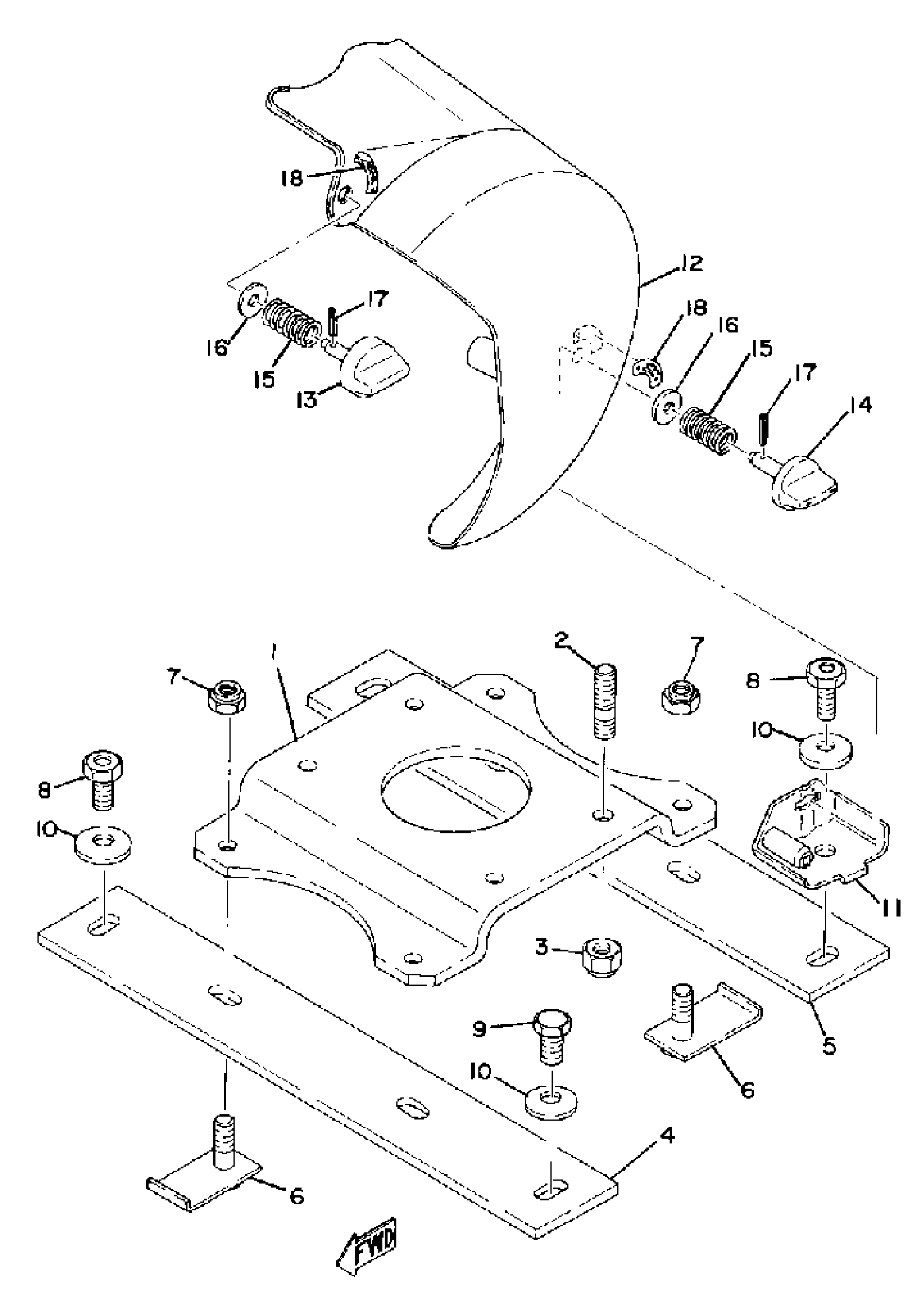

Yamaha GS340A 1977 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

(838-21411-01-00)

Unavailable

2

BOLT, STUD

(90116-10084-00)

Unavailable

3

NUT, SELF-LOCKING

90185-10030-00

Unavailable

4

BRACKET, ENGINE 2

(841-21419-00-00)

Unavailable

5

BRACKET, ENGINE 2

(829-21419-00-00)

Unavailable

6

BOLT, ENG MNTNG 2

(829-21482-00-00)

Unavailable

7

NUT, SELF-LOCKING

90185-10030-00

Unavailable

8

BOLT

(90101-10057-00)

Unavailable

9

BOLT, DOME HEAD

(90106-10015-00)

Unavailable

10

WASHER, CONICAL SPR

90208-10013-00

Unavailable

11

BRACKET 1

844-77315-00-00

Unavailable

12

GUARD, DRIVE

(844-77311-00-00)

Unavailable

13

KNOB

(829-77324-00-00)

Unavailable

14

KNOB

844-77324-00-00

Unavailable

15

SPRING 1

806-77325-00-00

Unavailable

16

WASHER, PLATE

90201-08104-00

Unavailable

17

PIN SPRING(664)

91690-40018-00

Unavailable

18

EMBLEM 12

(829-77367-00-00)

Unavailable
