Description

Price

1

IGNITION COIL ASSEMBLY

838-82310-40-00

Unavailable

2

IGNITION COIL ASSEMBLY

(839-82310-40-00)

Unavailable

3

COVER, IGNITN COIL

(838-82314-00-00)

Unavailable

4

SCREW, PAN HEAD

98507-06070-00

$9.99

5

WASHER, SPRING

92907-06100-00

$4.25

6

NUT(6TA)

95317-06600-00

$3.55

7

CLAMP, CORD

861-82361-00-00

Unavailable

8

PLUG CAP ASSEMBLY

899-82370-20-00

Unavailable

9

MAIN SWITCH ASSEMBLY

898-82508-20-00

Unavailable

10

COLLAR, MAIN SWITCH

806-82516-00-00

Unavailable

11

STOP SWITCH ASSEMBLY

8J7-82550-01-00

Unavailable

12

CAP, SWITCH

8H8-82552-09-00

$48.99

13

SWITCH, HANDLE 1

8E3-83976-02-00

$100.99

14

WIRE HARNESS ASSEMBLY

(8E3-82590-20-00)

Unavailable

15

WIRE, EARTH LEAD

(838-82519-00-00)

Unavailable

16

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

Unavailable

17

BOLT(8CP)

97017-06014-00

Unavailable

18

NUT, NYLON

95707-06300-00

Unavailable

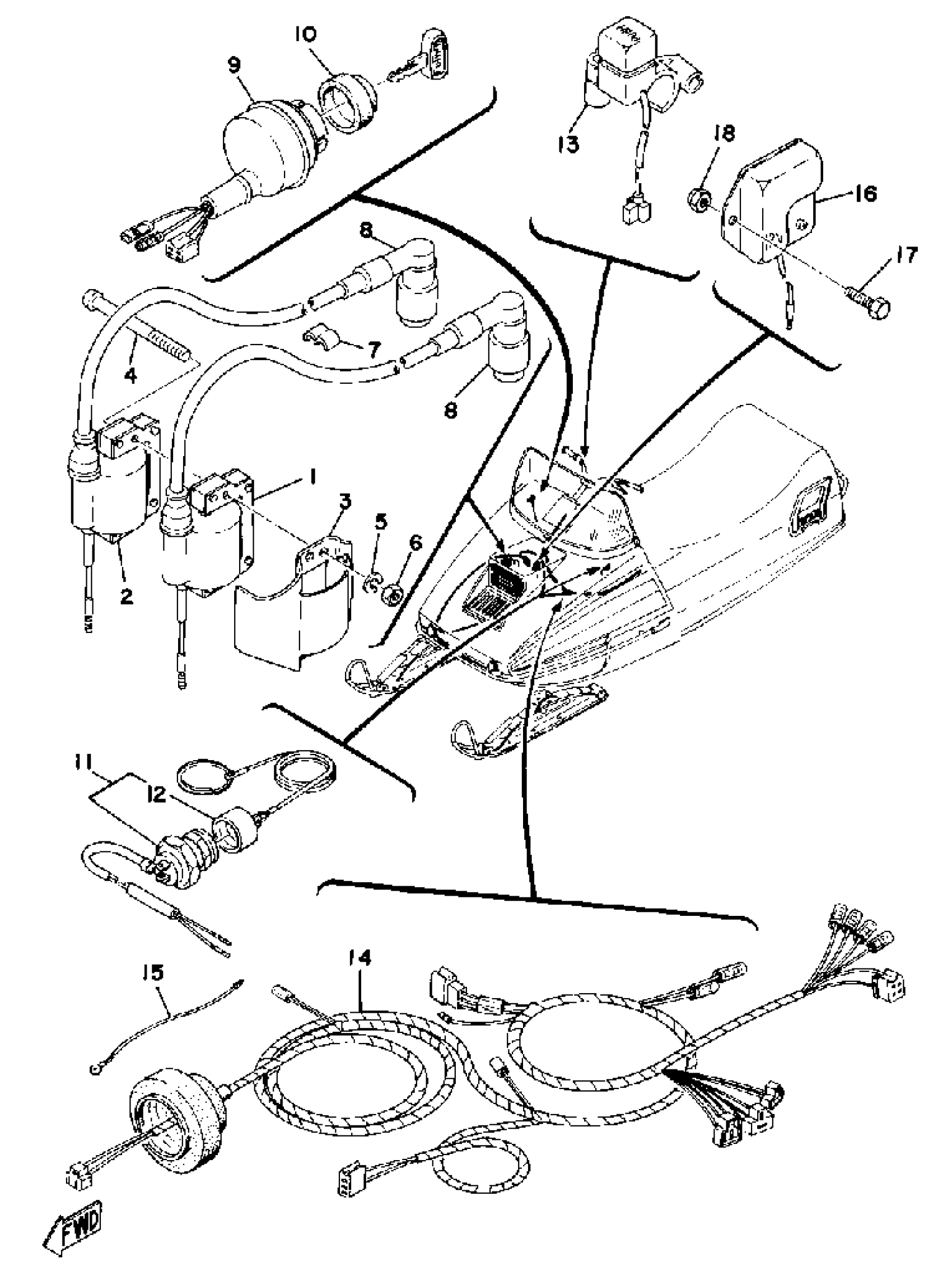

Yamaha GS340A 1977 ELECTRICAL Diagram

IGNITION COIL ASSEMBLY

IGNITION COIL ASSEMBLY

COVER, IGNITN COIL

SCREW, PAN HEAD

WASHER, SPRING

NUT(6TA)

CLAMP, CORD

PLUG CAP ASSEMBLY

MAIN SWITCH ASSEMBLY

COLLAR, MAIN SWITCH

STOP SWITCH ASSEMBLY

CAP, SWITCH

SWITCH, HANDLE 1

WIRE HARNESS ASSEMBLY

WIRE, EARTH LEAD

VOLTAGE REGULATOR ASSY

BOLT(8CP)

NUT, NYLON
