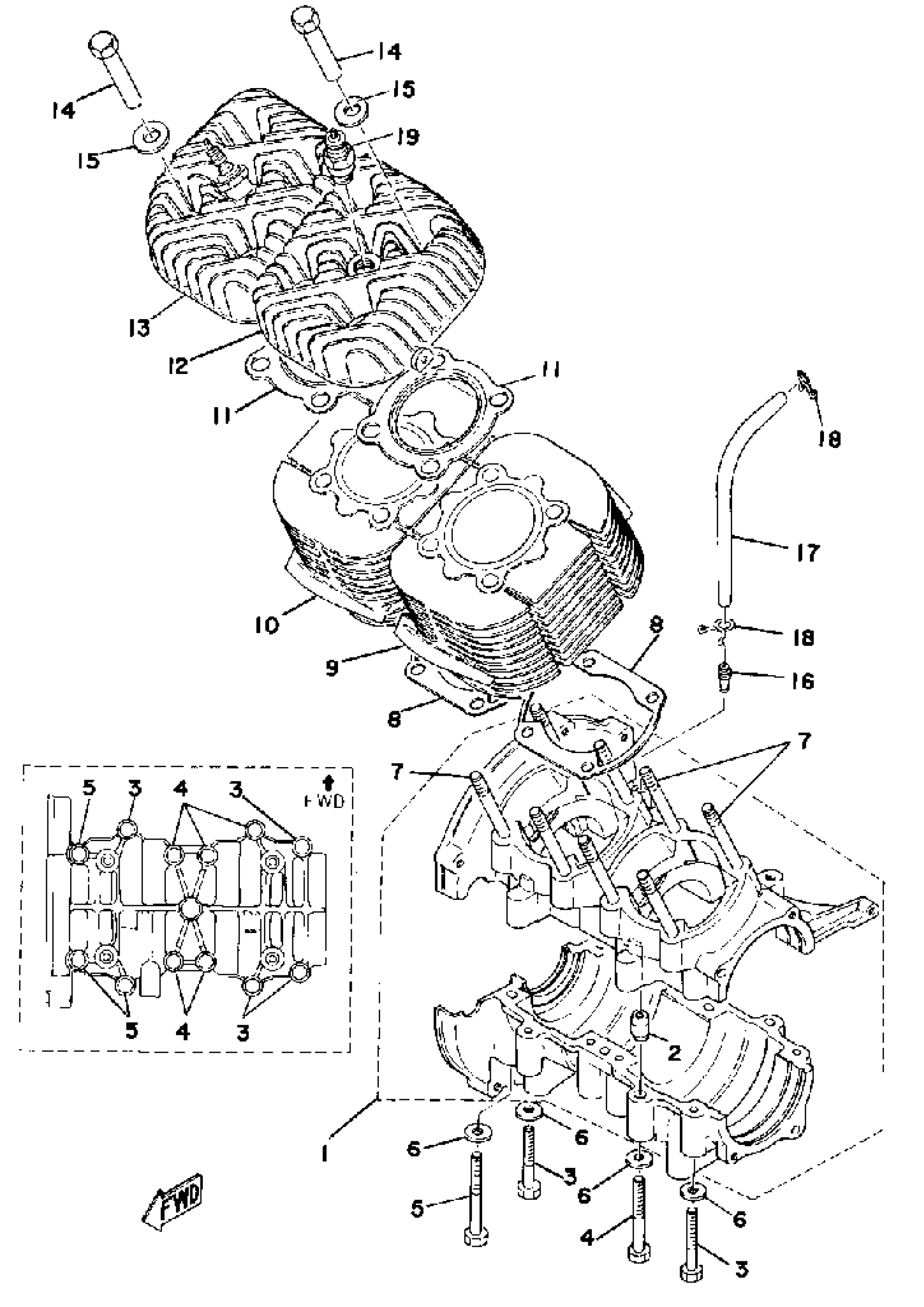

Yamaha GS340A 1977 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(846-15100-00-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

BOLT, HEXAGON

97013-08050-00

Unavailable

4

BOLT (663)

97013-08060-00

$4.41

5

BOLT(6TC)

97027-08070-00

Unavailable

6

.. WASHER, PLATE

92990-08600-00

Unavailable

7

BOLT (248-11361-00)

90116-08064-00

$7.49

8

GASKET, CYLINDER

846-11351-02-00

$5.49

9

CYLINDER 1

859-11311-00-00

Unavailable

10

CYLINDER 2

(859-11321-00-00)

Unavailable

11

GASKET, CYL HEAD 1

8A6-11181-09-00

Unavailable

12

HEAD, CYLINDER 1

(859-11111-00-00)

Unavailable

13

HEAD, CYLINDER 2

(859-11121-00-00)

Unavailable

14

NUT, SPEC''L SHAPE

90179-08090-00

Unavailable

15

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

16

JOINT, BREATHER

J38-11116-00-00

Unavailable

17

HOSE (L450)

90445-10144-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

BR7HS NGK SPLG 4PK

BR7-HS000-00-00

Unavailable
