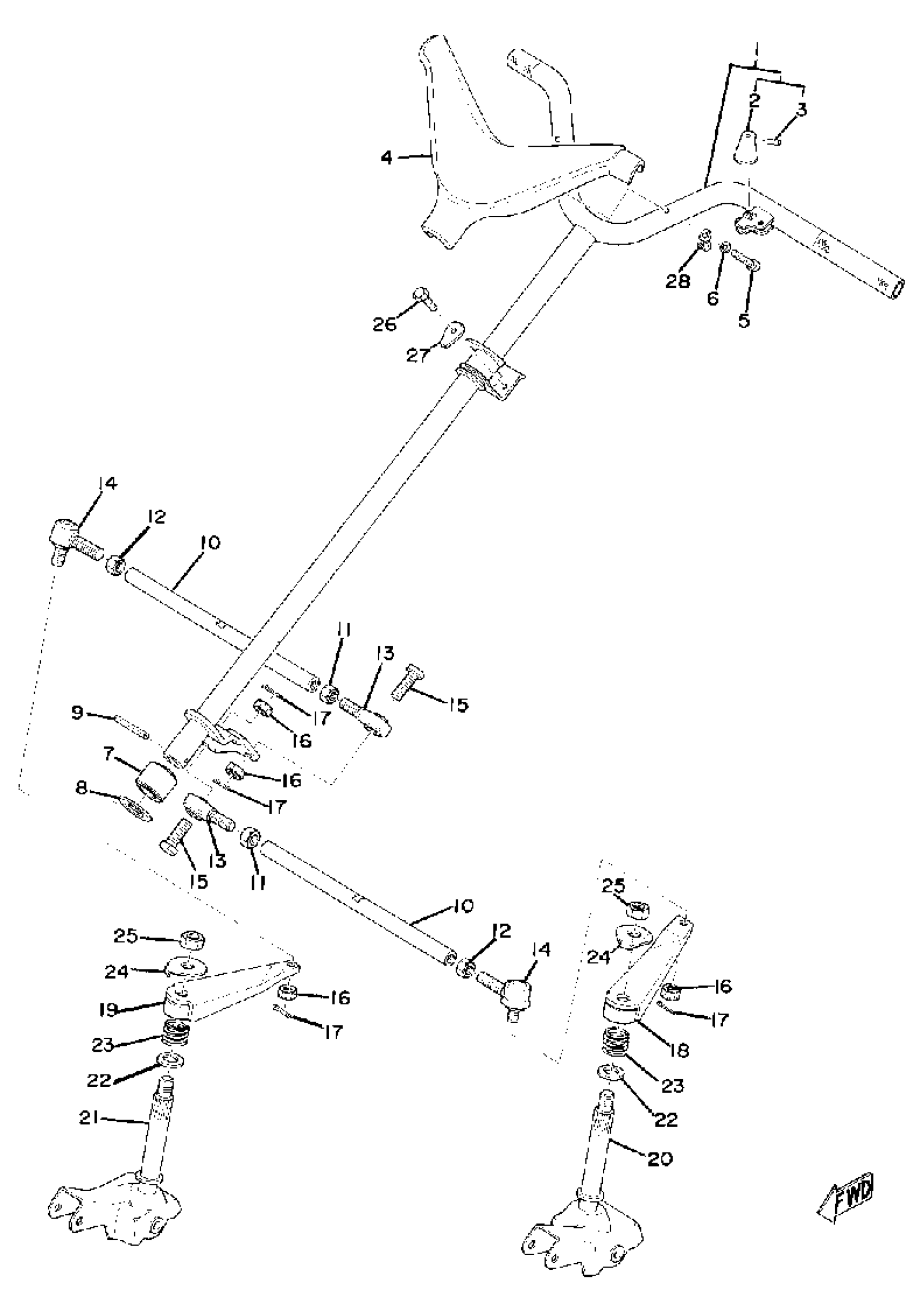

Yamaha GS340 1976 STEERING Diagram

#

Description
Price

1

STRG COLUMN ASSEMBLY

(861-23810-01-00)

Unavailable

2

LEVER, LOCK

(803-83965-00-00)

Unavailable

3

PIN, SPEC''L SHAPE

(90249-04022-00)

Unavailable

4

PAD, STEERING

(863-23815-01-00)

Unavailable

5

SCREW, PAN

98507-05035-00

$8.49

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

BEARING, STRG LOWER

(806-23875-00-00)

Unavailable

8

BEARING, STEERING

(841-23812-01-00)

Unavailable

9

PIN, SPRING

91609-60045-00

Unavailable

10

ROD, STEERING RELAY

(861-23821-00-00)

Unavailable

11

NUT, HEXAGON SMALL

95317-12700-00

$8.49

12

NUT (821-23834-00)

90170-12054-00

$8.49

13

JOINT, UNIVERSAL 1

861-23841-00-00

Unavailable

14

JOINT, UNIVERSAL 2

(821-23845-90-00)

Unavailable

15

BOLT

90109-10409-00

Unavailable

16

NUT, CASTLE

95307-10900-00

Unavailable

17

PIN, COTTER

91490-25020-00

Unavailable

18

ARM, OUTSIDE 1

899-23851-00-00

Unavailable

19

ARM, OUTSIDE 2

890-23852-00-00

Unavailable

20

COLUMN, SKI 1

(899-23853-00-00)

Unavailable

21

COLUMN, SKI 2

(899-23854-00-00)

Unavailable

22

SPACER

90560-20037-00

Unavailable

23

SPRING, COMPRESSION

90501-35154-00

Unavailable

24

WASHER, LOCK (810-23857-00)

90215-12031-00

Unavailable

25

NUT(3DM)

95304-12600-00

Unavailable

26

BOLT, HEXAGON

97017-06020-00

Unavailable

27

WASHER, LOCK

(90215-06038-00)

Unavailable

28

CLAMP

(90462-08003-00)

Unavailable
