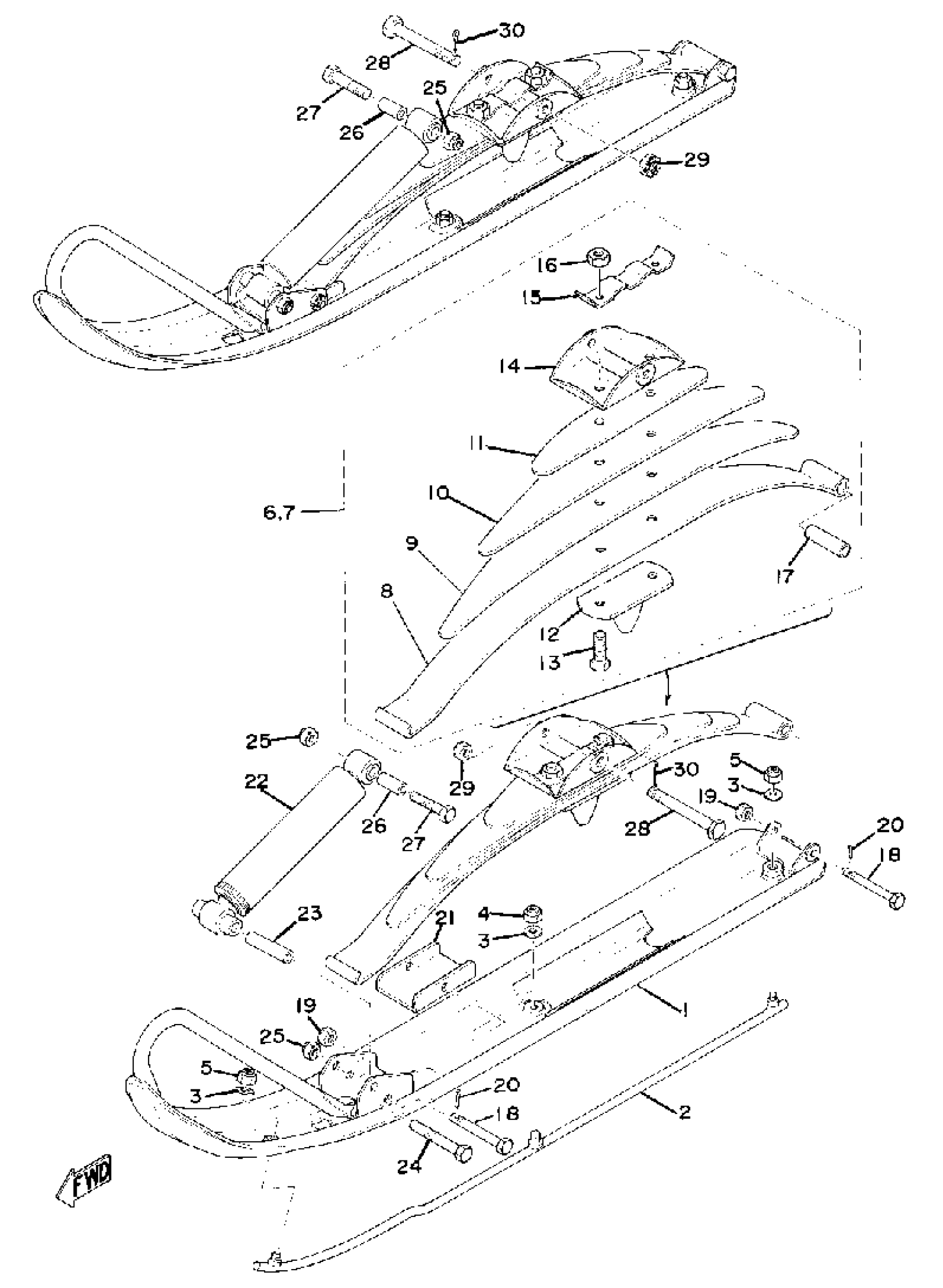

Yamaha GS340 1976 SKI Diagram
#
1
SKI COMP. 1
8E3-23710-09-00
Unavailable
2
RUNNER 1
890-23731-01-00
Unavailable
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
NUT
90185-08055-00
$9.49
5
NUT, U
95617-08100-00
$9.49
6
SPRING ASSEMBLY 1
899-23760-00-00
Unavailable
7
SPRING ASSEMBLY 2
(899-23770-00-00)
Unavailable
8
LEAF 1
888-23761-10-00
Unavailable
9
LEAF 2
865-23762-10-00
Unavailable
10
LEAF 3
899-23763-10-00
Unavailable
11
LEAF 4
899-23764-10-00
Unavailable
12
. SEAT, SPRING 1
878-23768-00-00
Unavailable
13
. BOLT
90109-105E7-00
Unavailable
14
SADDLE 1
(841-23766-00-00)
Unavailable
15
WASHER, ROCK (8J5)
90215-10155-00
$13.99
16
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
17
COLLAR
90387-08478-00
Unavailable
18
BOLT, WITH HOLE
90102-08025-00
Unavailable
19
NUT, SLOTTED
95307-08900-00
Unavailable
20
PIN, COTTER
91490-20025-00
Unavailable
21
PLATE, WEAR
888-23735-00-00
Unavailable
22
SHOCK ABSORBER ASSEMBLY
8F7-23350-00-00
Unavailable
23
COLLAR (864)
90387-08224-00
Unavailable
24
BOLT (6K8)
97013-08075-00
Unavailable
25
NUT, U
95617-08100-00
$9.49
26
COLLAR
90387-08223-00
Unavailable
27
BOLT
97013-08045-00
Unavailable
28
BOLT, WITH HOLE
90102-10024-00
Unavailable
29
NUT, SLOTTED
95306-10900-00
Unavailable
30
PIN, COTTER
91490-25020-00
Unavailable
