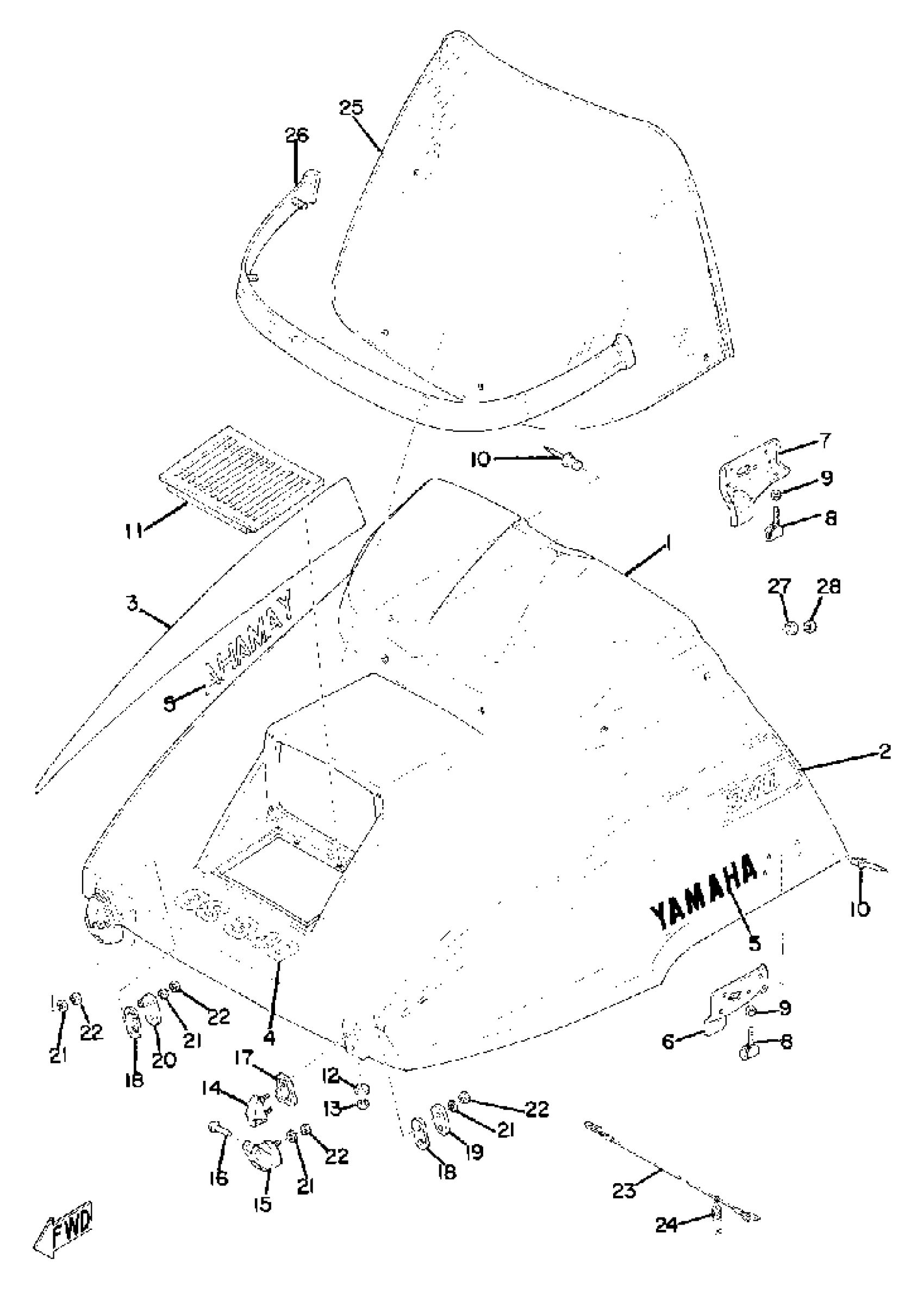

Yamaha GS340 1976 SHROUD Diagram

#

Description
Price

1

SHROUD

(853-77111-00-00)

Unavailable

2

ORNAMENT 1

8A0-77163-00-00

Unavailable

3

ORNAMENT 2

(8A0-77164-00-00)

Unavailable

4

EMBLEM 6

(8A0-77356-00-00)

Unavailable

5

EMBLEM 7

(838-77357-00-00)

Unavailable

6

CLAMP 2

(841-77136-00-00)

Unavailable

7

CLAMP 4

(841-77138-00-00)

Unavailable

8

BODY, LATCH 1

(878-77171-00-00)

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

RIVET, BLIND

90267-40936-00

Unavailable

11

LOUVER 1

853-77131-00-00

Unavailable

12

EMBLEM 3

838-77143-00-00

Unavailable

13

NUT 6504269100

90183-05003-00

$9.49

14

HINGEASSEMBLY

(841-77140-00-00)

Unavailable

15

HINGE 3

(841-77147-00-00)

Unavailable

16

PIN

90243-05003-00

Unavailable

17

DAMPER 2

841-77199-00-00

Unavailable

18

DAMPER 1

(841-77198-00-00)

Unavailable

19

PLATE, BACK UP 1

(841-77153-00-00)

Unavailable

20

PLATE, BACK UP 2

(841-77154-00-00)

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

STOPPER, SHROUD

8E4-77118-00-00

Unavailable

24

CLAMP,ROD

838-77159-00-00

Unavailable

25

WINDSHIELD

(898-77210-00-00)

Unavailable

26

TRIM LOWER ASSEMBLY

(898-77220-00-00)

Unavailable

27

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

28

NUT, U

95617-05100-00

Unavailable
