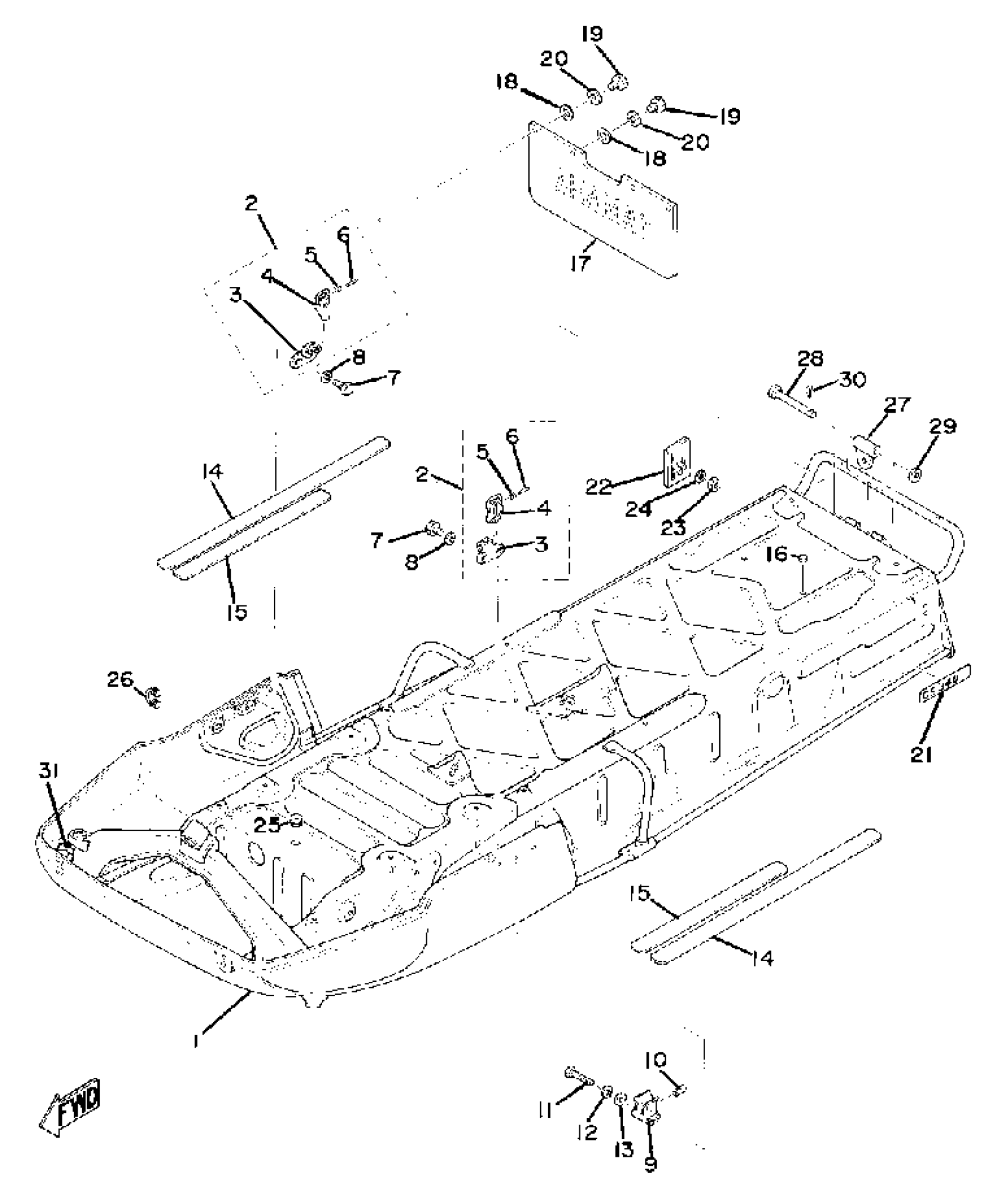

Yamaha GS340 1976 FRAME Diagram
#
1
FRAME
(899-21910-00-00)
Unavailable
2
LATCH ASSEMBLY
806-77170-00-00
Unavailable
3
BODY, LATCH 2
(806-77172-00-00)
Unavailable
4
. LEVER, LATCH 1
806-77173-00-00
Unavailable
5
. SPRING, TORSION
90508-10012-00
Unavailable
6
. PIN, SPECIAL SHAPE
90249-04068-00
Unavailable
7
BOLT, HEXAGON
97313-05016-00
Unavailable
8
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
9
CLAMP
90464-09006-00
Unavailable
10
STOPPER
821-77188-01-00
Unavailable
11
BOLT, HEXAGON
97017-06045-00
$3.76
12
WASHER, SPRING
92907-06100-00
$4.25
13
WASHER(6TA)
92907-06600-00
$2.72
14
COVER, FOOTREST
878-27413-00-00
Unavailable
15
COVER, FOOTREST
878-27423-00-00
Unavailable
16
COVER, NUT
(867-21969-00-00)
Unavailable
17
FLAP
865-77595-00-00
Unavailable
18
WASHER, PLATE (J10)
90201-06697-00
Unavailable
19
BOLT, HEXAGON
97017-06020-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
EMBLEM 4
(8A0-77354-00-00)
Unavailable
22
REFLECTOR, REAR 1
(821-85131-00-00)
Unavailable
23
NUT U (861)
90185-06040-00
Unavailable
24
WASHER, PLAIN (646)
92990-06600-00
Unavailable
25
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
26
BAND
(841-82591-00-00)
Unavailable
27
BRACKET, HITCH 1
802-77591-00-00
Unavailable
28
PIN, CLEVIS
(91701-08102-00)
Unavailable
29
.. WASHER, PLATE
92990-08600-00
Unavailable
30
PIN, COTTER
91490-25020-00
Unavailable
31
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
