- Partiron
- OEM Parts
- Yamaha
- snowmobile
- 1976
- GS340 1976
FLYWHEEL MAGNETO

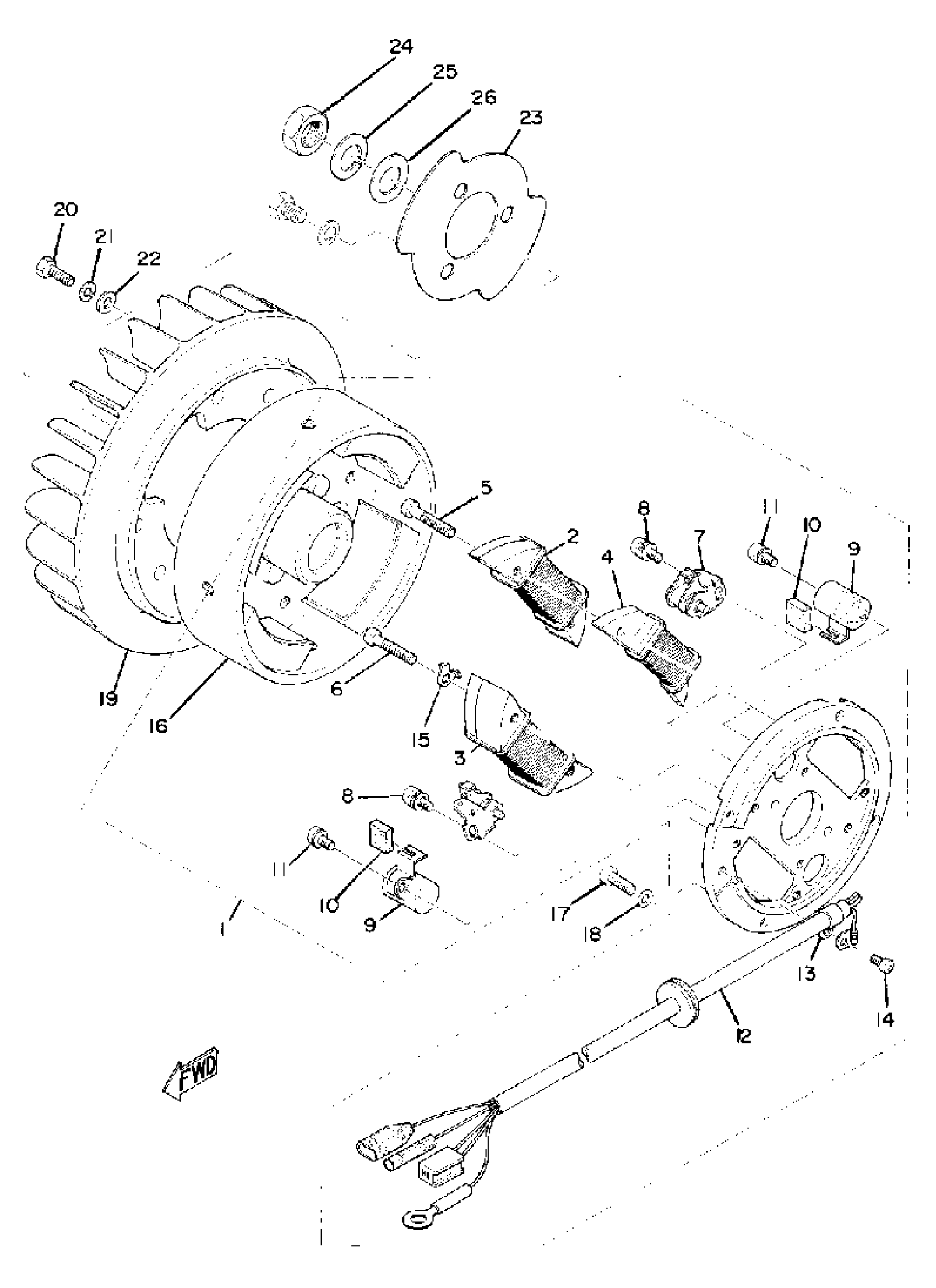

Yamaha GS340 1976 FLYWHEEL MAGNETO Diagram
#
Description
Price
1
FLYWHL MAGNETO ASSEMBLY
(8A0-81300-20-00)
Unavailable
2
. COIL, SOURCE
8A0-81312-20-00
Unavailable
3
COIL, LIGHTING 2
(8A0-81314-20-00)
Unavailable
4
COIL, LIGHTING 1
(8A0-81313-20-00)
Unavailable
5
SCREW, PAN
98507-05035-00
$8.49
6
SCREW, PAN HEAD
98517-05030-00
$10.49
7
. CONTACT BRKR ASSEMBLY
806-81321-20-00
Unavailable
8
SCREW, PAN HEAD
110-81346-21-00
$5.49
9
. CONDENSER 1
8A0-81325-20-00
Unavailable
10
. LUBRICATOR
116-81331-20-00
Unavailable
11
SCREW, PAN HEAD
110-81346-21-00
$5.49
12
LEAD WIRE ASSEMBLY
(8A0-81315-20-00)
Unavailable
13
CLAMP
(810-81328-20-00)
Unavailable
14
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
15
PLATE, TIMING
(812-81332-20-00)
Unavailable
16
ROTOR ASSEMBLY
(838-81350-20-00)
Unavailable
17
SCREW, PAN
98507-06014-00
Unavailable
18
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
19
FAN
838-12611-00-00
Unavailable
20
BOLT
90101-06127-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
WASHER, PLATE
90201-06M08-00
Unavailable
23
COVER, HOLE
(812-81362-00-00)
Unavailable
24
NUT
90170-16425-00
Unavailable
25
WASHER(JN5)
92907-16100-00
Unavailable
26
WASHER, PLATE (32N)
90201-163G6-00
Unavailable
