Description

Price

1

EXHAUST PIPE ASSEMBLY L

(846-14610-00-00)

Unavailable

2

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

3

BOLT (682)

97013-08025-00

$8.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

MUFFLER ASSEMBLY L

(859-14710-00-00)

Unavailable

6

SPRING, MUFFLER

821-14773-00-00

$18.49

7

BOLT

90109-08293-00

Unavailable

8

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

9

SPRING, MUFFLER

853-14773-02-00

Unavailable

10

SPACER

(90560-08065-00)

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

WASHER, PLATE

(90201-07080-00)

Unavailable

13

GASKET, MUFFLER

841-14714-00-00

Unavailable

14

SPRING, COMPRESSION

(90504-30004-00)

Unavailable

15

MUFFLER ASSEMBLY R

(860-14720-01-00)

Unavailable

16

PROTECTOR, MUFF 1

841-14718-00-00

Unavailable

17

STAY, MUFFLER 1

(860-14771-01-00)

Unavailable

18

BOLT 306258330000

90109-06018-00

Unavailable

19

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

20

WASHER, PLATE

90202-08085-00

Unavailable

21

BOLT(62E)

97013-08012-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

23

.. WASHER, PLATE

92990-08600-00

Unavailable

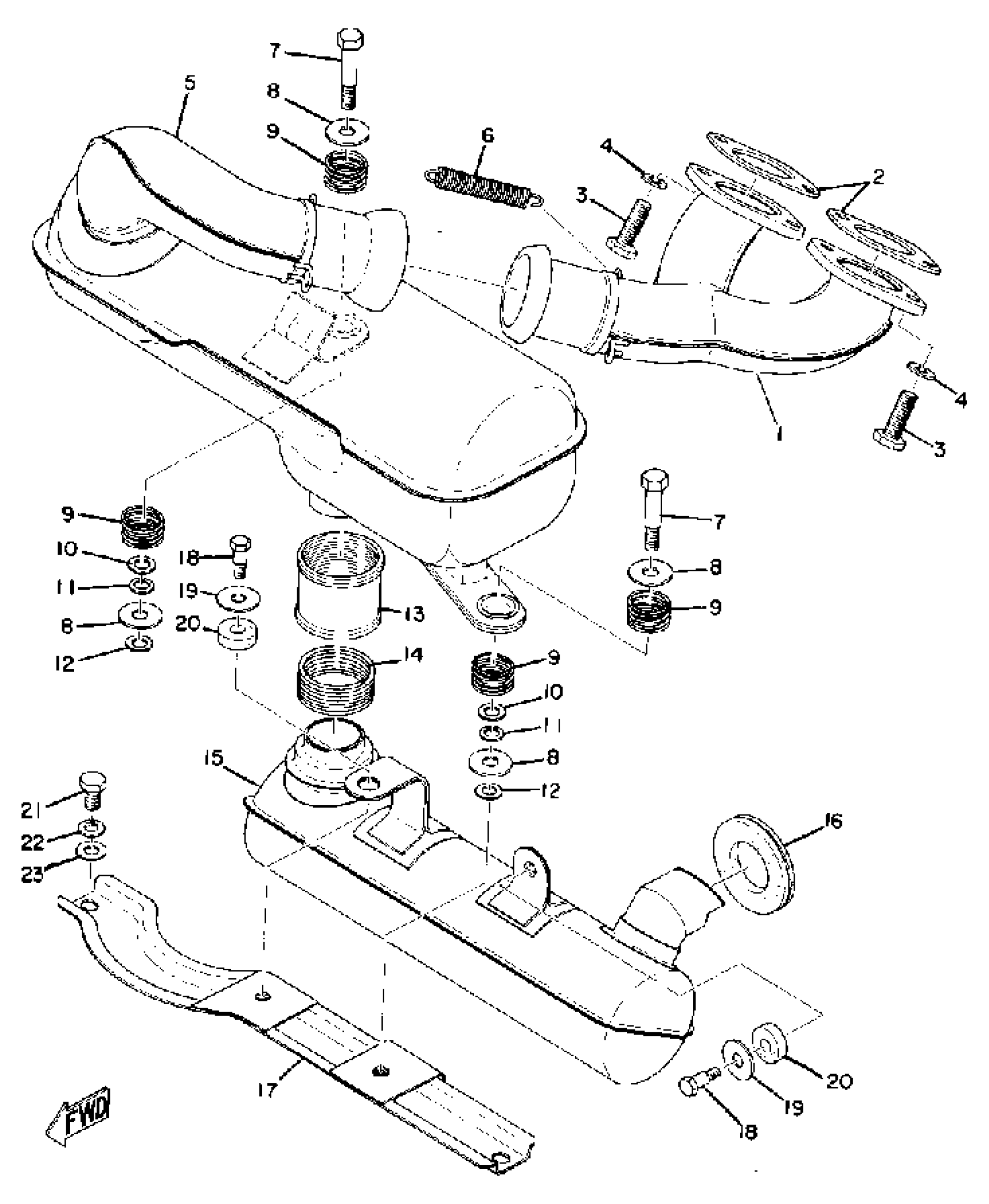

Yamaha GS340 1976 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY L

GASKET, EXHAUST PIPE

BOLT (682)

YBS67-8 WASHER, SPRING

MUFFLER ASSEMBLY L

SPRING, MUFFLER

BOLT

WASHER, PLATE(3BM)

SPRING, MUFFLER

SPACER

YBS67-8 WASHER, SPRING

WASHER, PLATE

GASKET, MUFFLER

SPRING, COMPRESSION

MUFFLER ASSEMBLY R

PROTECTOR, MUFF 1

STAY, MUFFLER 1

BOLT 306258330000

WASHER, PLATE (5J0)

WASHER, PLATE

BOLT(62E)

YBS67-8 WASHER, SPRING

.. WASHER, PLATE
