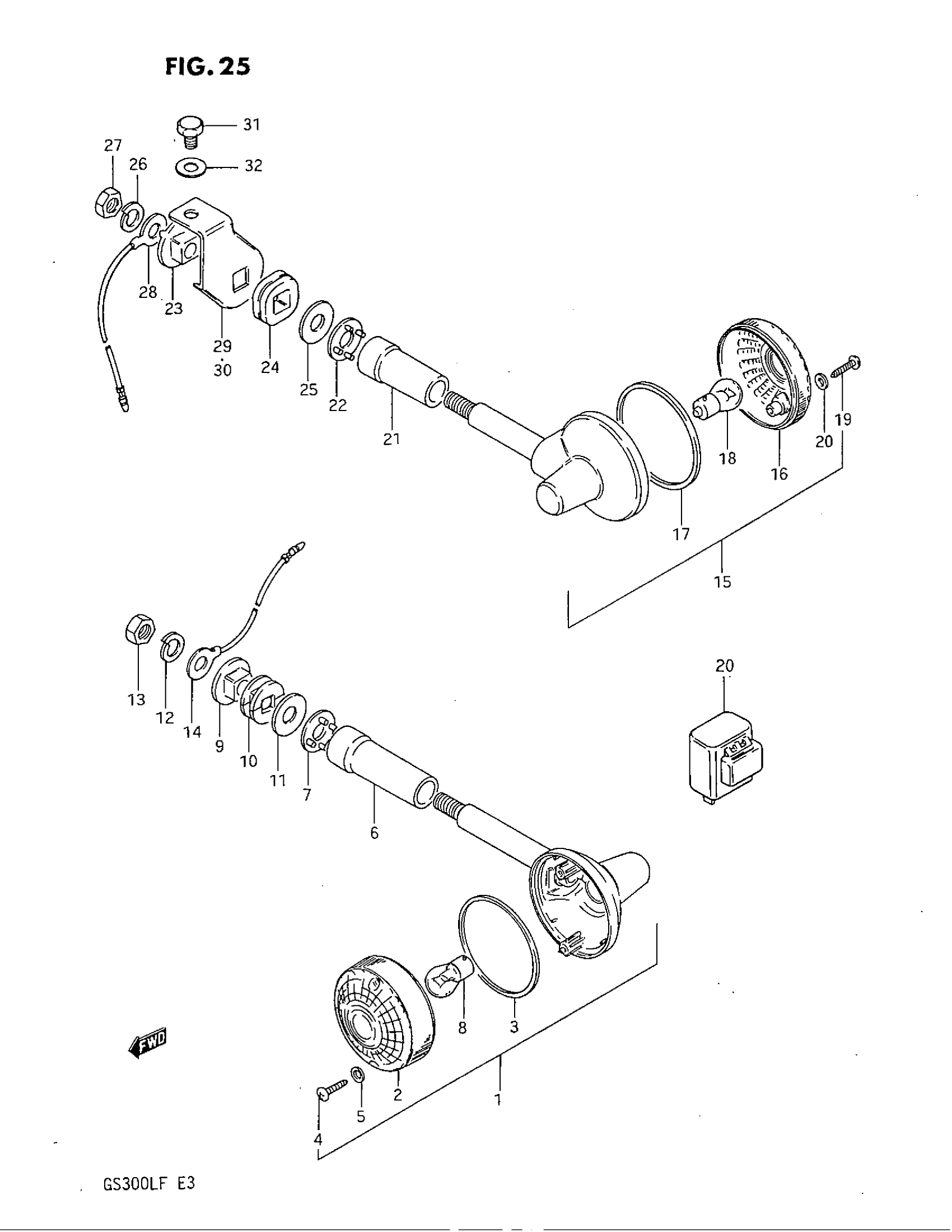

Suzuki GS300L (1985) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP, FRONT TURN SIGNAL | Includes Item(s) 2 - 7

35603-47230-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

SCREW This part replaces 03211-04208.

03211-04207

$1.49

5

GASKET

35627-43010

$2.28

6

COVER, STAY

35617-47230

Unavailable

7

CUSHION This part replaces 35665-47210.

35668-47290

Unavailable

8

BULB (12V,23W)

09471-12006

$3.98

9

SPACER

35695-32401

$4.52

10

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

11

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

12

LOCK WASHER This part replaces 08321-21106.

08321-0110A

$1.84

13

NUT This part replaces 08310-12106.

08310-0010A

$1.84

14

LEAD WIRE, EARTH

36660-33000

$4.52

15

LAMP, REAR TURN SIGNAL | Includes Item(s) 16 - 22

35603-45230

Unavailable

16

LENS

35612-28620

$8.98

17

GASKET

35613-28620

$4.55

18

BULB (12V,23W)

09471-12006

$3.98

19

SCREW This part replaces 03211-04208.

03211-04207

$1.49

20

GASKET

35627-43010

$2.28

21

COVER, STAY

35657-45230

Unavailable

22

CUSHION This part replaces 35665-47210.

35668-47290

Unavailable

23

SPACER

35695-32401

$4.52

24

CUSHION

09320-15004

$4.77

25

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

26

LOCK WASHER This part replaces 08321-21106.

08321-0110A

$1.84

27

NUT This part replaces 08310-12106.

08310-0010A

$1.84

28

LEAD WIRE, EARTH

36862-44000

$5.50

29

BRACKET, RH

35621-11900

Unavailable

30

BRACKET, LH

35641-11900

Unavailable

31

BOLT This part replaces 01107-08125.

01500-0812A

$2.28

32

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

33

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$80.15
