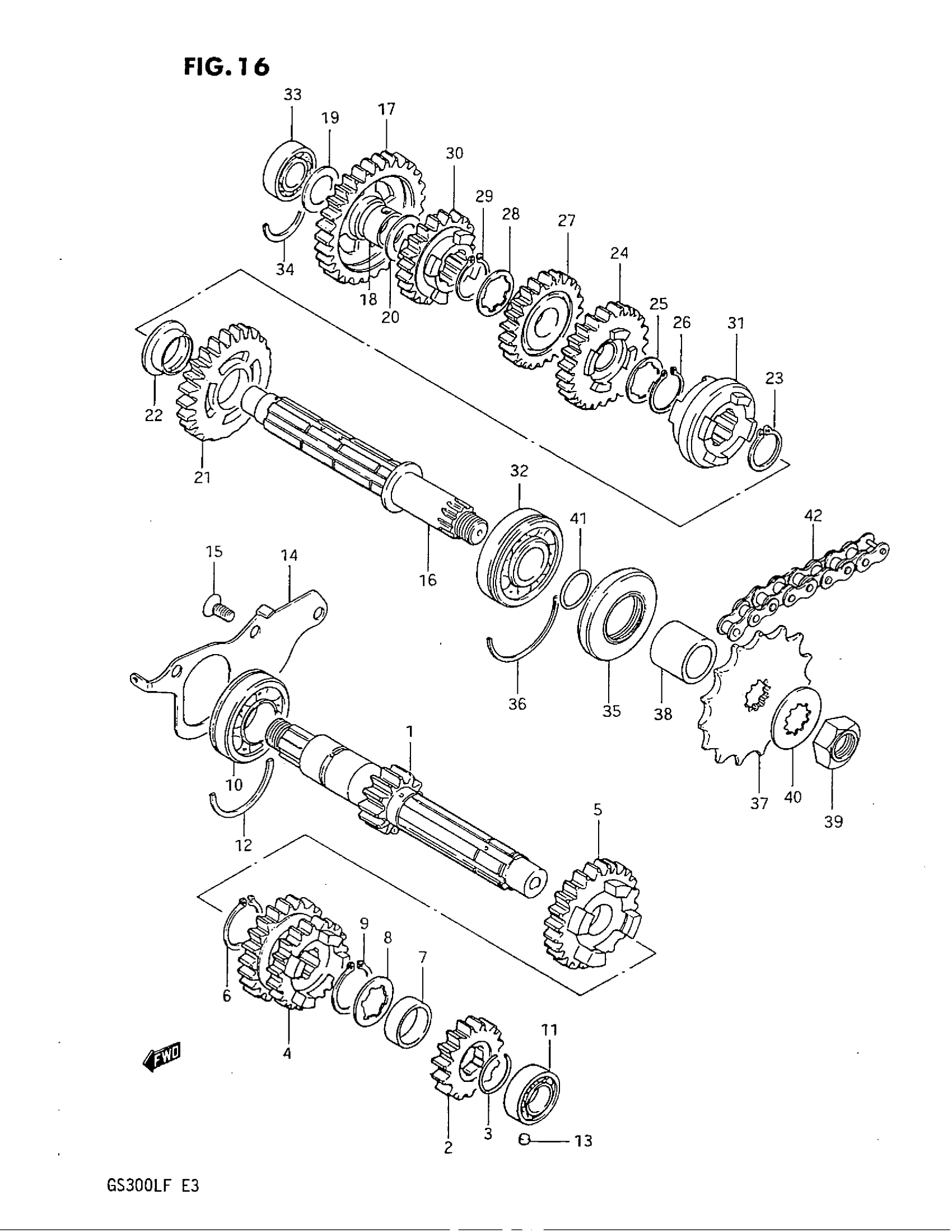

Suzuki GS300L (1985) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24121-11402

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-11300

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 09380-22007.

09380-22009

Unavailable

4

GEAR, 3/4 DRIVE (NT:19/21)

24231-11300

Unavailable

5

GEAR, 5TH DRIVE (NT:22)

24251-11300

Unavailable

6

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

7

SPACER (22X27X9.5)

09180-22025

Unavailable

8

WASHER

09167-22011

$3.23

9

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

10

BEARING, RH

08160-62050

Unavailable

11

BEARING, LH

09263-17015

Unavailable

12

C RING

09390-52002

Unavailable

13

PIN

04221-07129

$1.86

14

NO DESCRIPTION AVAILABLE This part replaces 24741-11400.

24741-11401

Unavailable

15

SCREW This part replaces 02122-06128.

02122-06127

$1.84

16

DRIVESHAFT

24131-11500

Unavailable

17

GEAR, 1ST DRIVEN (NT:30)

24311-11900

Unavailable

18

BUSH

09300-17007

Unavailable

19

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

20

WASHER (17X26X1) This part replaces 08211-17261.

09181-17167

$2.96

21

GEAR, 2ND DRIVEN (NT:26)

24321-11400

Unavailable

22

BUSH

09301-22002

Unavailable

23

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

24

GEAR, 3RD DRIVEN (NT:23)

24330-11900

Unavailable

25

WASHER

09167-22011

$3.23

26

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

27

GEAR, 4TH DRIVEN (NT:21)

24341-11300

Unavailable

28

WASHER

09167-22011

$3.23

29

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

30

GEAR, 5TH DRIVEN (NT:19)

24351-11300

Unavailable

31

WHEEL, SLIDING DOG

24421-11900

Unavailable

32

BEARING, LH

08160-63040

Unavailable

33

BEARING, RH

08123-62027

$18.57

34

RING

09390-35001

Unavailable

35

OIL SEAL

09283-28012

Unavailable

36

C RING

09390-52002

Unavailable

37

SPROCKET, ENGINE (NT:15)

27511-11301

Unavailable

38

SPACER (20X28X25.2)

09180-20083

Unavailable

39

NUT

09159-16006

Unavailable

40

LOCK WASHER

09167-20018

Unavailable

41

O RING

09280-20001

$1.65

42

CHAIN, DRIVE (520X108LE)

27600-11931

Unavailable
