Partiron

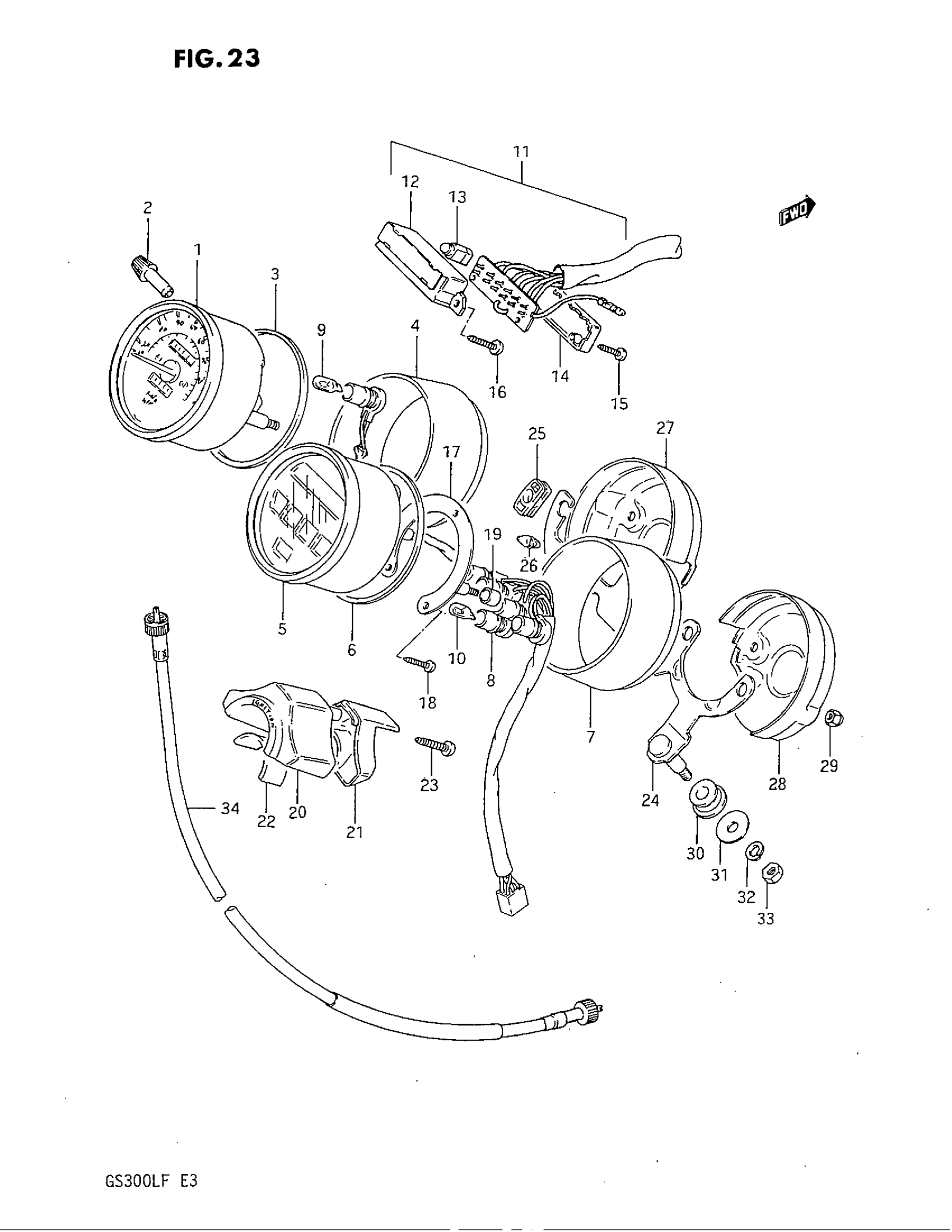

Suzuki GS300L (1985) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | Includes Item(s) 2

34110-11911

Unavailable

2

KNOB

34980-45020

$3.77

3

CUSHION

34189-45300

Unavailable

4

COVER, SPEEDOMETER

34151-45300

Unavailable

5

BOX, PILOT

36380-11911

Unavailable

6

CUSHION

34189-45300

Unavailable

7

COVER, PILOT BOX

34251-45300

Unavailable

8

SOCKET

36325-11911

Unavailable

9

BULB (12V,1.7W)

09471-12077

$3.55

10

BULB (12V,3.4W)

09471-12028

$1.99

11

INDICATOR, GEAR POSITION | Includes Item(s) 12 - 15 This part replaces 36450-34561.

36450-49401

Unavailable

12

CASE, GEAR INDICATOR

36452-49401

Unavailable

13

BULB

09471-12078

Unavailable

14

COVER

36454-45100

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

16

SCREW This part replaces 36456-33220.

35625-01A00

Unavailable

17

BRACKET, PILOT BOX

34955-11910

Unavailable

18

SCREW

03242-04169

Unavailable

19

SPACER

36388-11910

Unavailable

20

BOX, IGNITION SWITCH

36382-11910

Unavailable

21

COVER

36383-11910

Unavailable

22

SEAL

34993-47000

Unavailable

23

SCREW

03241-04255

Unavailable

24

BRACKET

34950-11910

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 34189-44310.

34189-44311

Unavailable

26

CUSHION

34191-44310

Unavailable

27

ORNAMENT, SPEEDOMETER

34193-45300

Unavailable

28

ORNAMENT, PILOT BOX

34293-11910

Unavailable

29

NUT This part replaces 08313-11057.

08313-1005A

$1.93

30

CUSHION

34956-31001

$4.37

31

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

32

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

33

NUT This part replaces 08310-11085.

08310-0008A

$1.84

34

CABLE ASSY,SPEE This part replaces 34910-11900.

34910-09D10

$46.45
