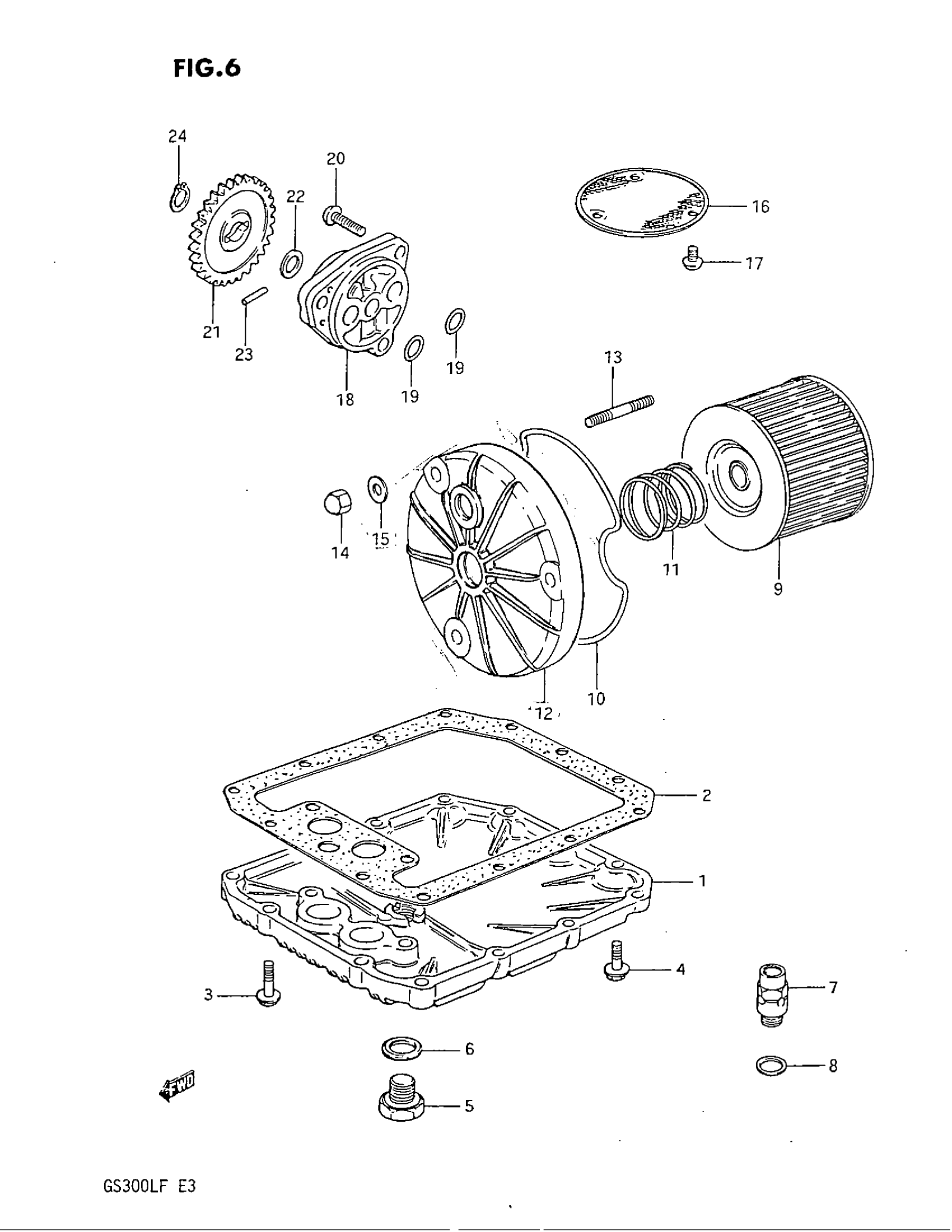

Suzuki GS300L (1985) OIL FILTER - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL This part replaces 11511-11410.

11511-11400

Unavailable

2

GASKET,OIL PAN( This part replaces 11489-11400.

11489-11400-H17

Unavailable

3

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

4

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

5

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

6

GASKET

09168-14004

$1.83

7

VALVE ASSY, OIL RELIEF This part replaces 16440-33300.

16440-11D00

$59.07

8

WASHER

08212-14181

Unavailable

9

FILTER, ENGINE OIL

16510-45040

$5.96

10

O RING

16518-45000

$5.70

11

SPRING

09440-32004

$2.92

12

CAP, ENGINE OIL FILTER This part replaces 16512-44410.

16512-45D00

$56.93

13

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

14

NUT This part replaces 08313-11065.

08313-1006A

$1.84

15

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

16

STRAINER, ENGINE OIL

16520-11400

Unavailable

17

SCREW This part replaces 02112-06128.

02112-06127

$1.84

18

PUMP, ENGINE OIL

16400-44100

$198.45

19

O RING

09280-13004

$2.17

20

SCREW This part replaces 02112-06258.

02112-06257

$1.78

21

GEAR, DRIVEN (NT:25)

16331-11400

Unavailable

22

WASHER

08221-10185

$2.15

23

PIN

09261-04009

$1.56

24

CIRCLIP

08331-31109

$1.78
