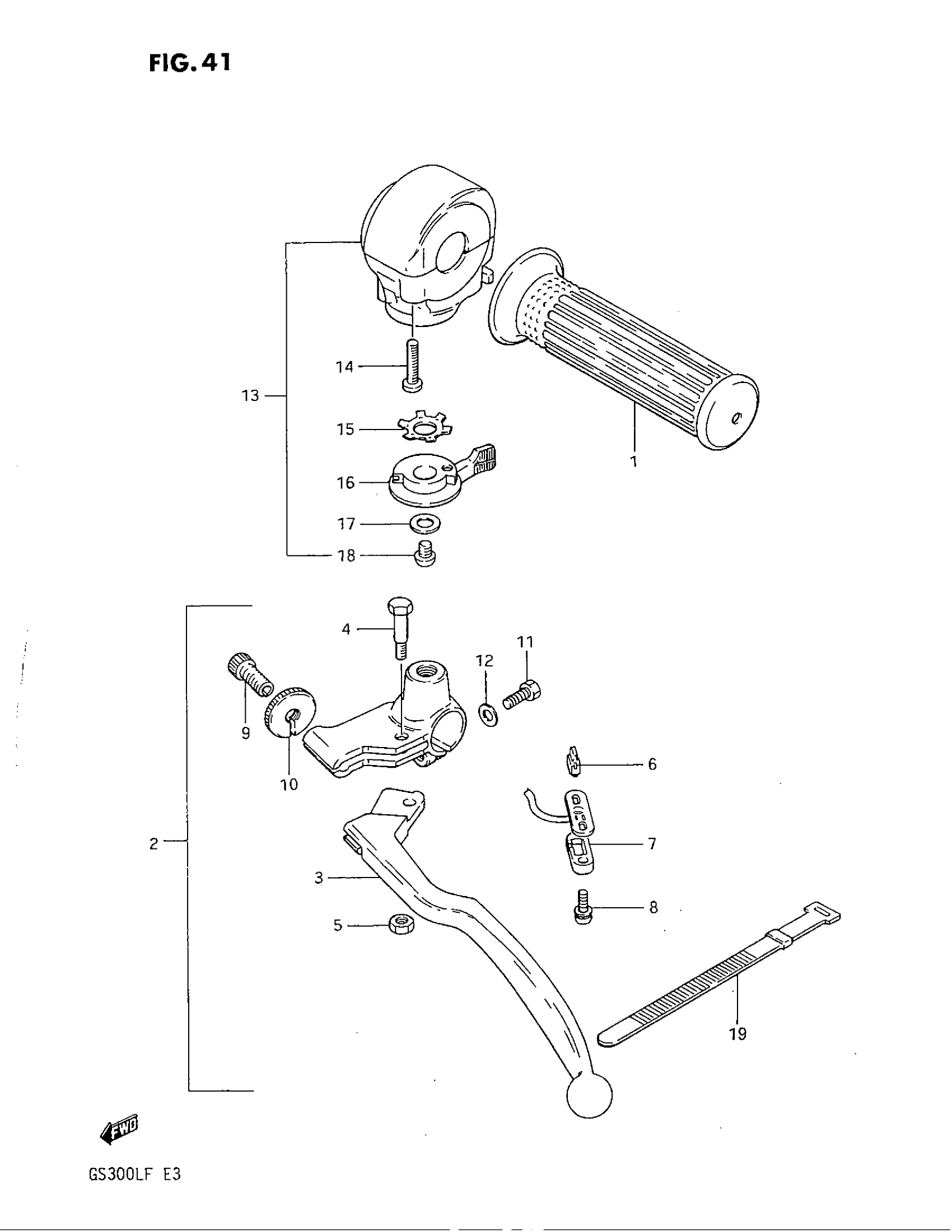

Suzuki GS300L (1985) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP This part replaces 57211-45030.

57211-24201

Unavailable

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 12 This part replaces 57500-49113.

57500-49301

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT

57431-49110

$6.31

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

6

HOLDER

57465-18601

$4.34

7

COVER

57481-33010

$5.84

8

SCREW

57484-49110

$1.98

9

ADJUSTER, CABLE

57441-11010

$5.62

10

NUT

57442-11010

$2.79

11

BOLT

01204-06204

$2.72

12

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

13

SWIFTCH ASSY, HANDLE LH | Includes Item(s) 14 - 18

37400-09311

Unavailable

14

SCREW This part replaces 02112-05258.

02112-05257

$1.49

15

WASHER

37573-45110

Unavailable

16

LEVER, STARTER

37571-45110

Unavailable

17

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

18

SCREW This part replaces 02112-06088.

02112-06087

$1.49

19

CLAMP

09407-12402

$3.04
