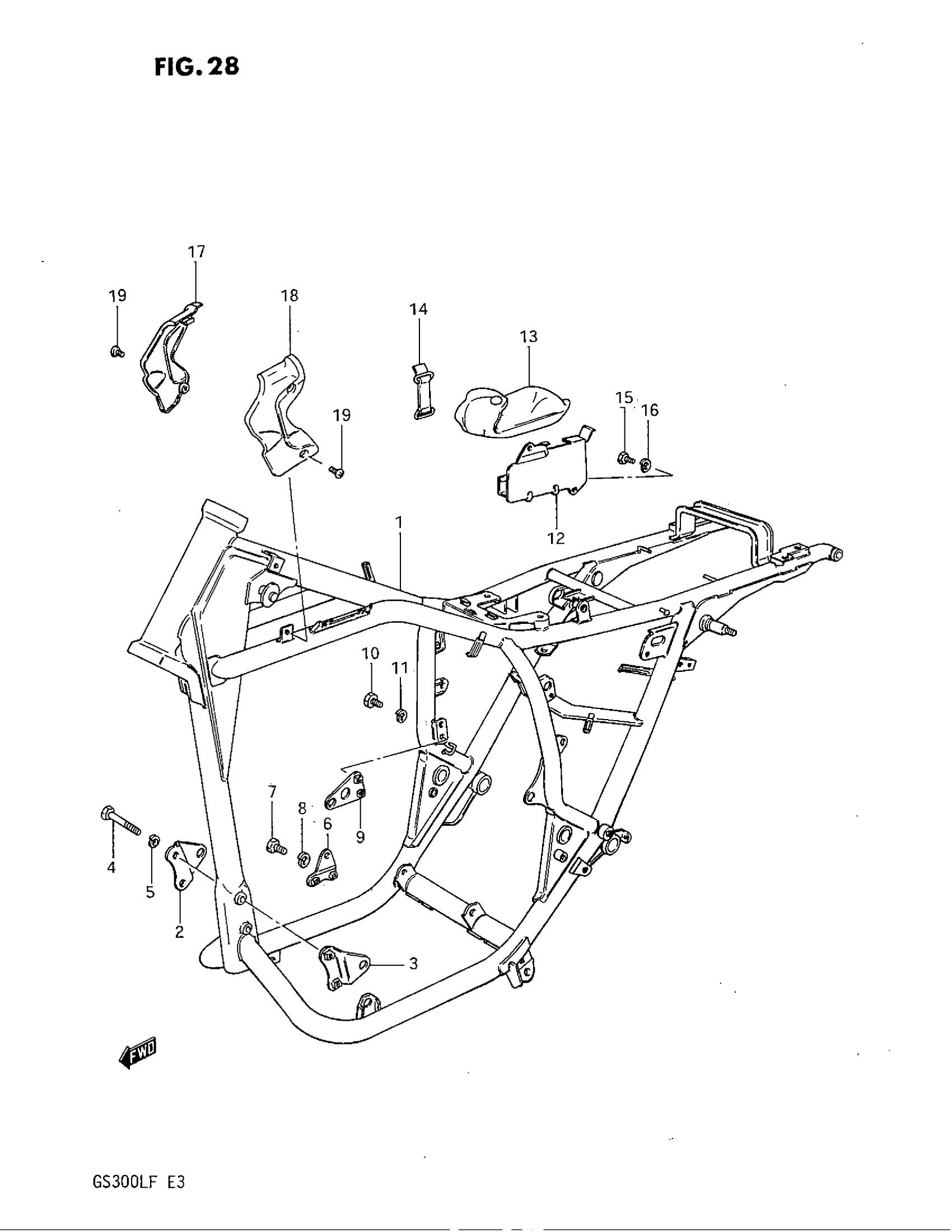

Suzuki GS300L (1985) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-11910-019.

41100-11911-019

Unavailable

2

PLATE, NO.1 RH (BLACK)

41991-11500-019

Unavailable

3

PLATE, NO.1 LH (BLACK)

41920-11500-019

Unavailable

4

BOLT This part replaces 01107-08605.

01500-0860B

$3.49

5

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

6

PLATE, NO.2 RH (BLACK)

41920-44110-019

Unavailable

7

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

8

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

9

PLATE, NO.4 RH (BLACK)

41970-11500-019

Unavailable

10

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

11

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

12

HOLDER, TOOL This part replaces 47430-44400.

47430-44401

Unavailable

13

TOOL SET This part replaces 09800-06800.

09800-06801

Unavailable

14

BAND This part replaces 09462-00072.

09462-00094

$3.16

15

BOLT This part replaces 01107-06108.

01500-06107

$2.06

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

COVER, FRAME HEAD RH

51876-11900

Unavailable

18

COVER, FRAME HEAD LH

51886-11900

Unavailable

19

SCREW This part replaces 02142-05105.

02142-0510B

$1.78
