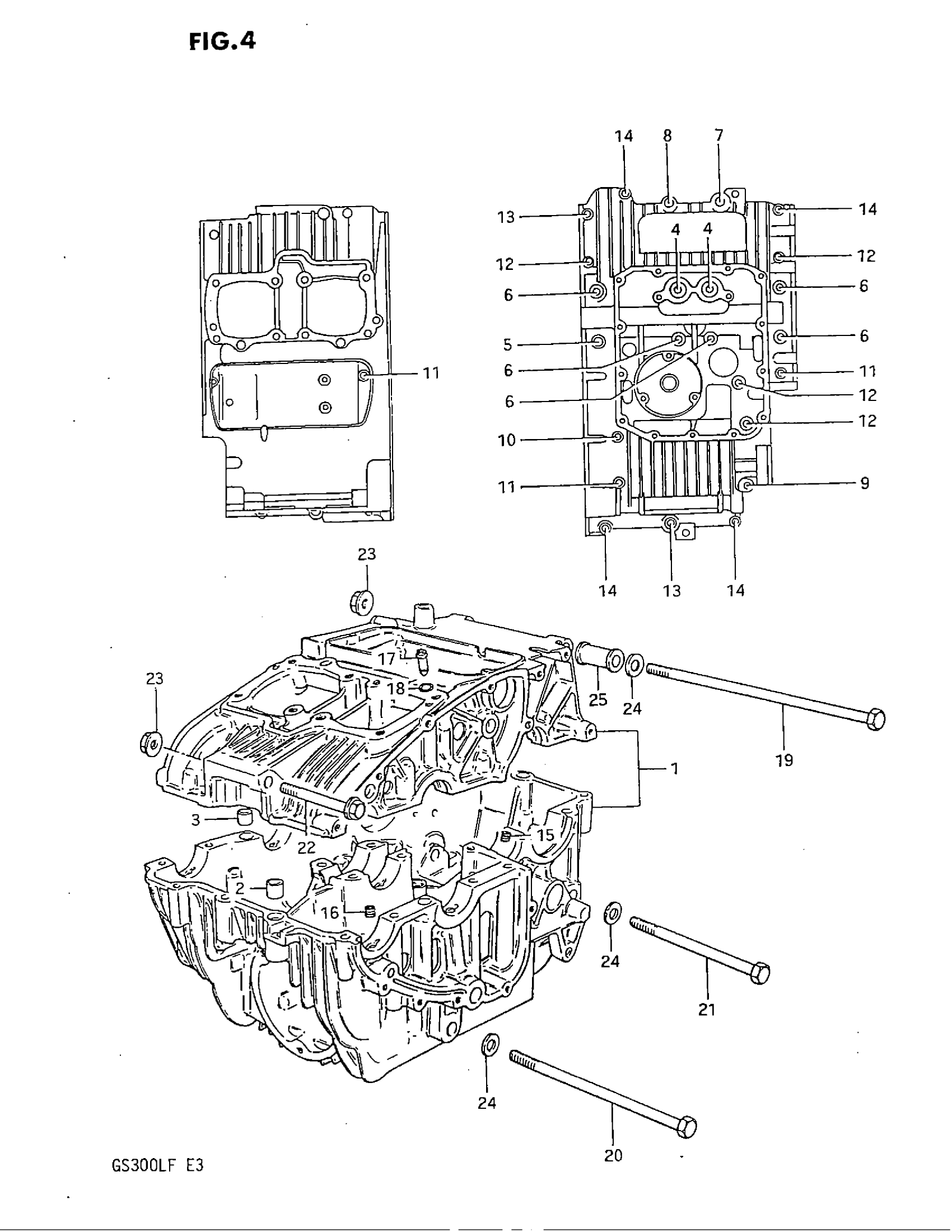

Suzuki GS300L (1985) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY | Includes Item(s) 2 - 18

11300-11880

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT This part replaces 07110-08706.

07130-0870B

$5.37

5

BOLT (8X20) This part replaces 09103-08102.

09103-08505

$3.58

6

BOLT (8X115)

09103-08098

$3.29

7

BOLT This part replaces 01517-08655.

01550-0865A

$3.51

8

BOLT This part replaces 01517-08504.

01550-0850B

$4.17

9

BOLT This part replaces 01517-08408.

01550-08407

$3.42

10

BOLT (6X125)

09103-06033

$3.91

11

BOLT (6X105)

09103-06067

$2.48

12

BOLT This part replaces 01517-06905.

01550-0690B

Unavailable

13

BOLT This part replaces 01517-06605.

01550-0660A

$3.05

14

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

15

JET,AIR (#100)

09493-20012

$19.48

16

JET, OIL GALLERY SHAFT

09493-40001

Unavailable

17

JET, OIL GALLERY CYLINDER

09493-40002

Unavailable

18

O RING

09280-03003

$1.91

19

BOLT This part replaces 09100-10139.

09100-10034

Unavailable

20

BOLT (10x210) This part replaces 09100-10145.

09100-10033

Unavailable

21

BOLT This part replaces 09100-10136.

41189-17X00

Unavailable

22

BOLT (10X90)

01517-10905

Unavailable

23

NUT This part replaces 08319-31105.

08319-3110A

$2.73

24

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

25

SPACER, ENGINE MOUNTING This part replaces 11610-11410.

11610-44100

Unavailable
