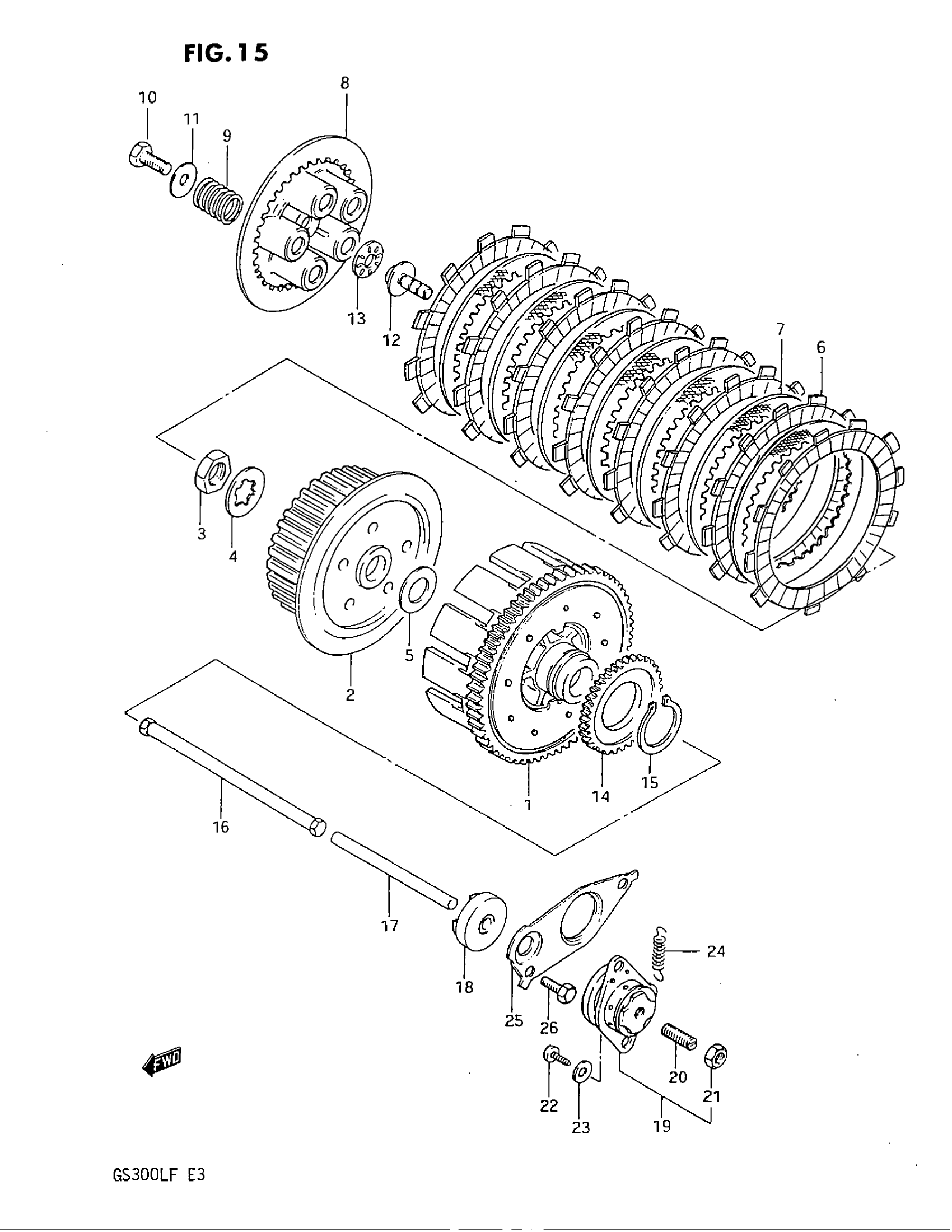

Suzuki GS300L (1985) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:75)

21200-11502

Unavailable

2

HUB, SLEEVE

21411-11400

Unavailable

3

NUT This part replaces 09140-16001.

09140-16005

$3.75

4

WASHER

09169-16003

$2.45

5

WASHER

08211-20352

Unavailable

6

PLATE, DRIVE This part replaces 21441-11900.

21441-22A01

$14.73

7

PLATE, DRIVEN This part replaces 21451-11900.

21451-01B40

$8.40

8

DISC, PRESSURE This part replaces 21462-46901.

21462-02B41

$28.95

9

SPRING

09440-15014

$3.37

10

BOLT

09100-05002

$1.49

11

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

12

PIECE, CLUTCH PUSH This part replaces 23121-11400.

23121-39101

Unavailable

13

BEARING

09263-10002

$10.19

14

GEAR, OIL PUMP DRIVE (NT:41)

16321-11400

Unavailable

15

CLIP This part replaces 08331-31389.

08331-31383

$3.42

16

ROD, PUSH RH

23110-11501

Unavailable

17

ROD, PUSH LH This part replaces 23111-44110.

23111-05A01

$13.75

18

OIL SEAL

09285-06012

Unavailable

19

SCREW ASSY, RELEASE | Includes Item(s) 20 - 21

23200-44101

Unavailable

20

SCREW

09134-06010

$3.12

21

.NUT This part replaces 08310-22068.

08310-00067

$2.13

22

SCREW This part replaces 03111-06168.

03111-0616B

$1.93

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

SPRING

09443-08001

$2.92

25

HOLDER, OIL SEAL

23117-11401

Unavailable

26

BOLT This part replaces 01107-06128.

01500-06127

$1.97
