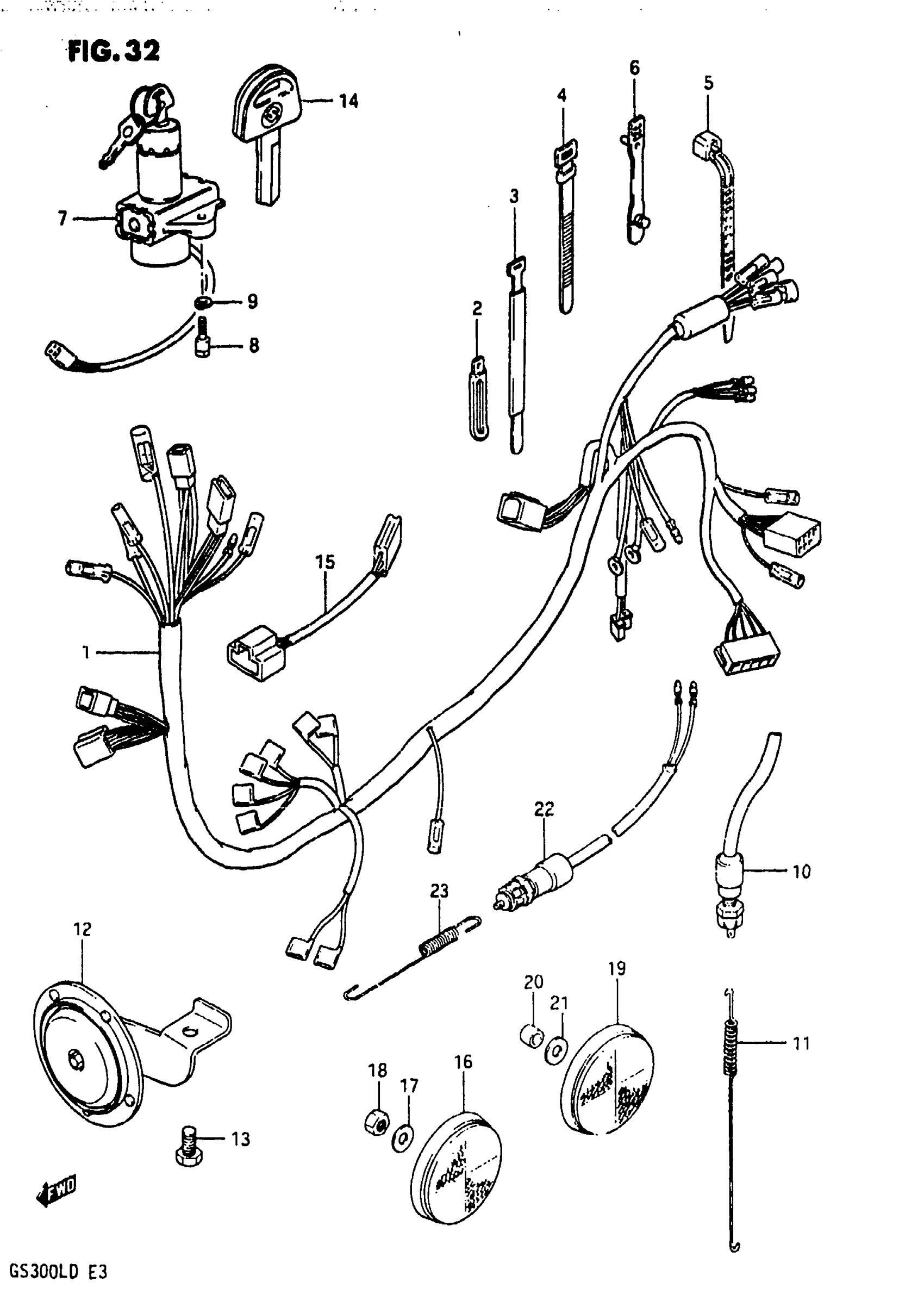

Find the part on the Wiring Harness diagram for your 1983 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS300L Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 36610-11900.

36610-11901

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 36610-11910.

36610-11911

1
Out of stock

2

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

1
Out of stock

3

CLAMP | MODEL Z This part replaces 09407-18301.

09407-18302

2
Out of stock

4

CLAMP (L:120) | MODEL Z

09407-12402

1
Out of stock

5

CLAMP (L:95) | MODEL D

09407-11401

1
Out of stock

5

CLAMP (L:125) | MODEL D

09407-14403

2
Out of stock

6

CLIP

09407-05403

2
Out of stock

7

SWITCH ASSY, IGNITION | Includes Item(s) 8 - 9

37110-45301

1
Out of stock

8

BOLT This part replaces 37152-47010.

07130-0616B

2
Out of stock

9

2

$2.28

In stock

10

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

1
Out of stock

11

SPRING This part replaces 09443-06035.

09443-06035-XC0

1
Out of stock

12

HORN

38500-11590

1
Out of stock

13

BOLT This part replaces 01107-08128.

01500-08127

1
Out of stock

14

KEY, BLANK | OPT

37146-47010

1
Out of stock

15

LEAD WIRE, HEADLAMP This part replaces 36852-34000.

36853-30500

1
Out of stock

16

REFLEX REFLECTOR, FRONT SIDE | MODEL Z

35950-49080

2
Out of stock

17

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

18

NUT This part replaces 08310-11058.

08310-00057

2
Out of stock

19

REFLEX REFLECTOR, FRONT SIDE | MODEL D

35950-44930

2
Out of stock

20

SPACER | MODEL D This part replaces 09180-05009.

09180-05053

2
Out of stock

21

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

22

SWITCH, PROP STAND WARNING | MODEL D

37840-34500

1
Out of stock

23

SPRING | MODEL D This part replaces 09443-06030.

09443-06048-XC0

1
Out of stock
