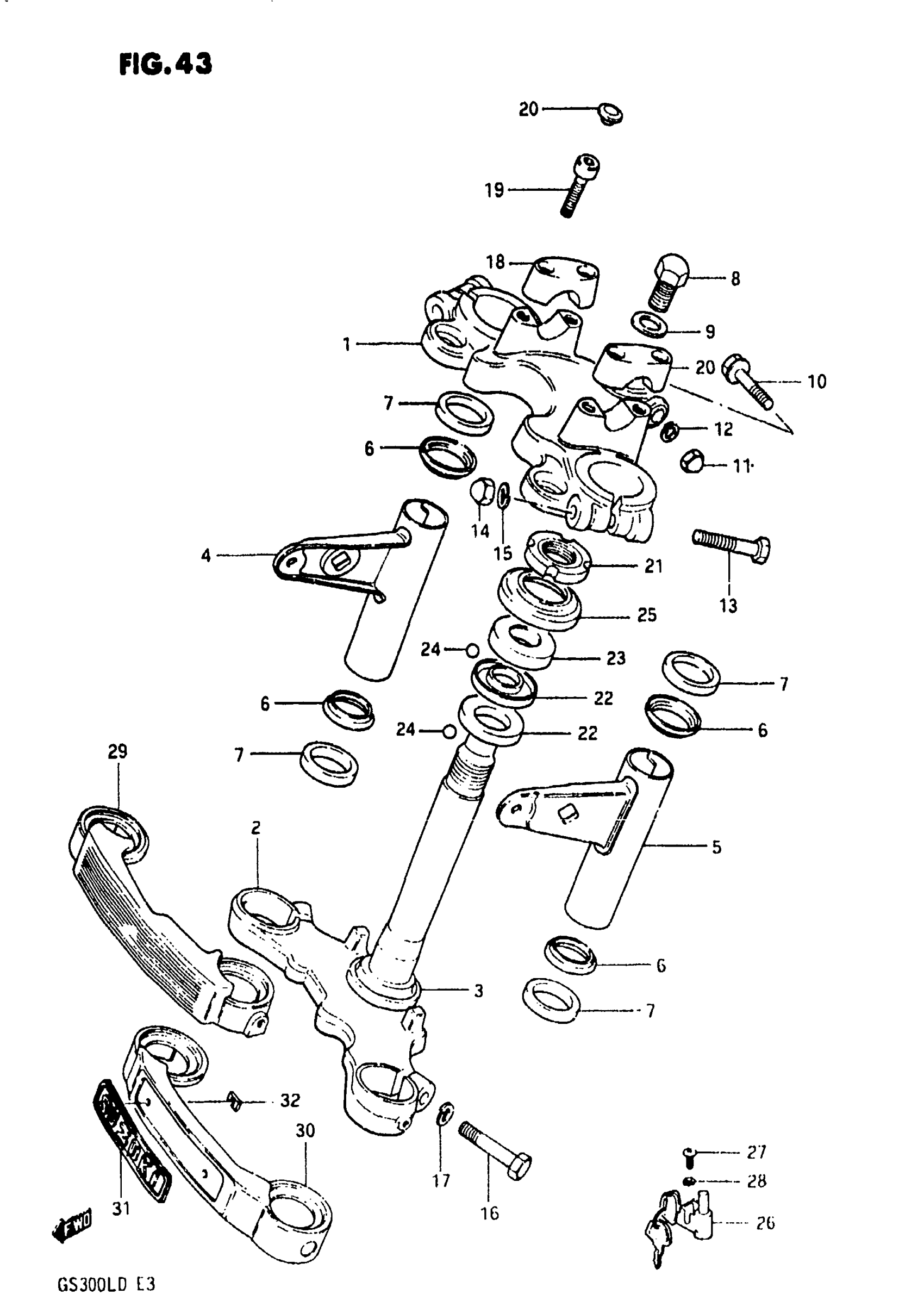

Suzuki GS300L (1983) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING (BLACK)

51311-44100-291

Unavailable

2

STEERING, STEM | Includes Item(s) 3

51410-11430

Unavailable

3

RACE, STEERING OUTER LOWER

51621-33001

$16.25

4

BRACKET, HEAD LAMP RH

51530-11900

Unavailable

5

BRACKET, HEAD LAMP LH

51540-11900

Unavailable

6

CAP

51555-44100

Unavailable

7

CUSHION

51556-44100

Unavailable

8

BOLT

09104-12013

$4.11

9

WASHER (12.5X26X1.6) This part replaces 09160-12056.

09160-12089

$1.97

10

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

11

NUT This part replaces 08313-11085.

08313-1008B

$2.80

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

BOLT This part replaces 01517-10558.

01550-10557

$3.91

14

NUT

09145-10002

Unavailable

15

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

16

BOLT This part replaces 01107-10408.

01500-10407

$3.55

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

HOLDER, HANDLE (BLACK)

56211-34300-291

Unavailable

19

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

20

CAP

09250-06004

$1.49

21

NUT, STEERING STEM

51631-28000

$17.37

22

RACE, STEERING INNER

51611-33002

$13.81

23

RACE, STEERING OUTER UPPER

51621-30001

Unavailable

24

STEEL BALL

06111-08003

$1.49

25

DUST SEAL

51643-30000

Unavailable

26

LOCK ASSY, STEERING

51900-33811

Unavailable

27

SCREW This part replaces 02112-05258.

02112-05257

$1.49

28

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

29

COVER, FRONT FORK | MODEL Z This part replaces 51871-44400.

51871-44401

Unavailable

30

COVER, FRONT FORK | MODEL D

51871-44210

Unavailable

31

EMBLEM | MODEL D

68211-44210

Unavailable

32

NUT | MODEL D

09148-03002

$2.15
