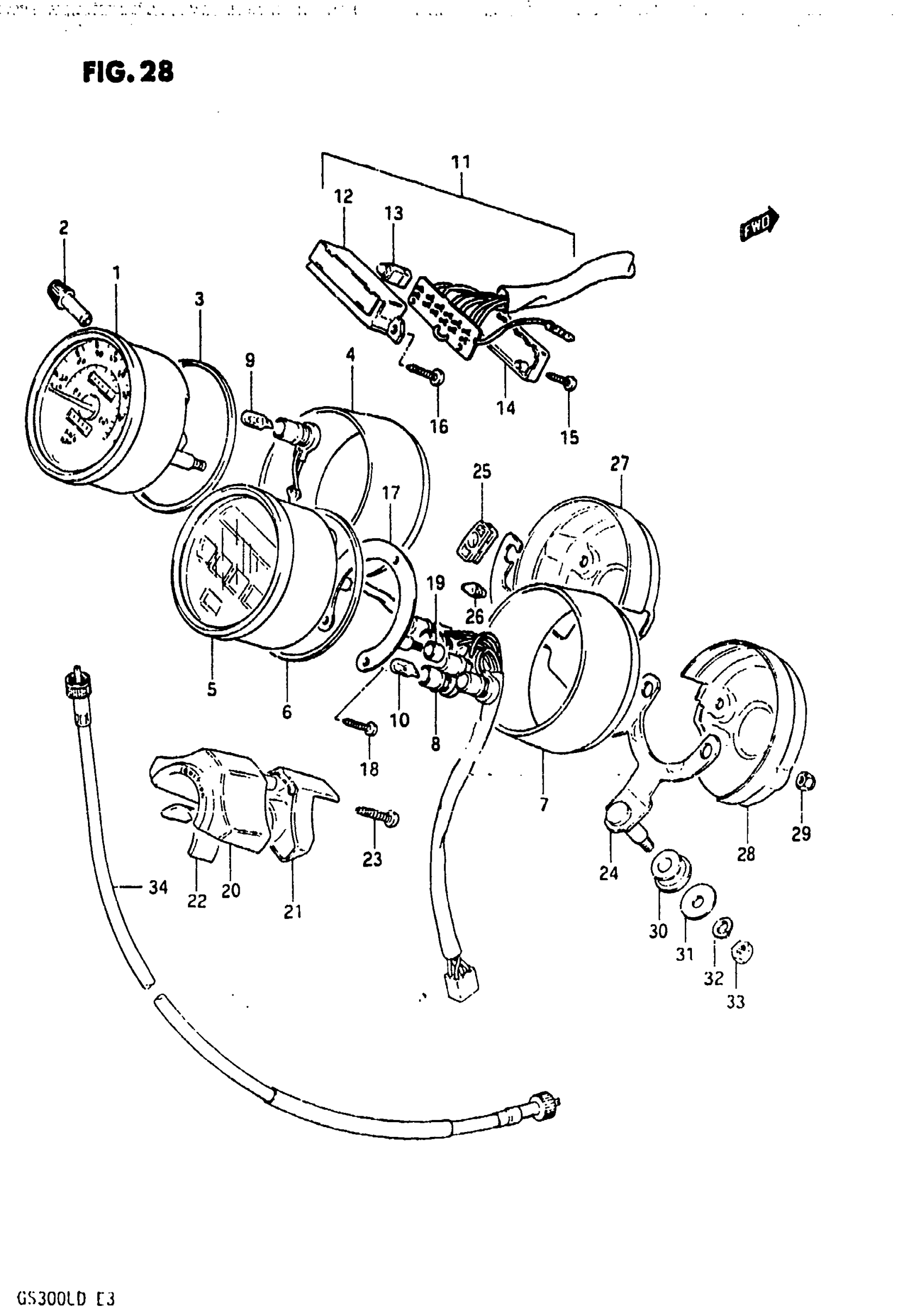

Suzuki GS300L (1983) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL Z This part replaces 34110-11910.

34110-11911

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL D; Includes Item(s) 2

34110-11911

Unavailable

2

KNOB

34980-45020

$3.77

3

CUSHION

34189-45300

Unavailable

4

COVER, SPEEDOMETER

34151-45300

Unavailable

5

BOX, PILOT | MODEL Z

36380-11910

Unavailable

5

BOX, PILOT | MODEL D

36380-11911

Unavailable

6

CUSHION

34189-45300

Unavailable

7

COVER, PILOT BOX

34251-45300

Unavailable

8

SOCKET | MODEL Z

36325-11910

Unavailable

8

SOCKET | MODEL D

36325-11911

Unavailable

9

BULB (12V, 1.7W)

09471-12077

$3.55

10

BULB (12V, 3.4W)

09471-12028

$1.99

11

INDICATOR, GEAR POSITION | MODEL Z This part replaces 36450-44100.

36450-47751

Unavailable

11

INDICATOR, GEAR POSITION | MODEL D; Includes Item(s) 12 - 15 This part replaces 36450-34561.

36450-49401

Unavailable

12

CASE, GEAR INDICATOR | MODEL Z

36452-45100

Unavailable

12

CASE, GEAR INDICATOR | MODEL D

36452-49401

Unavailable

13

BULB

09471-12071

$7.20

14

COVER

36454-45100

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

16

SCREW This part replaces 36456-33220.

35625-01A00

Unavailable

17

BRACKET PILOT BOX

34955-11910

Unavailable

18

SCREW This part replaces 03241-04168.

03242-04169

Unavailable

19

SPACER

36388-11910

Unavailable

20

BOX, IGNITION SWITCH

36382-11910

Unavailable

21

COVER

36383-11910

Unavailable

22

SEAL

34993-47000

Unavailable

23

SCREW

03241-04255

Unavailable

24

BRACKET

34950-11910

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 34189-44310.

34189-44311

Unavailable

26

CUSHION

34191-44310

Unavailable

27

ORNAMENT, SPEEDOMETER

34193-45300

Unavailable

28

ORNAMENT, PILOT BOX

34293-11910

Unavailable

29

NUT This part replaces 08313-11057.

08313-1005A

$1.93

23

SCREW

03241-04255

Unavailable

30

CUSHION

34956-31001

$4.37

31

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

NUT This part replaces 08310-12088.

08310-00087

$2.13

34

CABLE ASSY,SPEE This part replaces 34910-11900.

34910-09D10

$46.45
